Seat Belt Tensioner: Testing and Inspection

INSPECTION

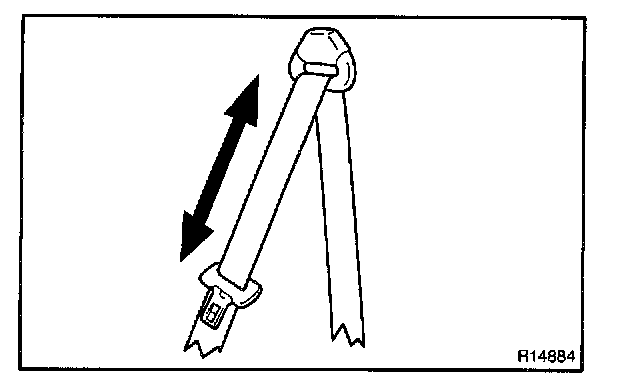

1. INSPECT SEAT BELT PRETENSIONER ACTIVATION
Replace the seat belt if the seat belt cannot be drawn out or does not retract.

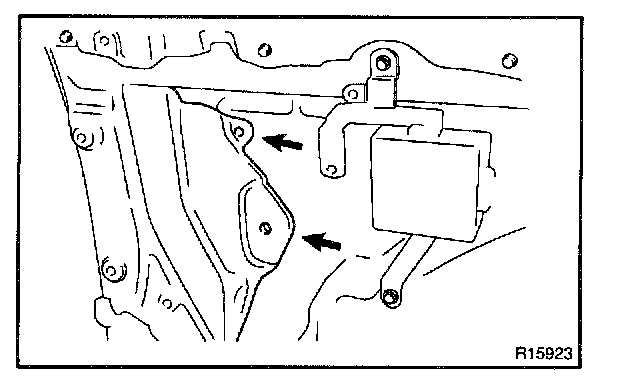

2. INSPECT SEAT BELT PRETENSIONER MOUNT
Remove the seat belt pretensioner and check for deformation of the mount. If you find any deformation, repair the mount.
