SRS Warning Light Circuit Malfunction (Not On, Ign Sw ACC/ON)

Does Not Light Up, When Ignition Switch Is Turned to ACC or ON

CIRCUIT DESCRIPTION
The SRS warning light is located on the combination meter.
When the SRS is normal, the SRS warning light lights up for approx. 6 seconds after the ignition switch is turned from LOCK position to ACC or ON position, and then turns OFF automatically.
If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormality. When terminals Tc and E1 of the DLC1 are connected, the DTC is displayed by blinking of the SRS warning light.

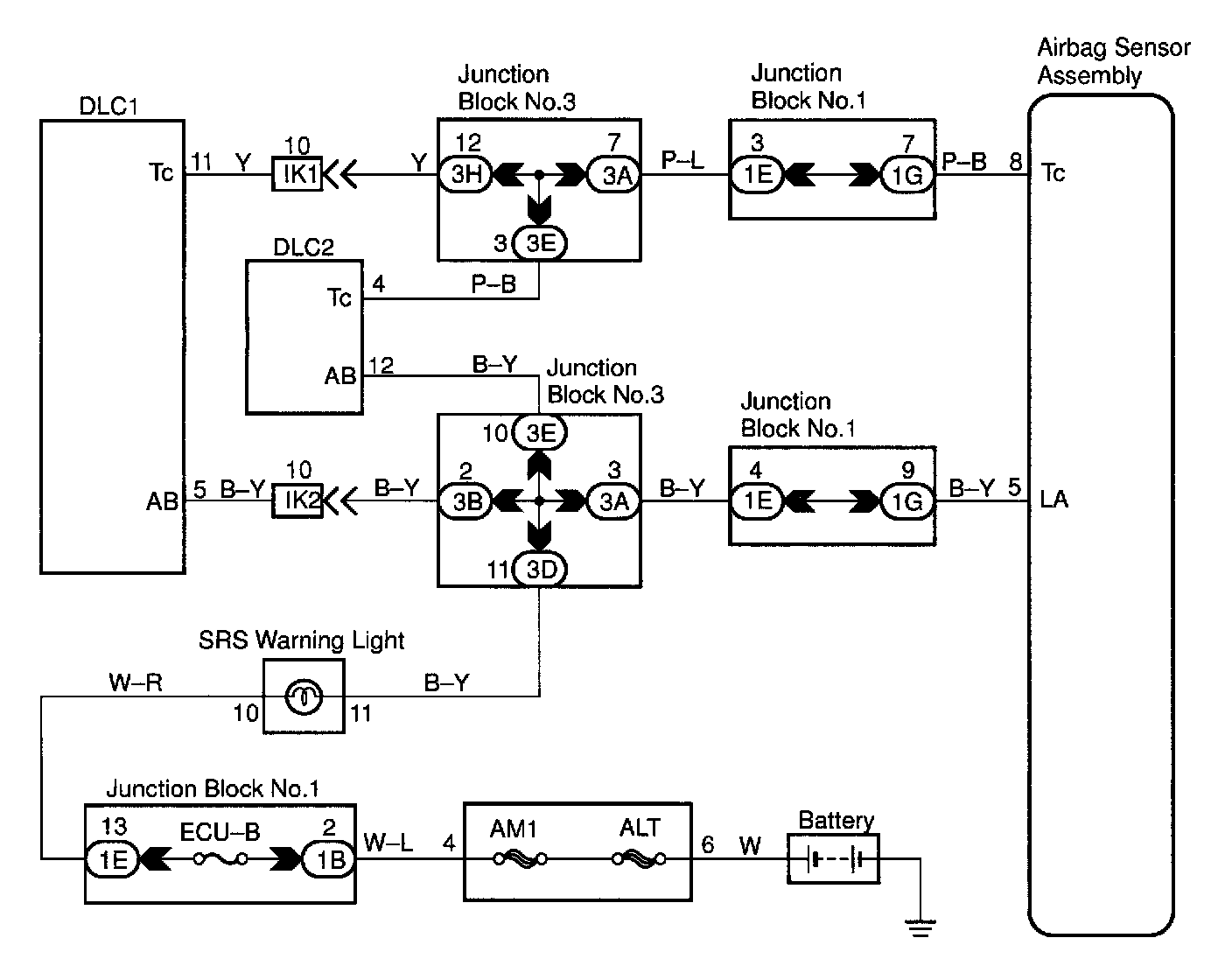

WIRING DIAGRAM

Step 1:

Step 2:

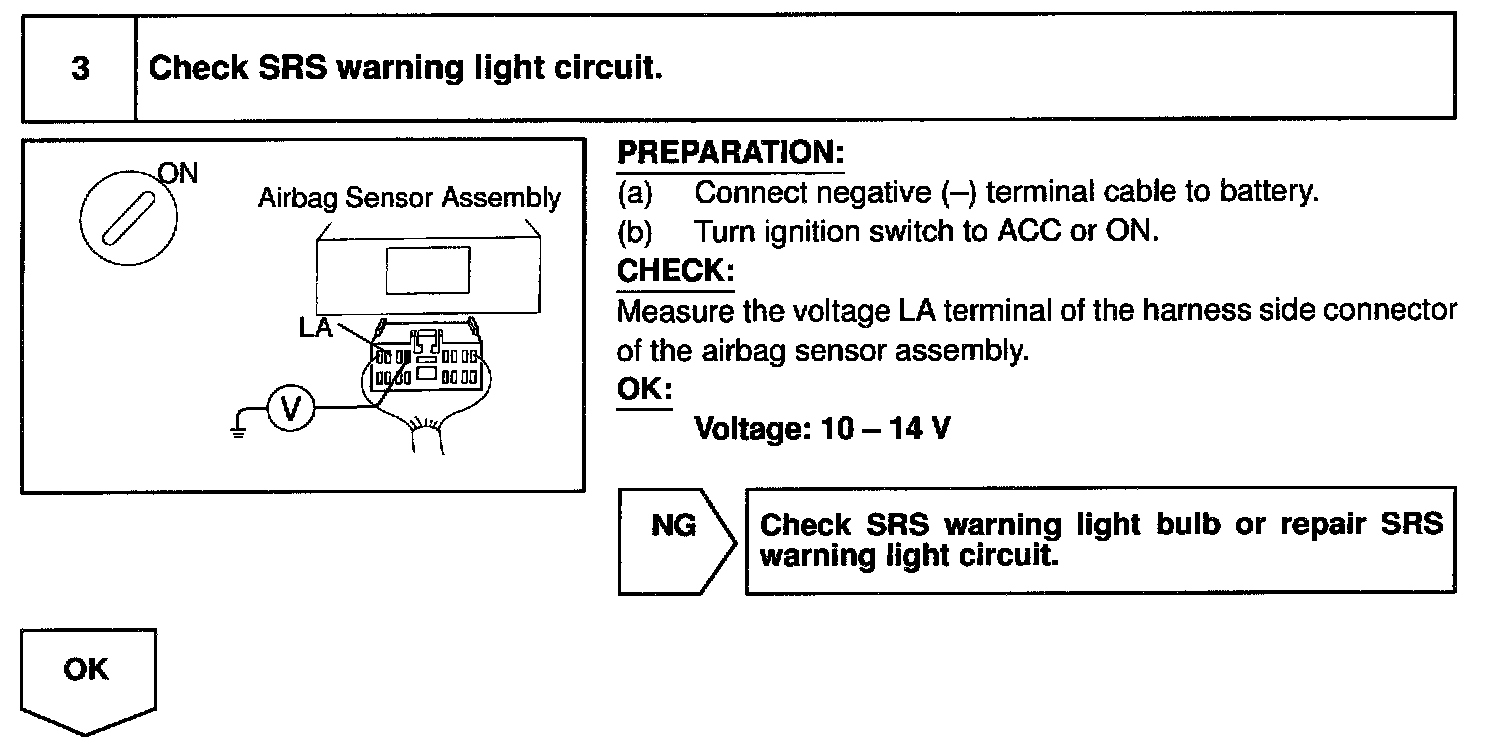

Step 3:

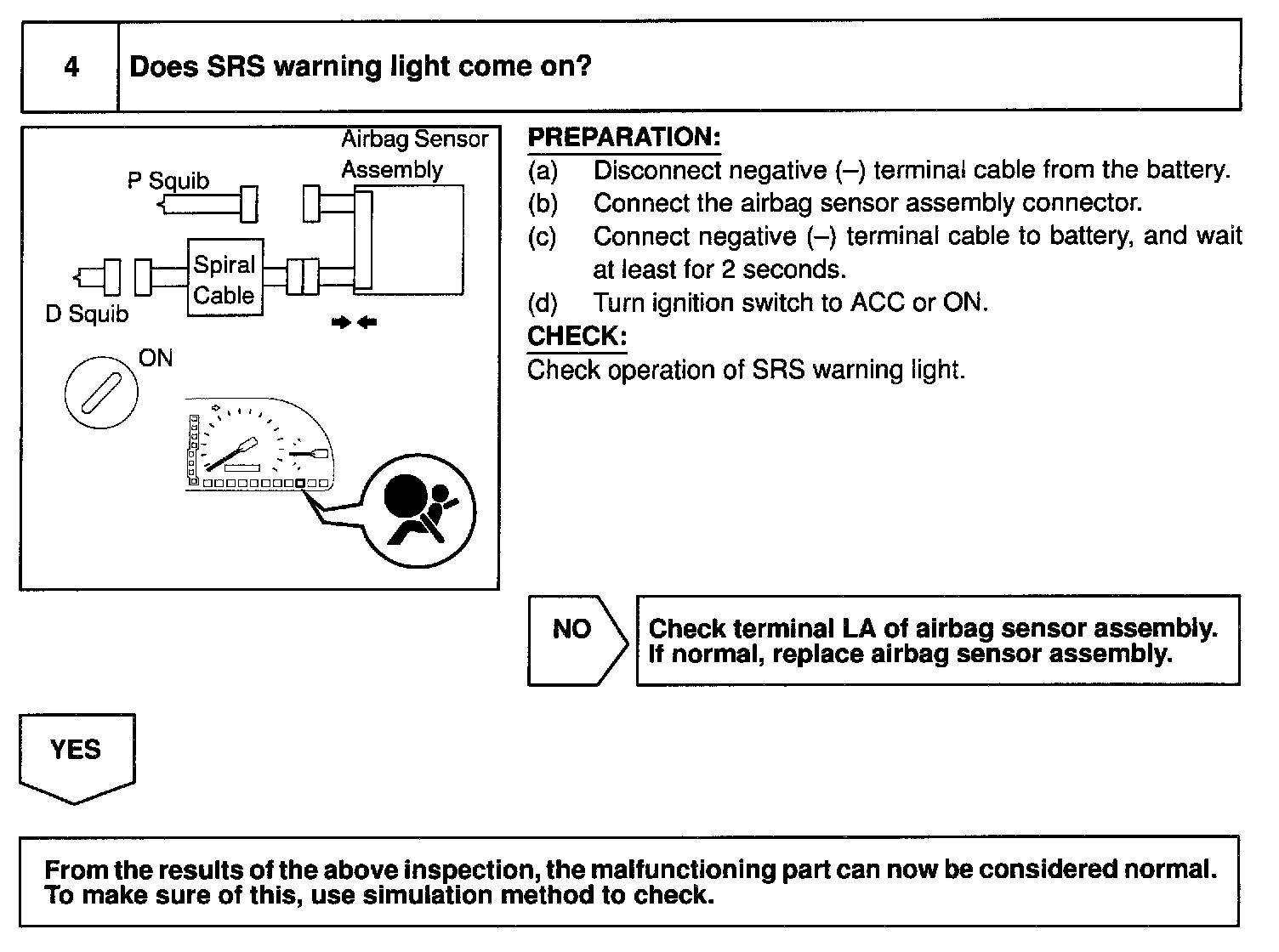

Step 4:

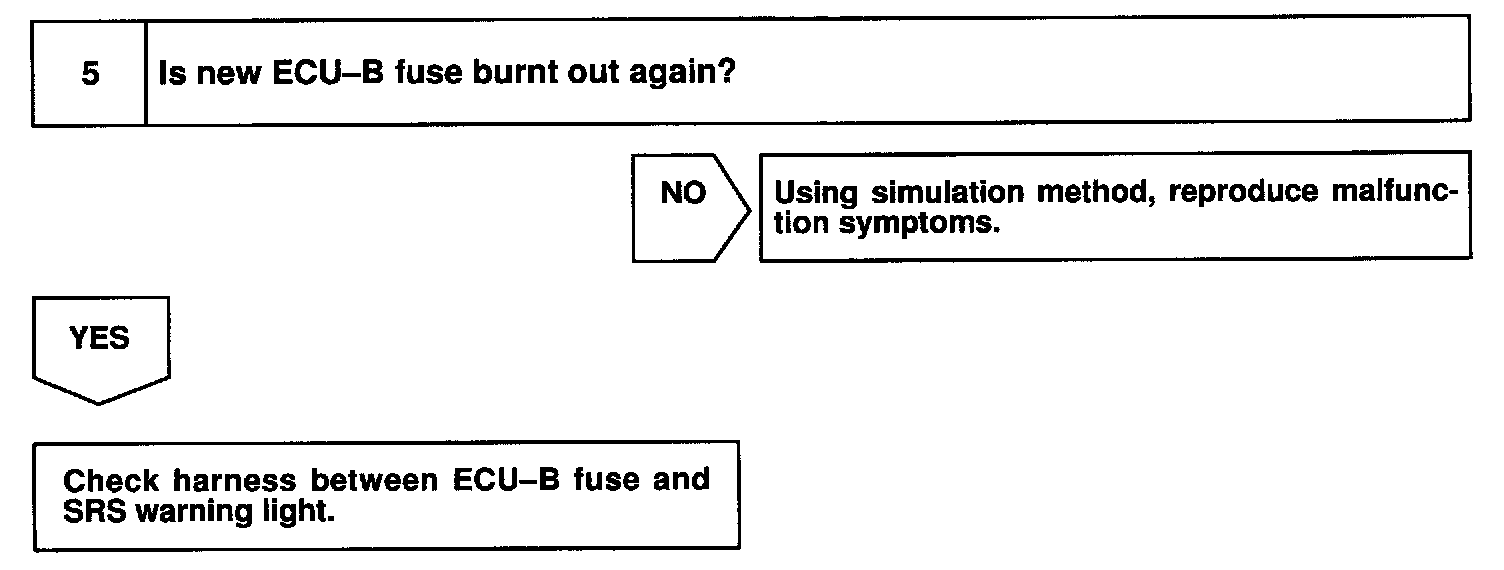

Step 5:

INSPECTION PROCEDURE
