Without Scan Tool

DTC CHECK (Using diagnosis check wire)




A. Output the DTC.
1. Turn the ignition switch to the ACC or ON position and wait approx. 20 seconds.

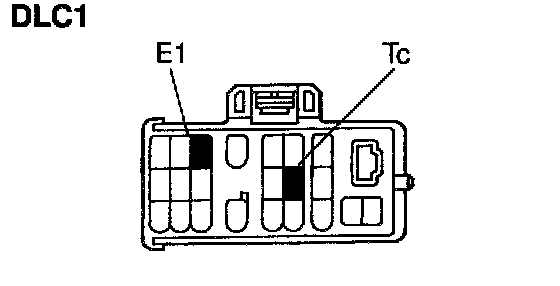

2. Using SST, connect terminals Tc and E1 of the DLC1.
SST 09843-18020

NOTE: Pay due attention to the terminal connecting position to avoid a malfunction.

HINT: DTC check and troubleshooting of each DTC can also be done using DLC2.




B. Read the DTC.

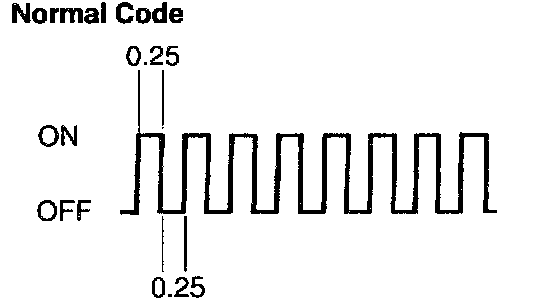

Read the 2-digit DTC as indicated by the number of times the SRS warning light blinks. As an example, the blinking patterns, normal, 11 and 31 are as shown in the illustration.
- Normal code indication
The light will blink 2 times per second.
- Malfunction code indication
The first blinking output indicates the first digit of a 2-digit DTC. After a 1.5-pause, the second blinking output will indicate the second digit.




If there are 2 or more codes, there will be a 2.5-pause between each code. After all the codes have been output, there will be a 4.0 second pause and they will all be repeated.

HINT:
- In the event of a number of trouble codes, indication will start from the smallest numbered code.
- If it does not output a DTC or outputs a DTC without terminal connection, proceed to the Tc terminal circuit inspection.
