TC Terminal Circuit

Tc Terminal Circuit

CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of the DLC1 the airbag sensor assembly is set in the DTC output mode.
The DTCs are displayed by blinking of the SRS warning light.

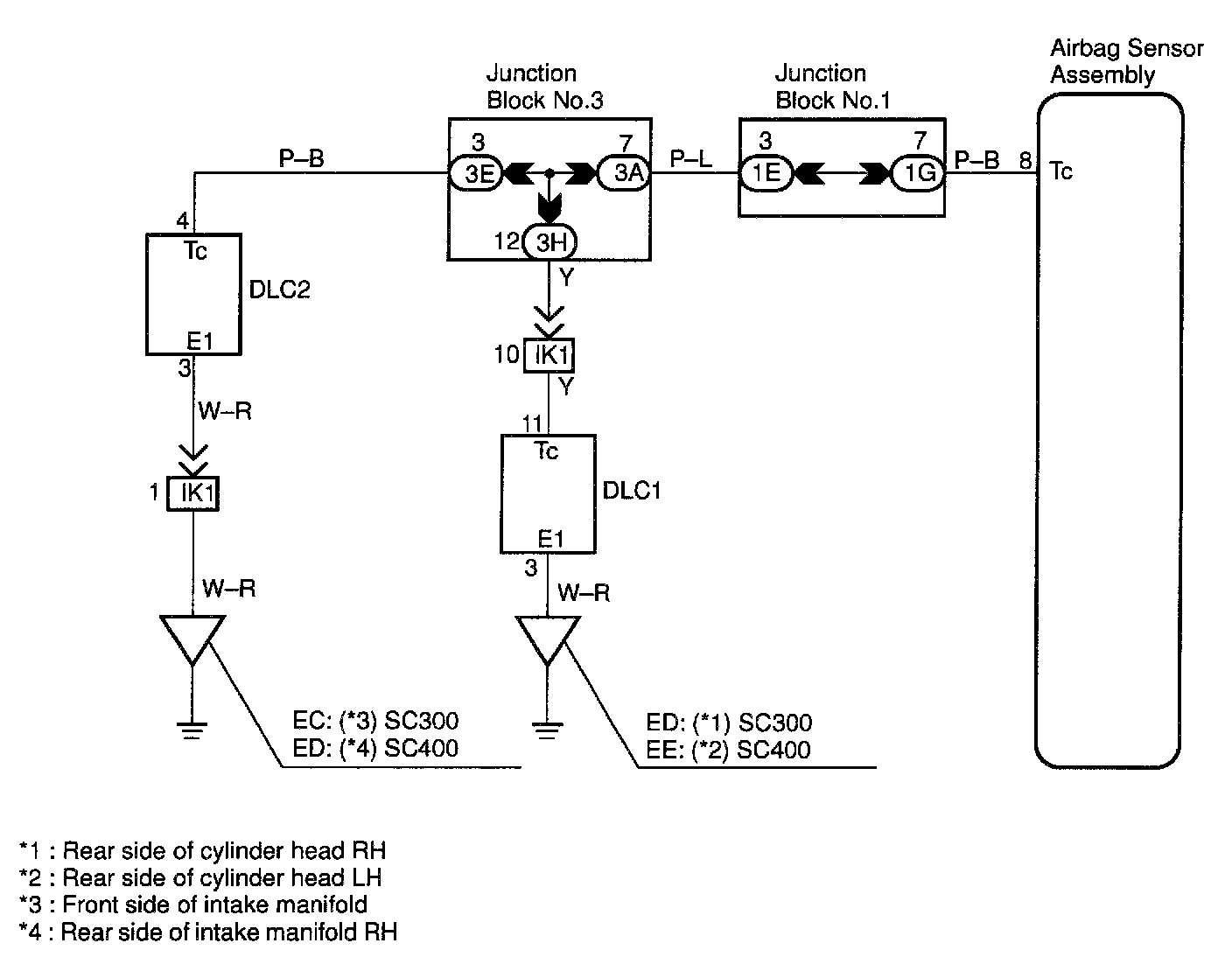

WIRING DIAGRAM

INSPECTION PROCEDURE

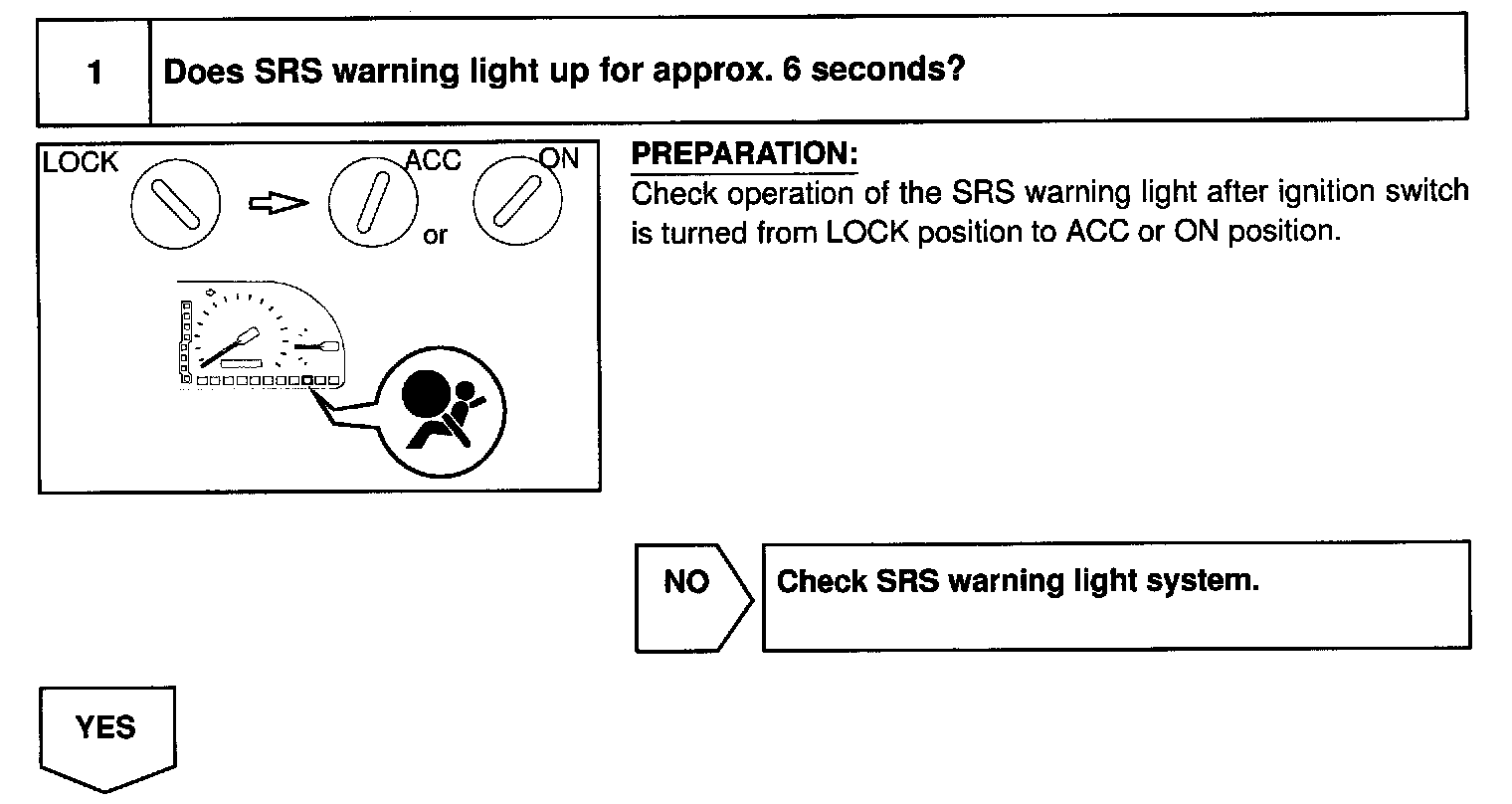

Step 1:

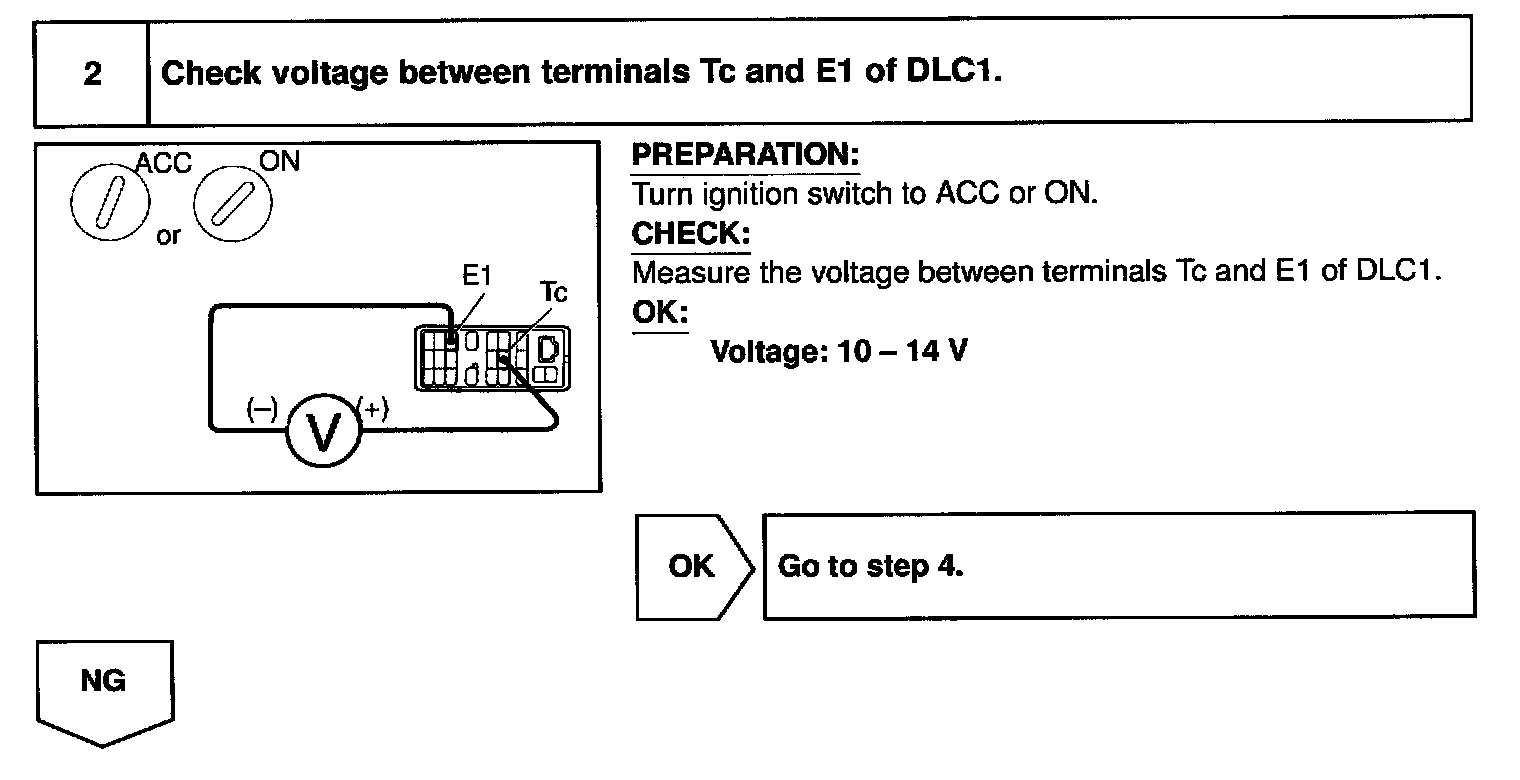

Step 2:

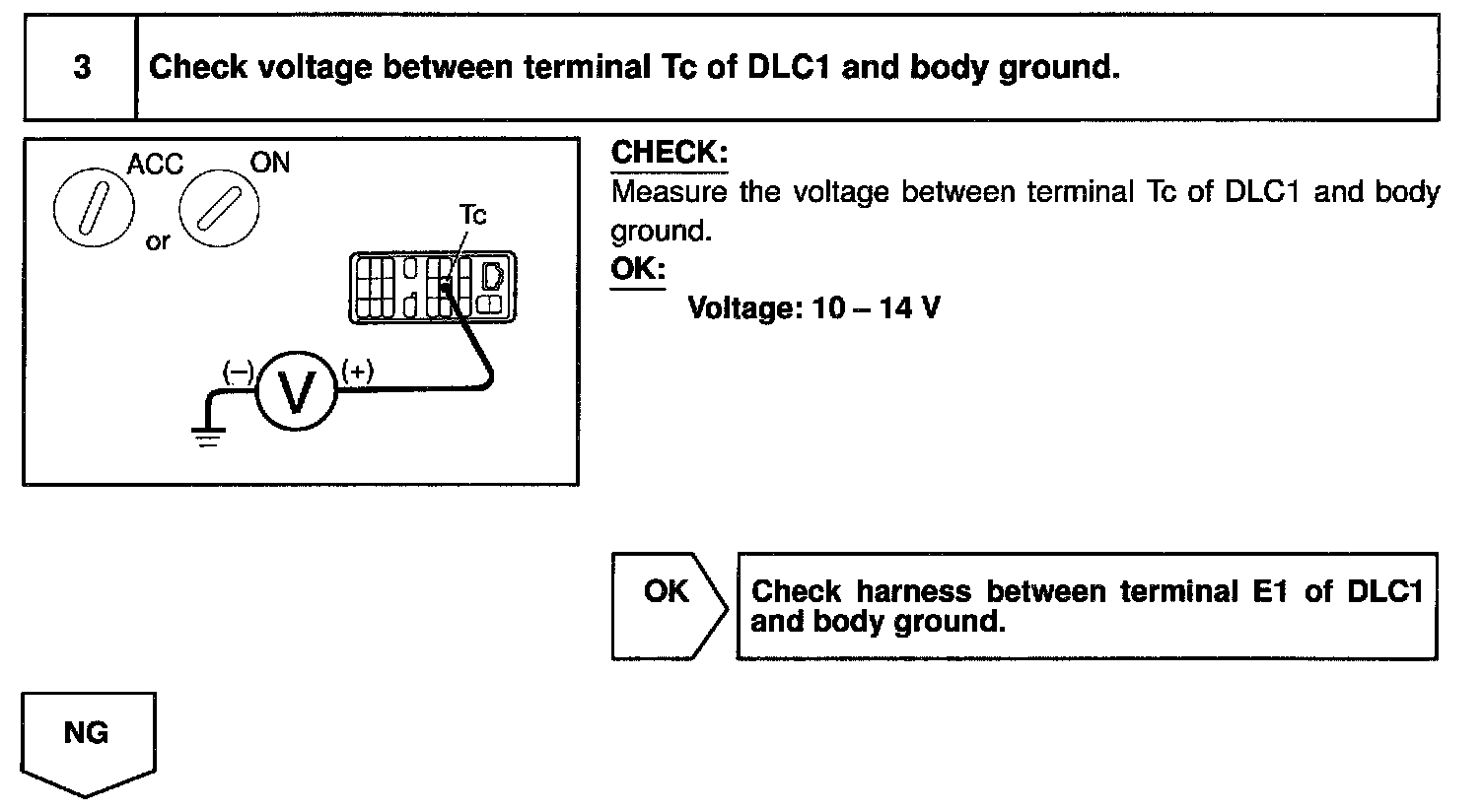

Step 3:

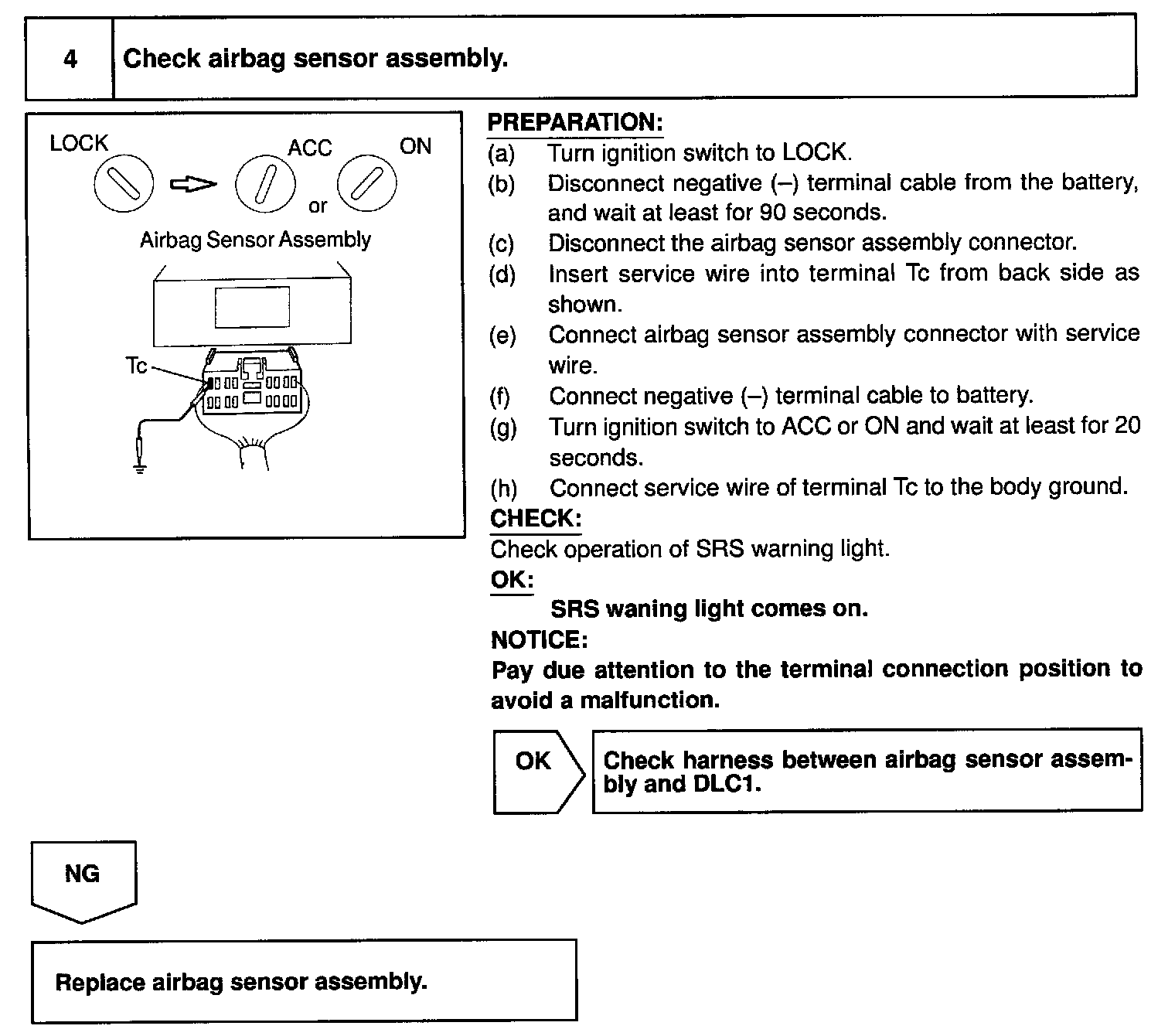

Step 4:

If the DTC is not displayed, do the given troubleshooting

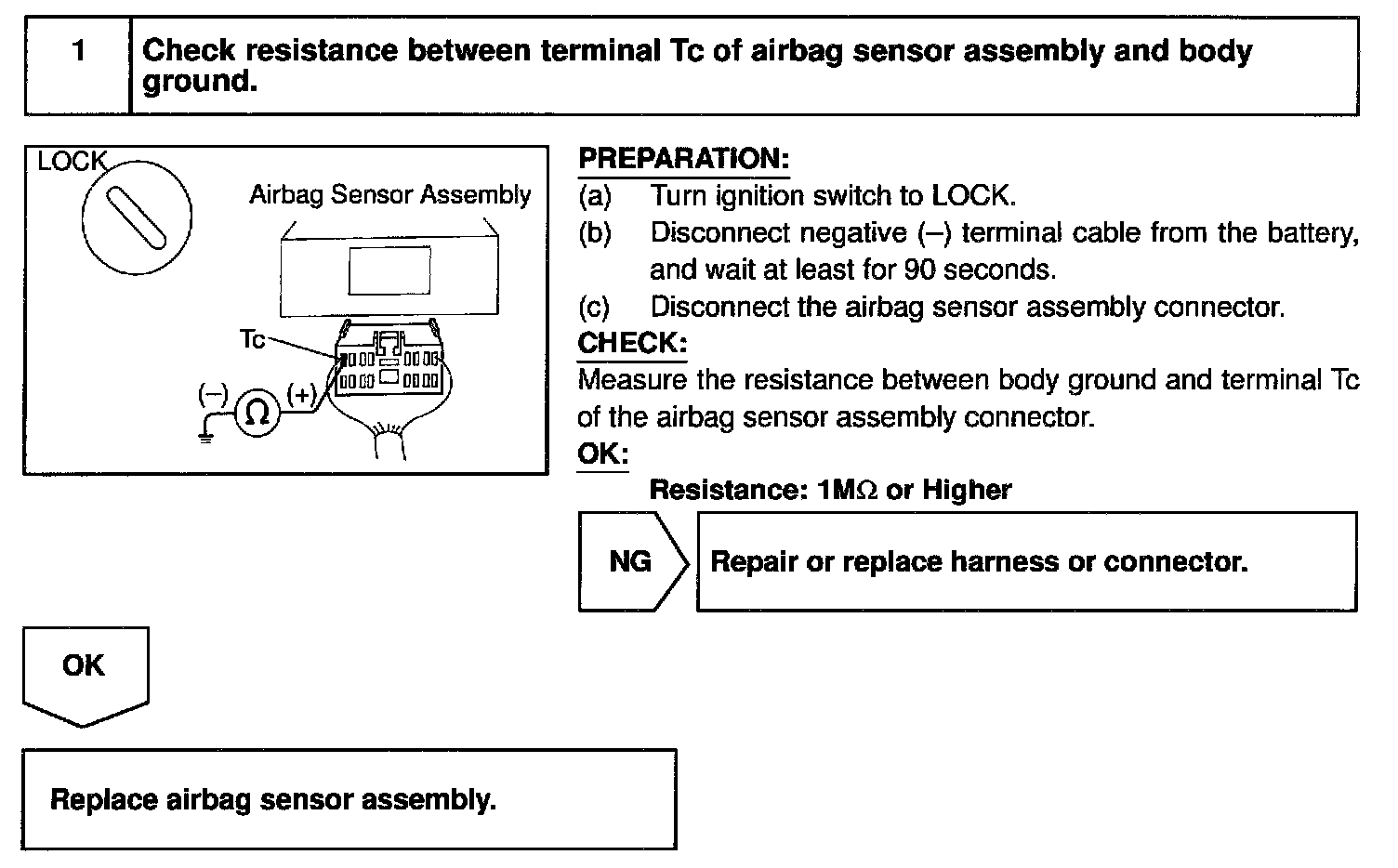

Step 1:

If DTC is displayed without a DTC check procedure, perform the given troubleshooting
