Removal and Installation

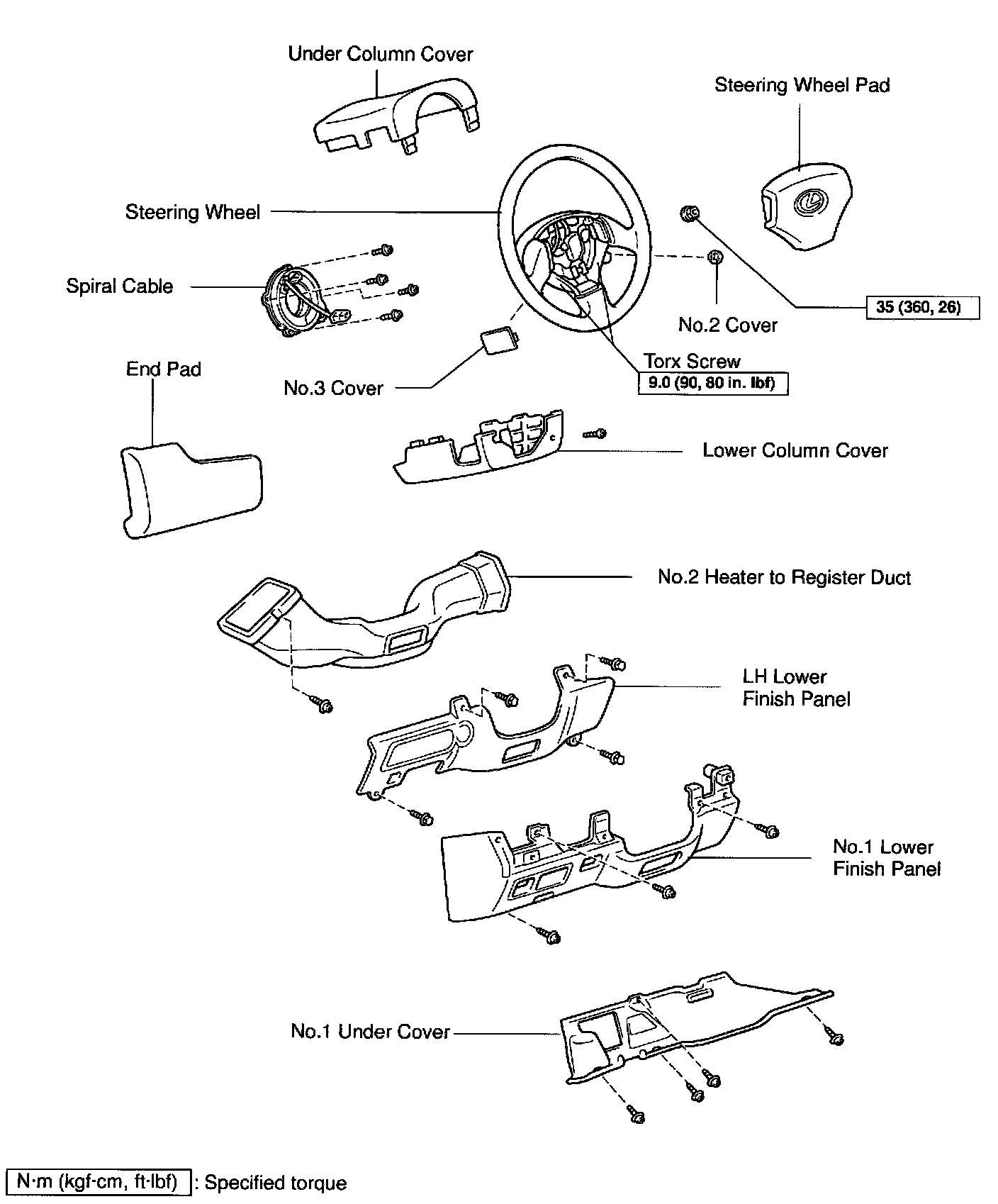

Steering Wheel Pad and Spiral Cable:

COMPONENT

REMOVAL

REMOVE THESE PARTS
a. Steering Wheel Pad
b. Steering Wheel
c. Upper and Lower Column Covers
d. End Pad
e No.1 Under Cover
f No.1 Lower Finish Panel
g. LH Lower Finish Panel
h. No.2 Heater To Resister Duct
i. Spiral Cable

INSTALLATION

INSTALL THESE PARTS
a. Spiral Cable
b. No.2 Heater To Register Duct
c. LH Lower Finish Panel
d. No.1 Lower Finish Panel
e. No.1 Under Cover
f. End Pad
g. Upper and Lower Column Covers
h. Steering Wheel
i. Steering Wheel Pad
