Home >> Lexus >> 2000 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams

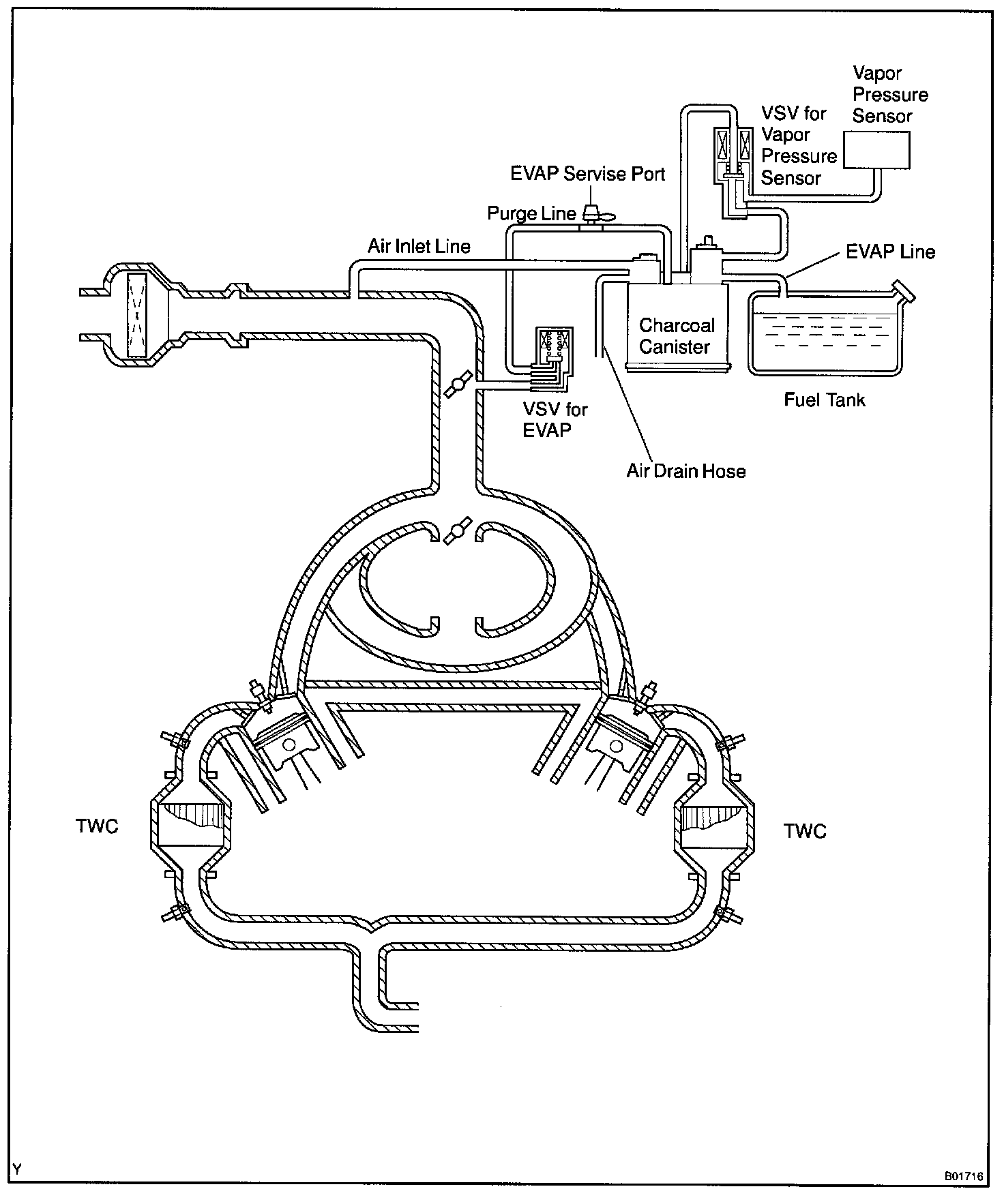

Vacuum and Vapor Hose Diagrams
