Rear

REPLACEMENT
1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE CALIPER AND DISC

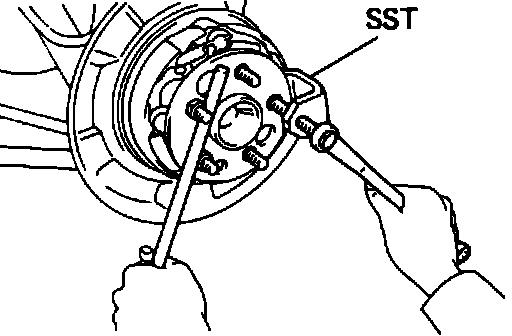

Fig. 50 Removing Lug Bolt:

3. REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09628-10011

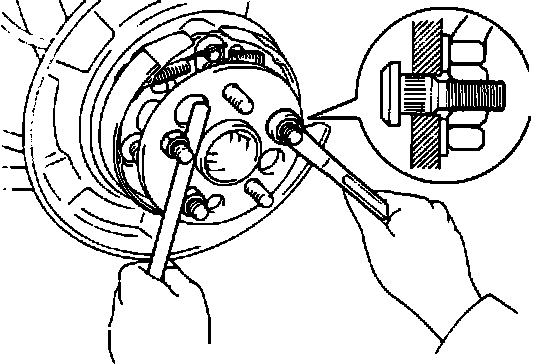

Fig. 51 Installing Lug Bolt:

4. INSTALL HUB BOLT
Install a washer and nut to the hub bolt, as shown in the illustration, and install the hub bolt by torquing the nut.
5. INSTALL DISC AND BRAKE CALIPER
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
