LIST OF OPERATION METHODS

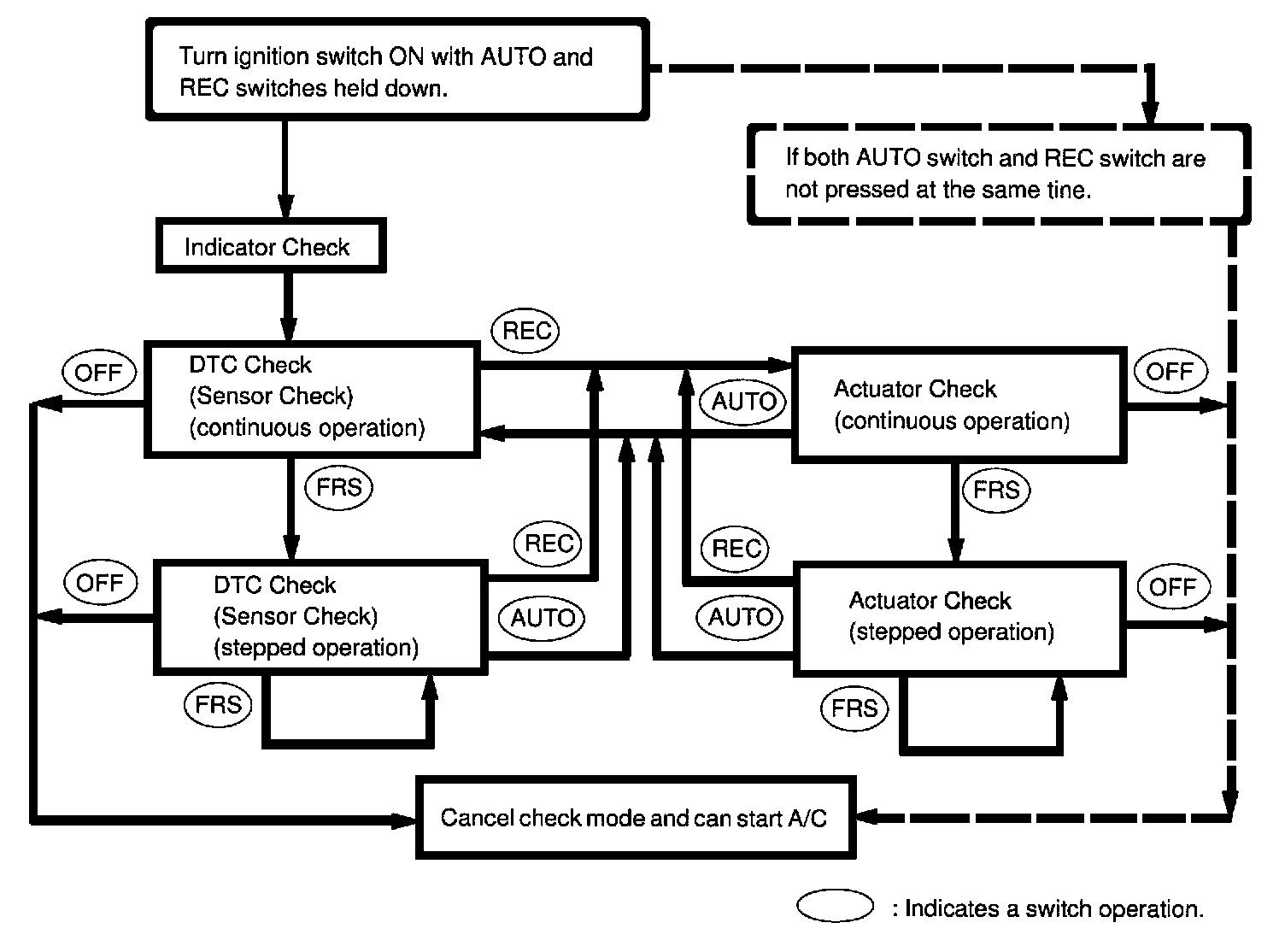

By operating each of the
A/C control switches
as shown in the diagram, it is possible to enter the diagnosis check mode.
