IG Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the A/C control assembly (contains the A/C control assembly) and servomotor, etc.

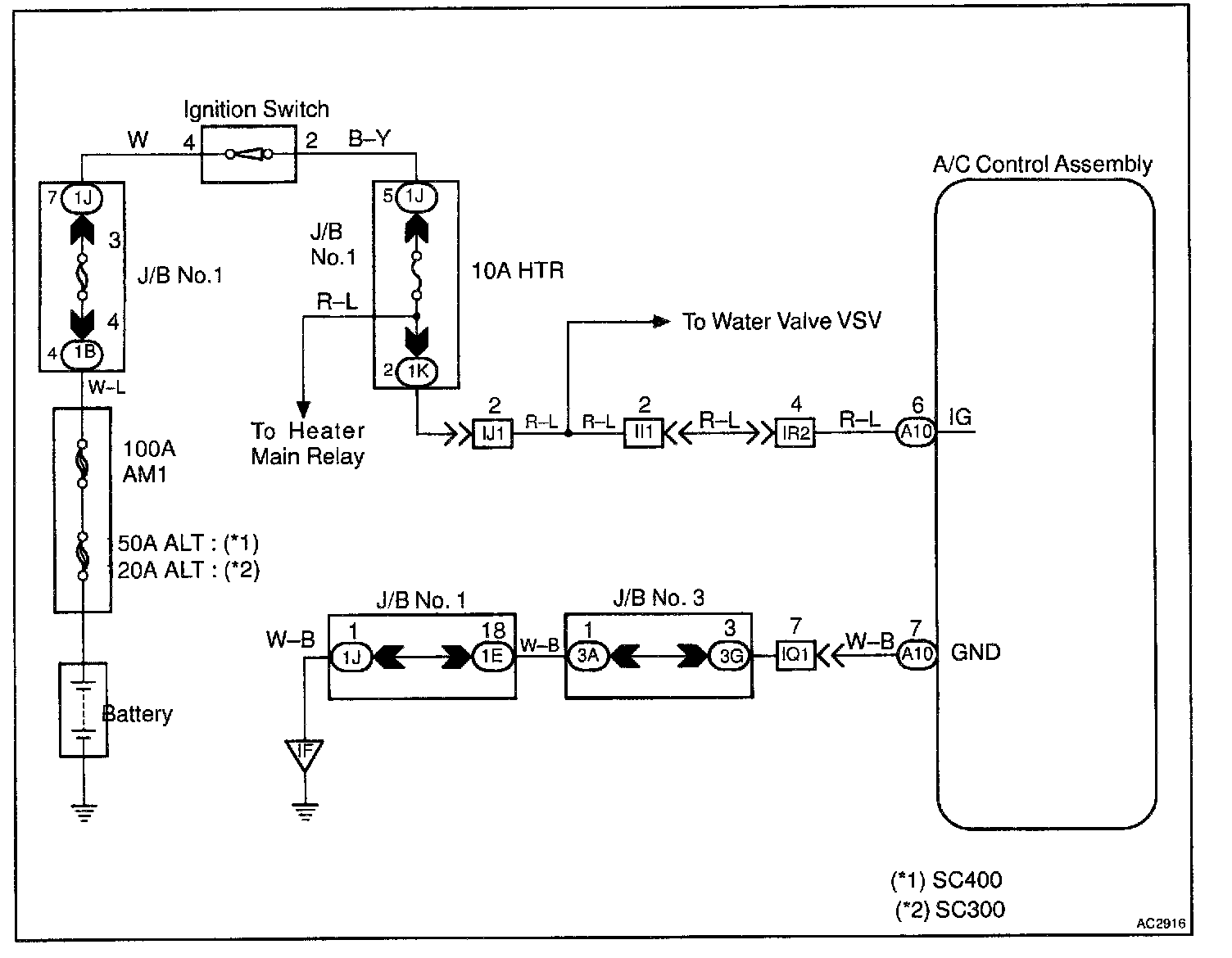

Wiring Diagram:

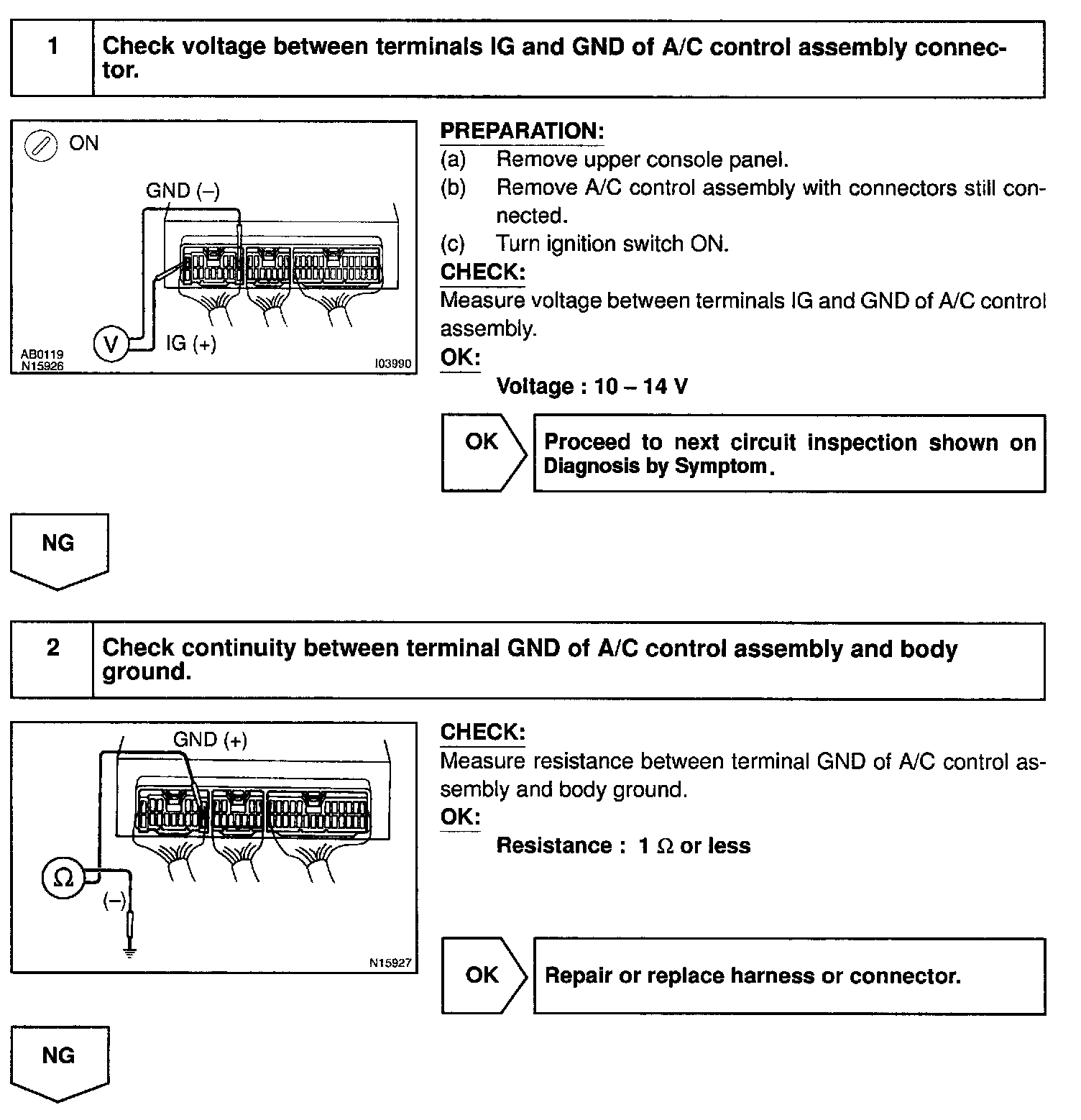

Step 1 - 2:

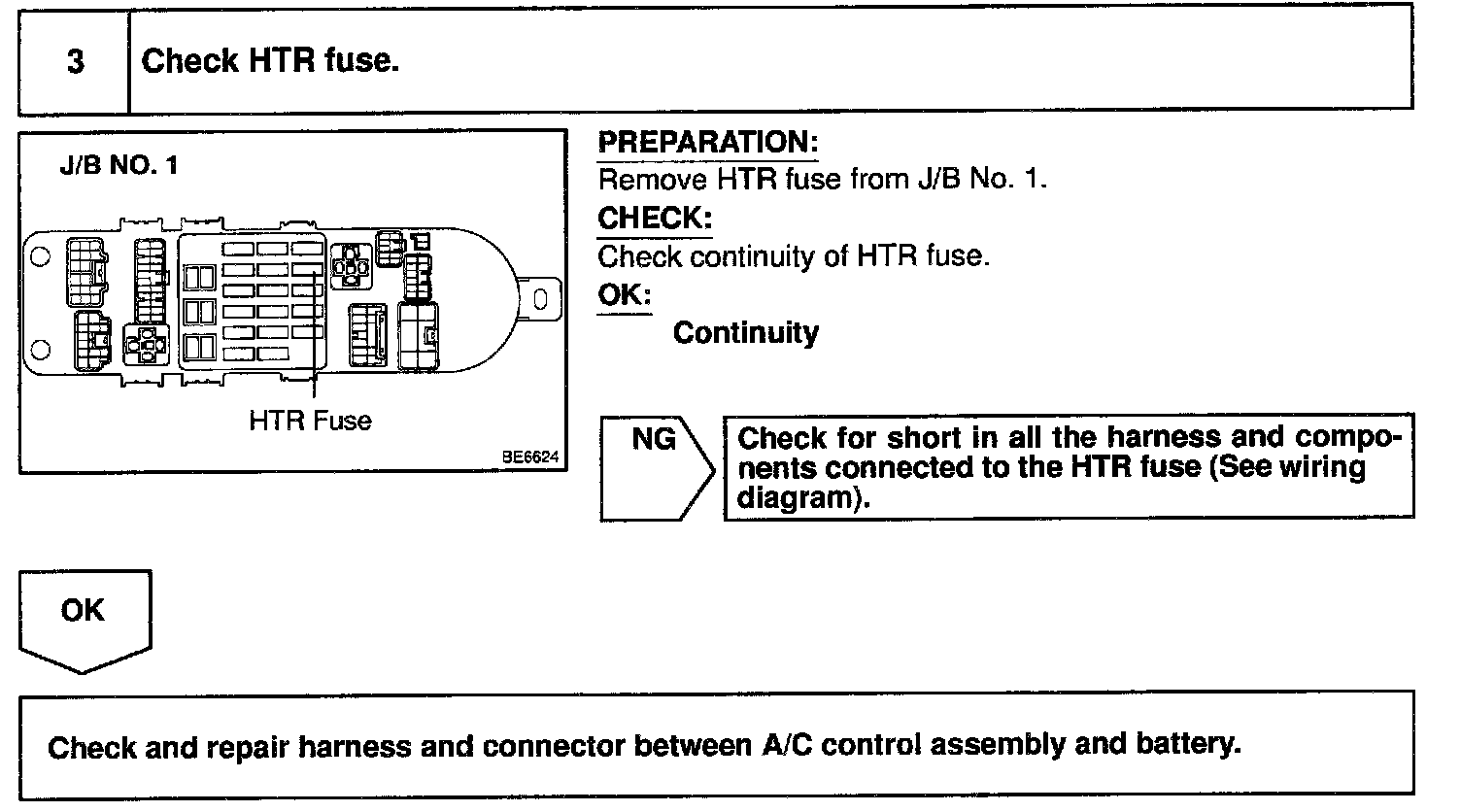

Step 3:

INSPECTION PROCEDURE
