Heater Main Relay Circuit
CIRCUIT DESCRIPTIONThe heater relay is switched ON by signals from the A/C control assembly. It supplies power to the blower motor.

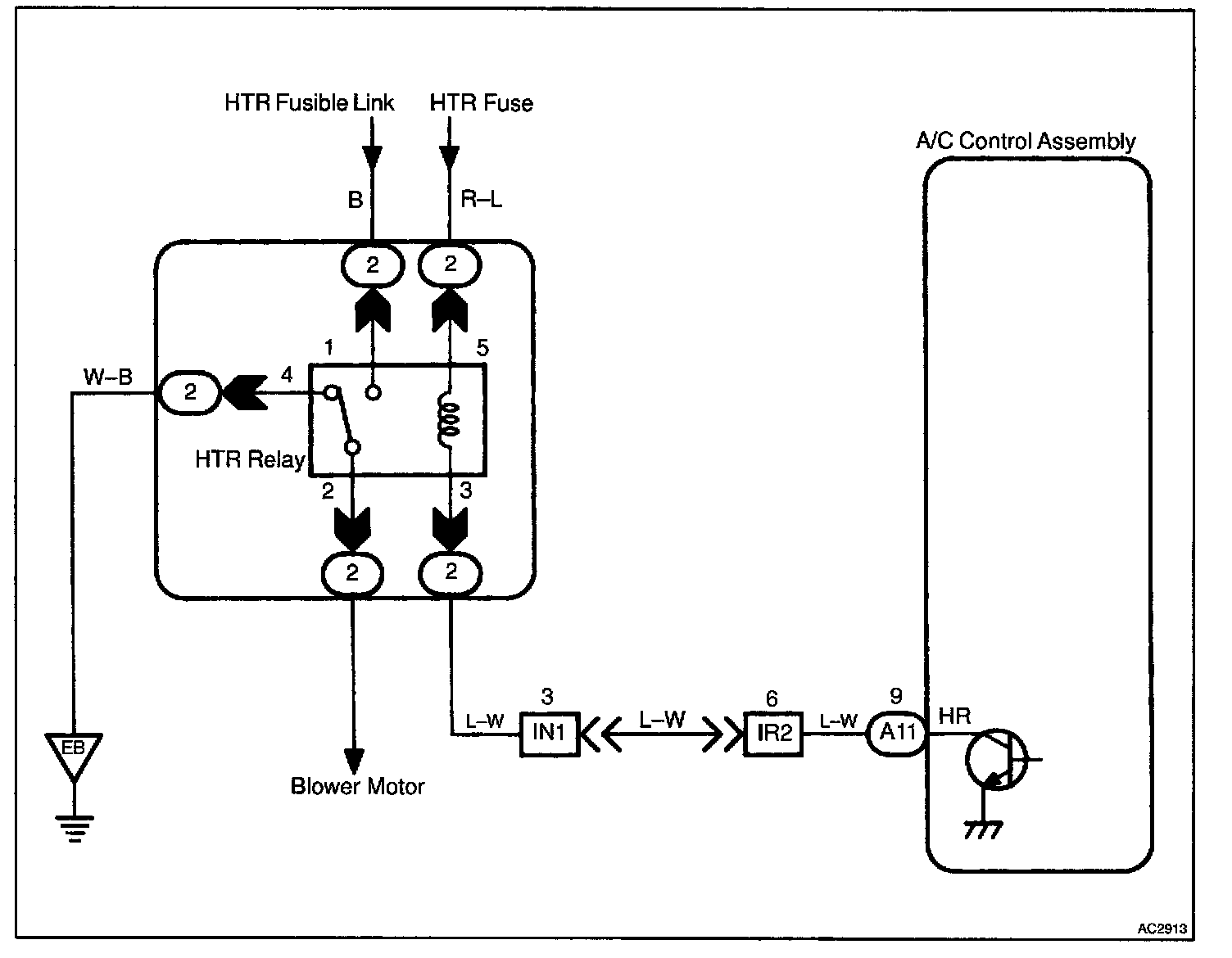

Wiring Diagram:

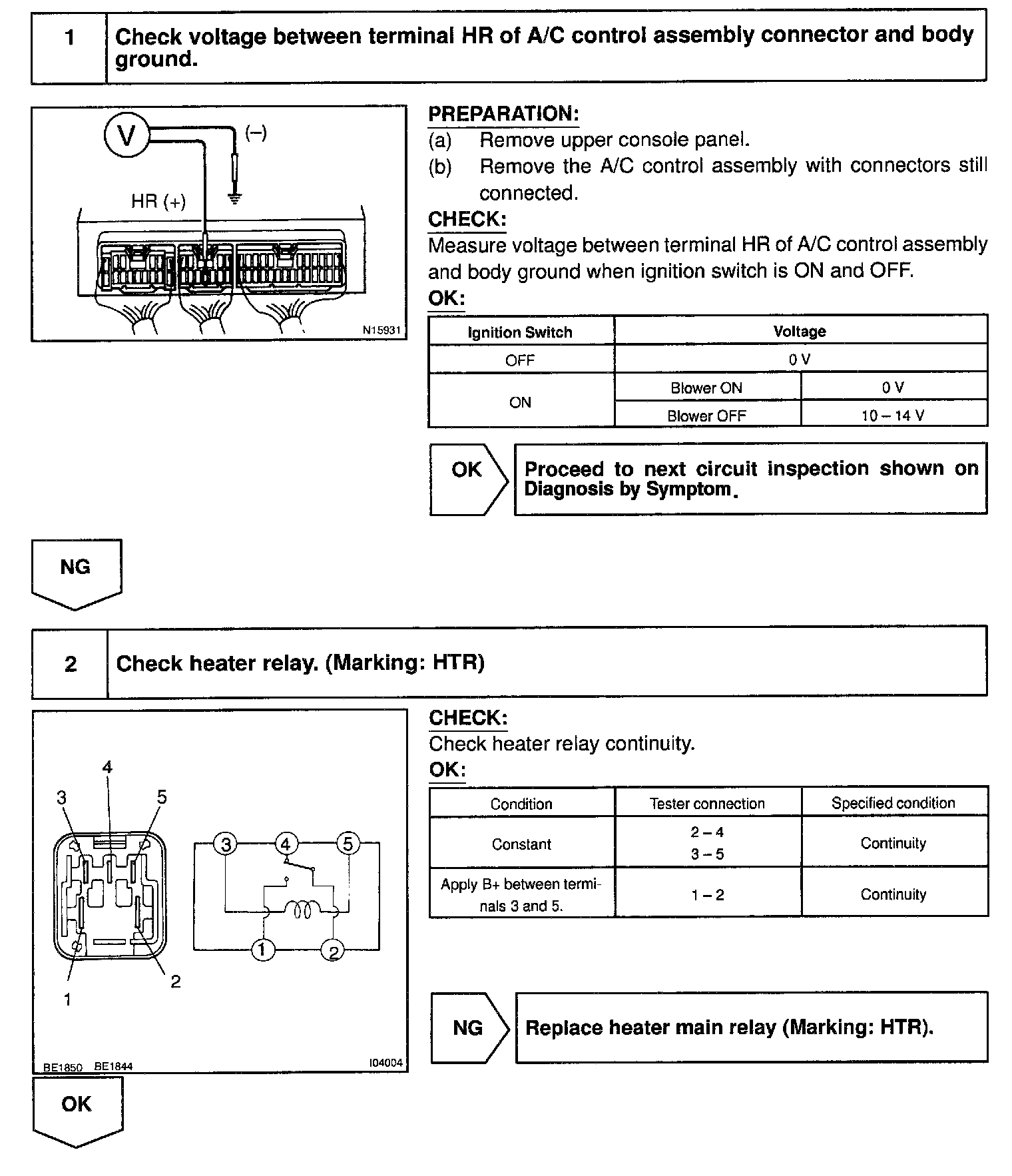

Step 1 - 2:

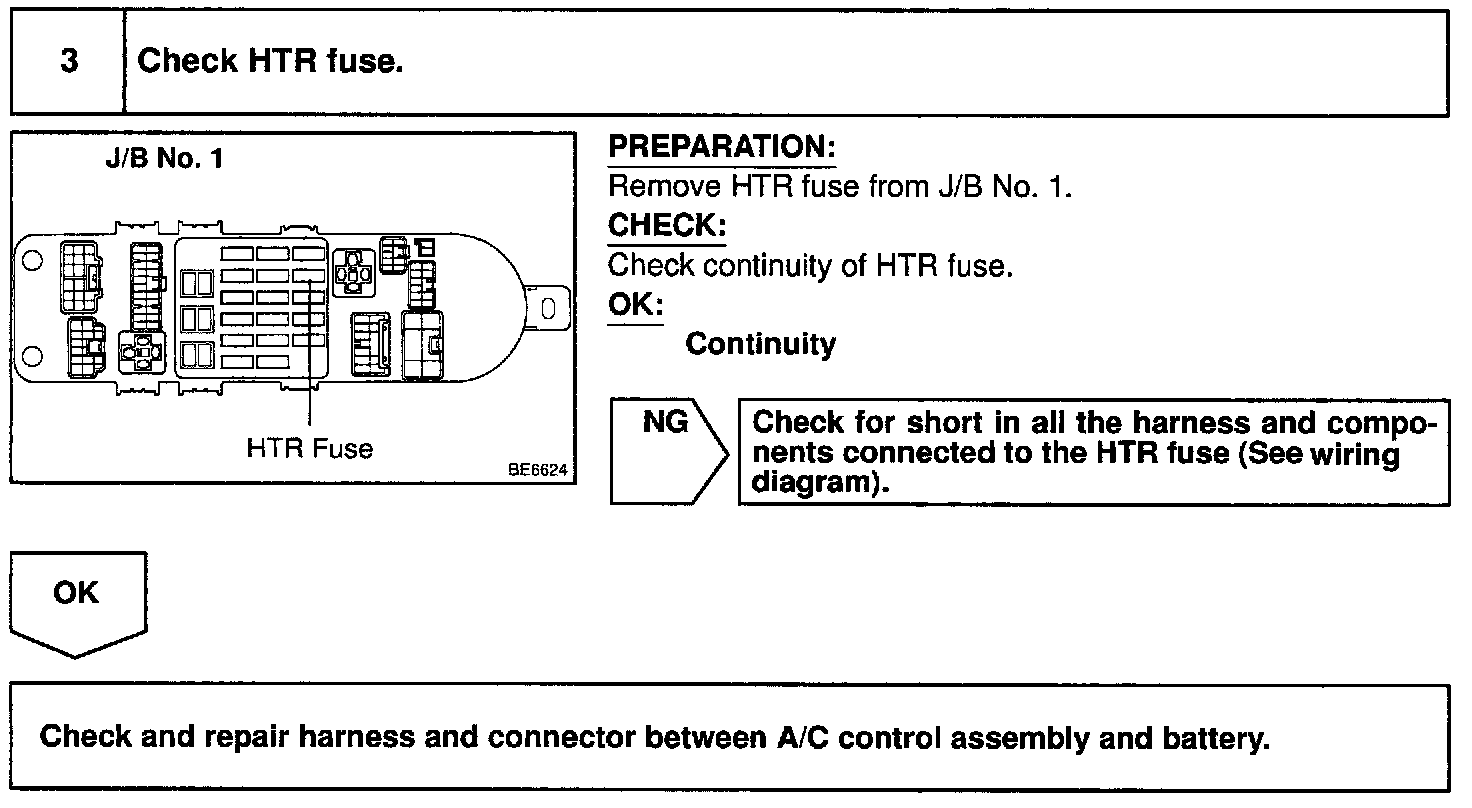

Step 3:
INSPECTION PROCEDURE
The heater relay is switched ON by signals from the A/C control assembly. It supplies power to the blower motor.
INSPECTION PROCEDURE
