Back-Up Power Source Circuit
CIRCUIT DESCRIPTIONThis is the back-up power source for the A/C control assembly. Power is supplied even when the ignition switch is off and is used for DTC memory etc.

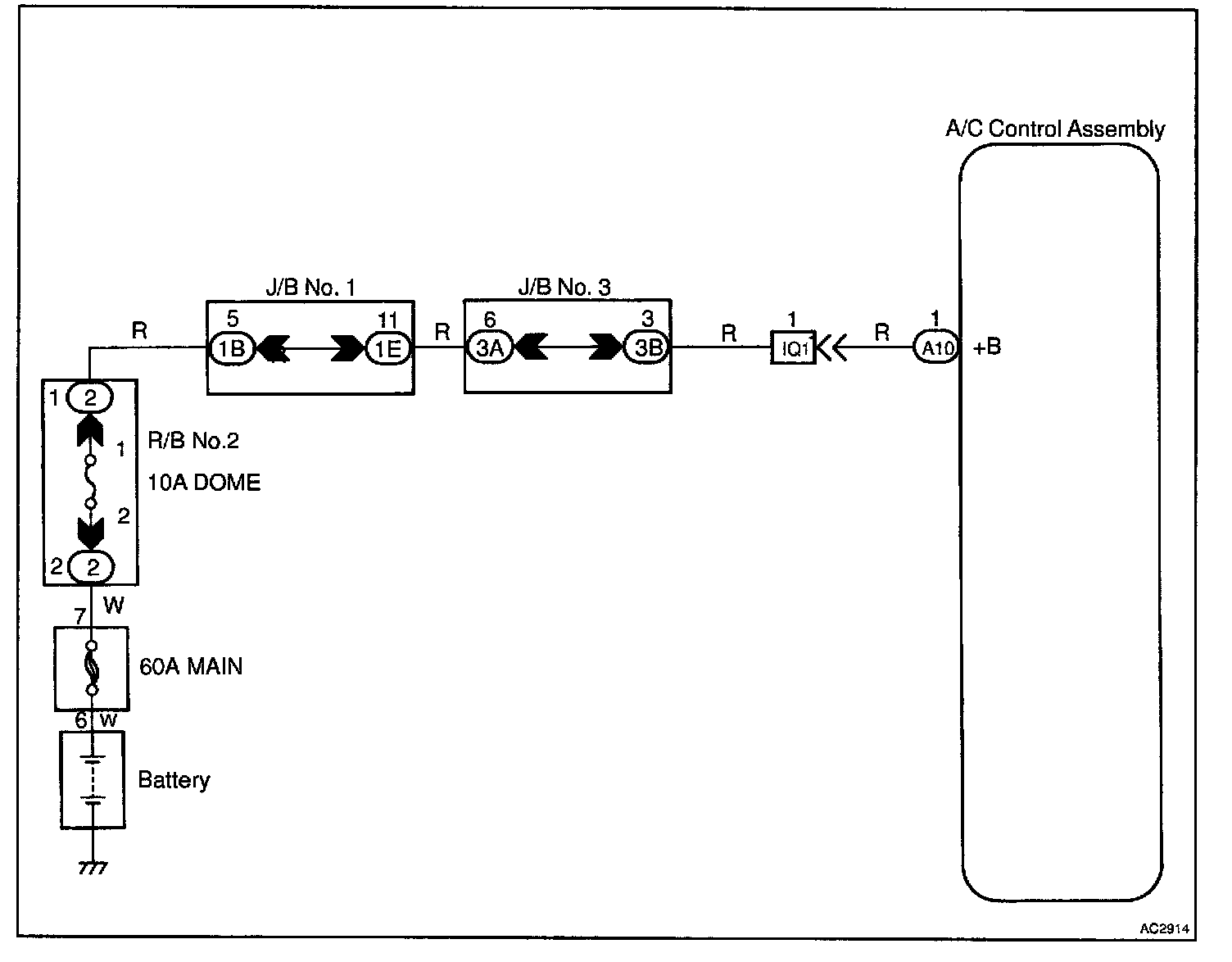

Wiring Diagram:

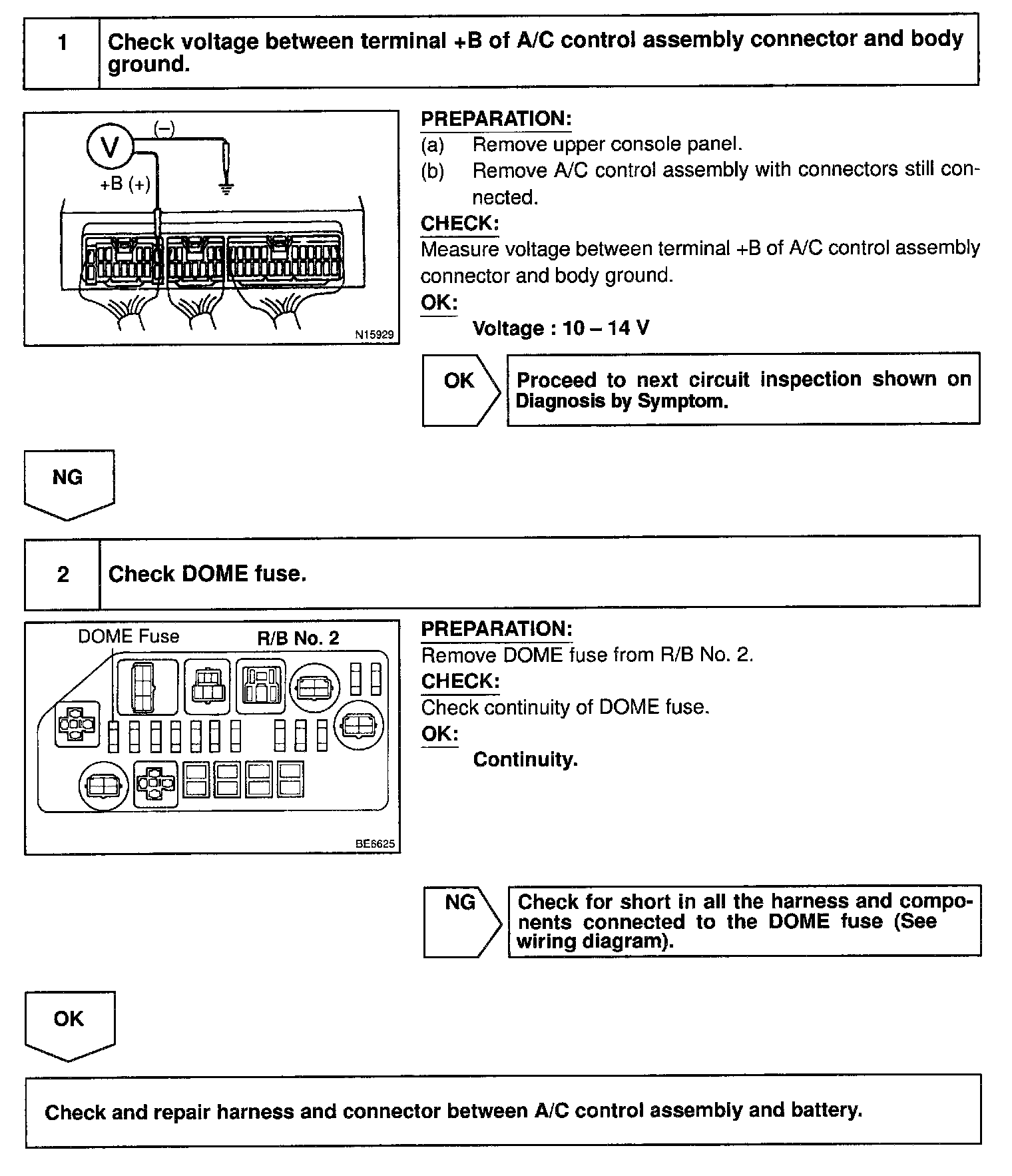

Step 1 - 2:
INSPECTION PROCEDURE
This is the back-up power source for the A/C control assembly. Power is supplied even when the ignition switch is off and is used for DTC memory etc.
INSPECTION PROCEDURE
