Air Mix Control Motor

REMOVAL
Air Inlet, Outlet, and Mix Servomotors

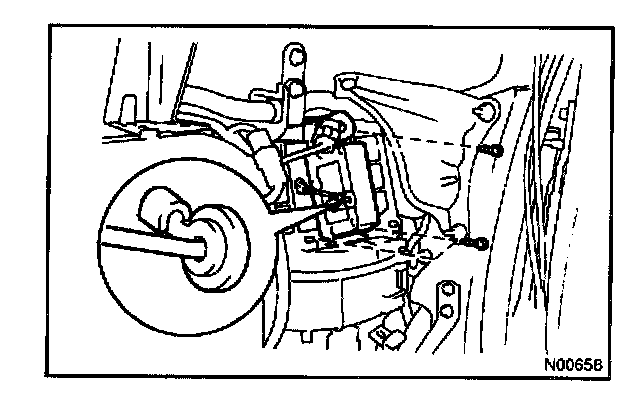

1. REMOVE AIR INLET SERVOMOTOR
a. Remove instrument panel and reinforcement.




b. Remove servomotor.
1. Disconnect the connector.
2. Disconnect the control link.
3. Remove the 3 screws and the servomotor.

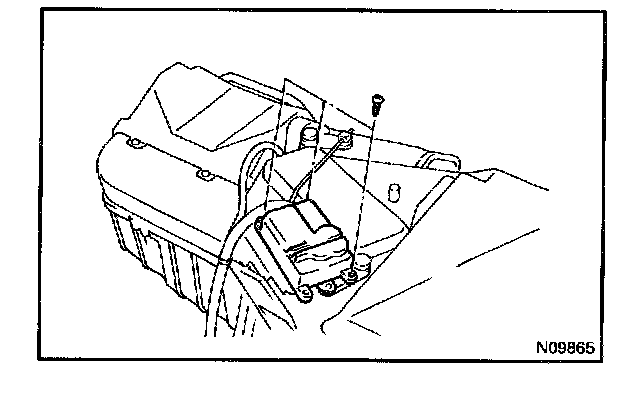

2. REMOVE AIR MIX SERVOMOTOR
a. Remove A/C unit.




b. Remove servomotor.
1. Disconnect the connector.
2. Remove the 3 screws and the servomotor.




3. REMOVE AIR OUTLET SERVOMOTOR
a. Remove instrument panel and reinforcement.
b. Remove servomotor.
1. Disconnect the connector.
2. Remove the 4 screws and the servomotor.

INSTALLATION
Installation is in the reverse order of removal
