Part 2

REPLACEMENT
1. REPLACE VALVE GUIDE BUSHINGS





a) Gradually heat the cylinder head to 80 - 100°C (176 - 212°F).

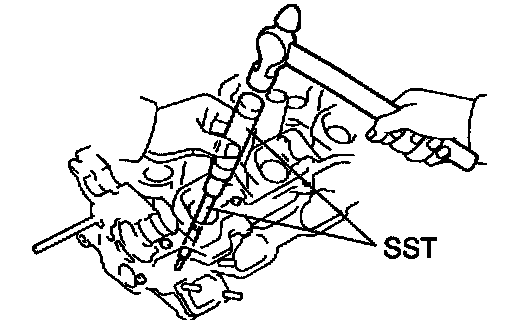

b) Using SST and a hammer, tap out the guide bushing.
SST 09201-01055, 09950-70010 (09951-07100)





c) Using a caliper gauge, measure the bushing bore diameter of the cylinder head.

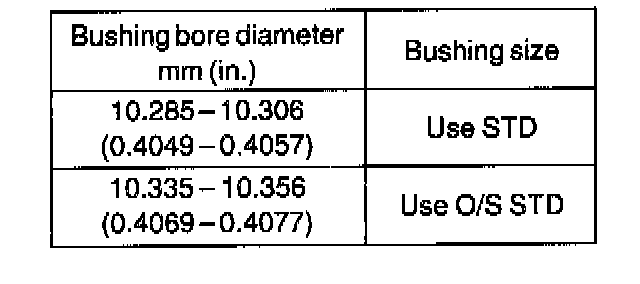

d) Select a new guide bushing (STD or O/S 0.05).
If the bushing bore diameter of the cylinder head is greater than 10.306 mm (0.4057 inch), machine the bushing bore to the following dimension:
10.335 - 10.356 mm (0.4069 - 0.4077 inch)
If the bushing bore diameter of the cylinder head is greater than 10.356 mm (0.4077 inch), replace the cylinder head.





HINT: Different the bushings are used for the intake and exhaust.

e) Gradually heat the cylinder head to 80 - 100°C (176 - 212°F).





f) Using SST and a hammer, tap in a new guide bushing to the specified protrusion height.

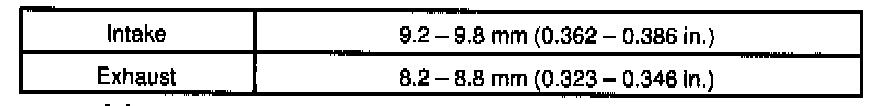

Protrusion height:

SST 09201-01055, 09950-70010 (09951-07100)

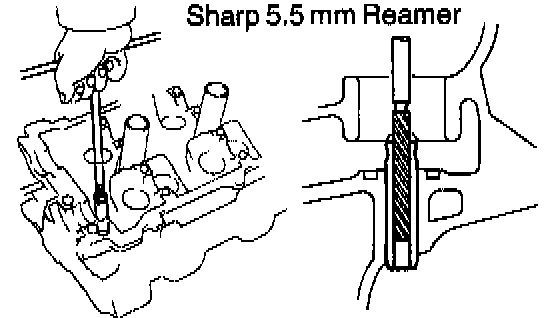

g) Using a sharp 5.5 mm reamer, ream the guide bushing to obtain the standard specified clearance between the guide bushing and valve stem.
2. REPLACE SPARK PLUG TUBE GASKETS

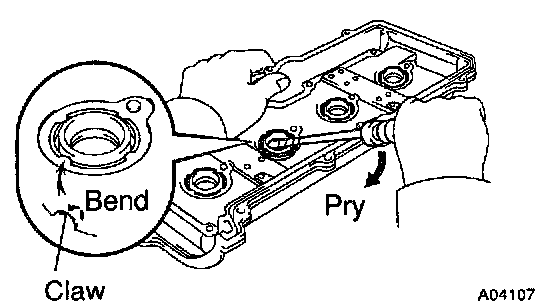

a) Bend the 4 ventilation case claws installed on the cylinder head cover to an angle of 90° or more.
b) Using a screwdriver, pry out the gasket.

NOTICE: Be careful not to damage the cylinder head cover. Tape the screwdriver tip.

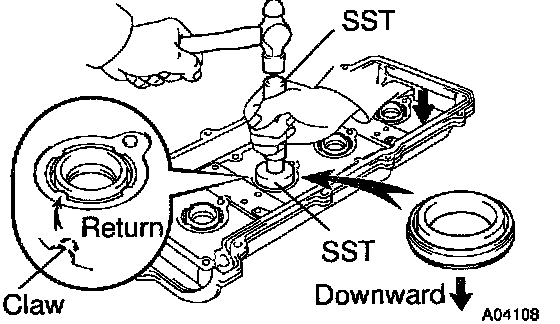

c) Using SST and a hammer, tap in a new gasket until its surface is flush with the upper edge of the cylinder head cover.
SST 09950-60010 (09551-00240, 09951-00440, 09952-06010), 09950-70010 (09951-07100)

NOTICE: Be careful of the installation direction.

d) Apply a light coat of MP grease to the gasket lip.
e) Return the 4 ventilation case claws to its original position.
