Brake Fluid Level Sensor/Switch: Testing and Inspection

CIRCUIT DESCRIPTION
The brake fluid level warning switch sends the appropriate signal to the ECU when the brake fluid level drops.

HINT: When pulling the parking lever, the brake warning light turns ON, DTC No.52 is not diagnosed.

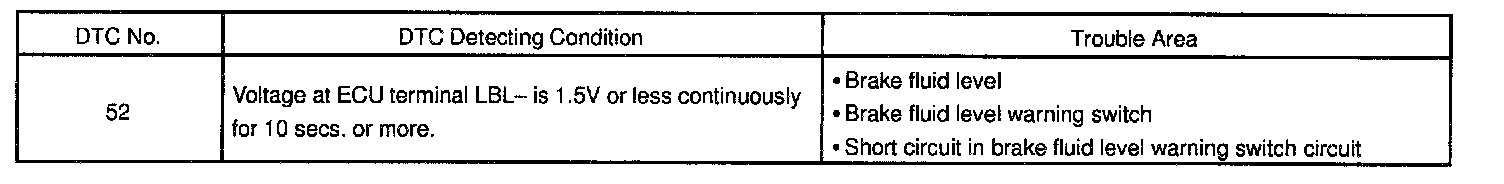

DETECTING CONDITIONS

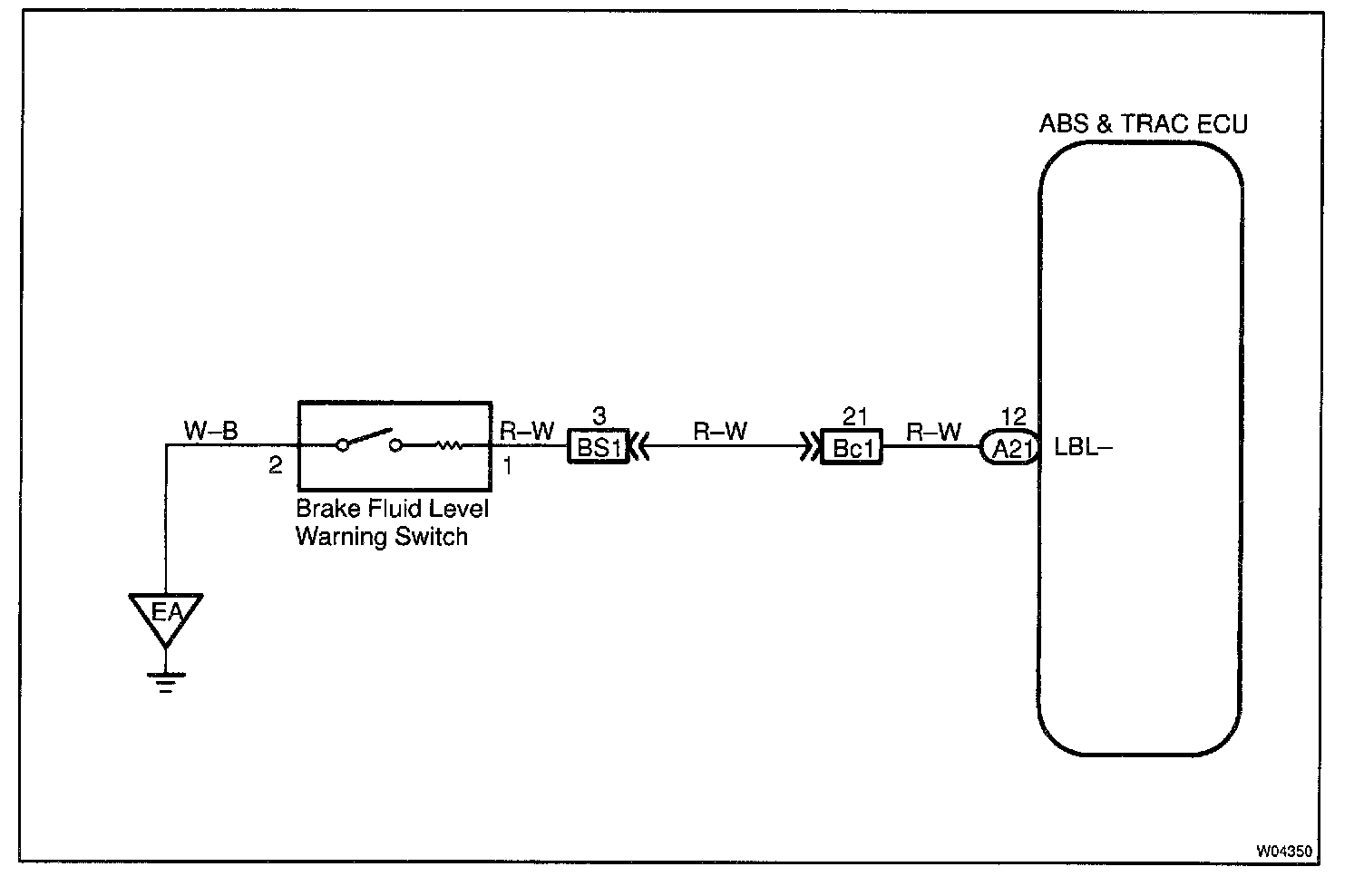

WIRING DIAGRAM

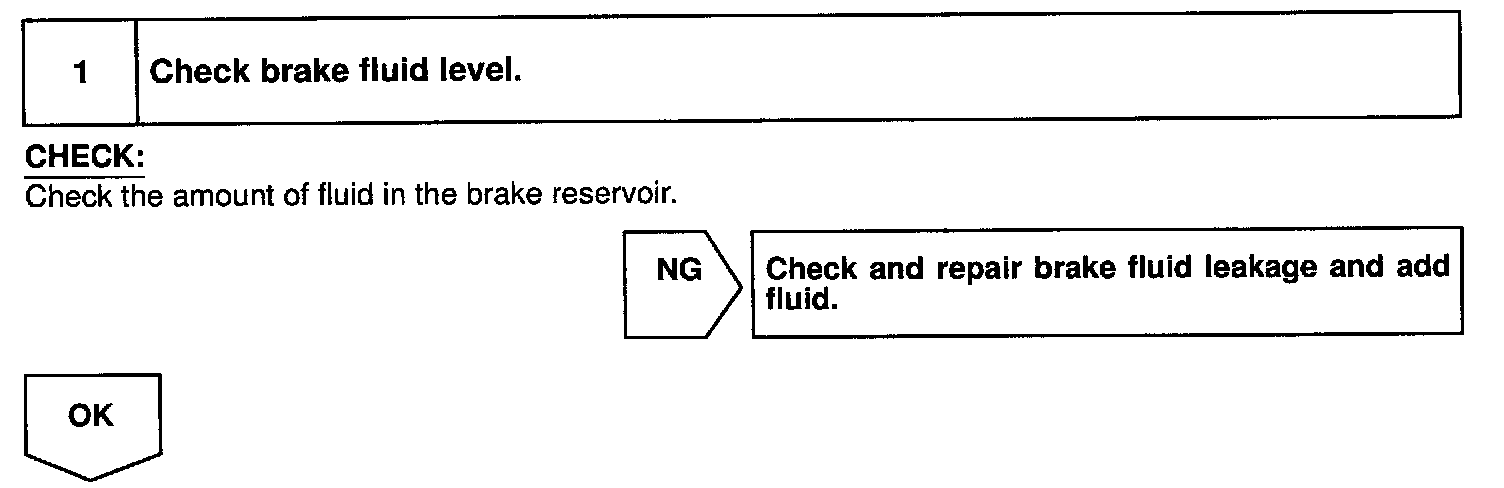

Step 1:

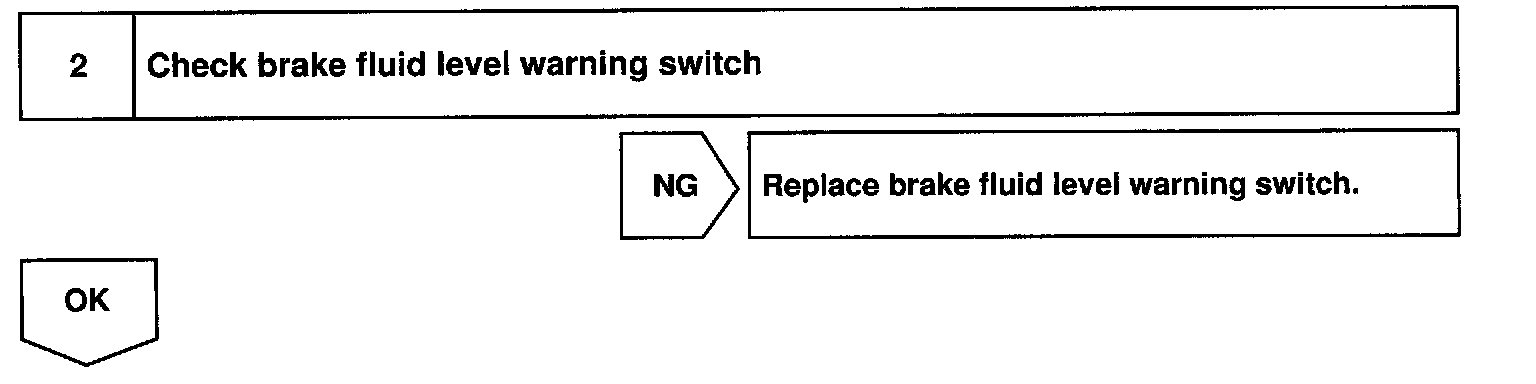

Step 2:

Step 3:

INSPECTION PROCEDURE
