ABS W/Traction Control (TRAC)

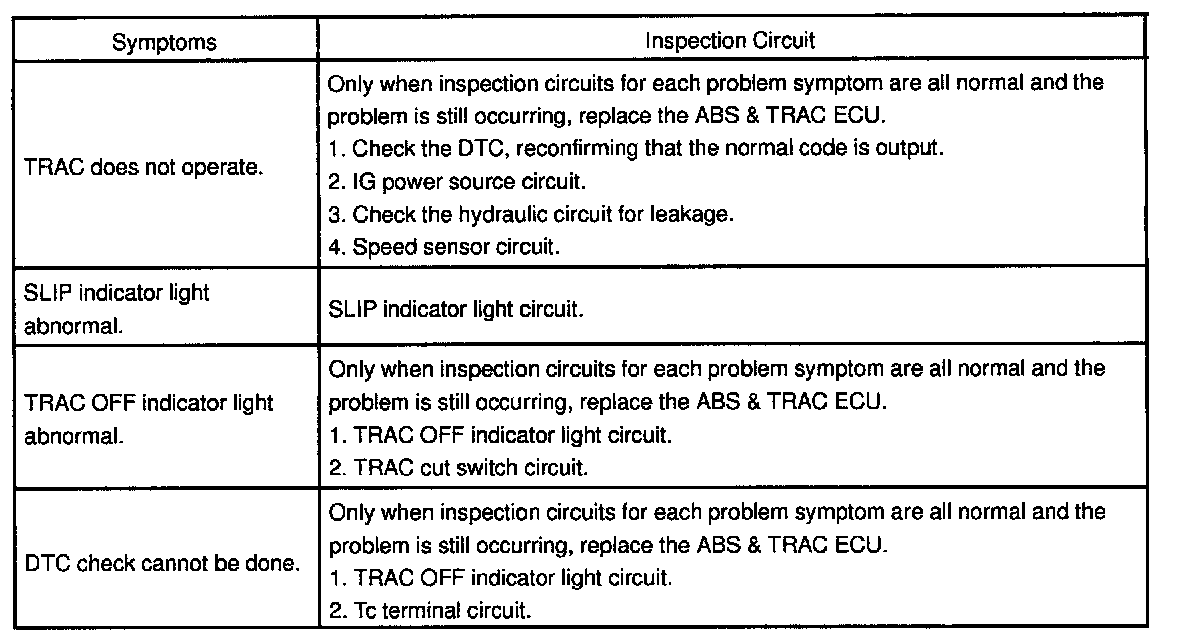

PROBLEM SYMPTOMS TABLE

NOTE: When replacing ABS & TRAC ECU or sensor etc., turn the ignition switch OFF.

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
