CIRCUIT DESCRIPTION
This is the power source for the ECU, hence the CPU, and the actuator.

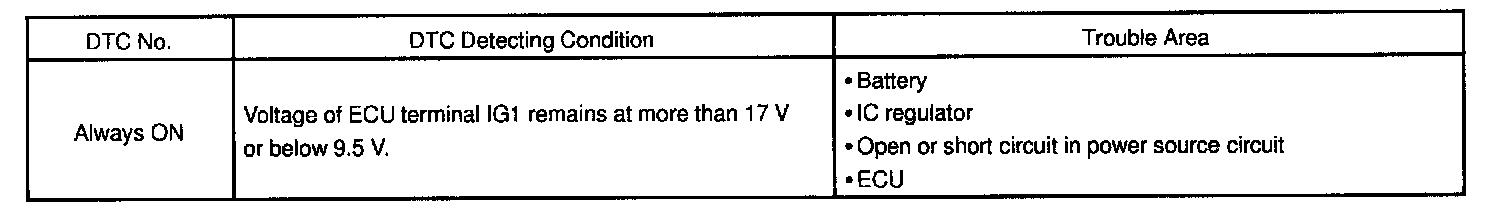

DETECTING CONDITIONS

Fail Safe Function:
If trouble occurs in the power source circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS (& TRAC) control.

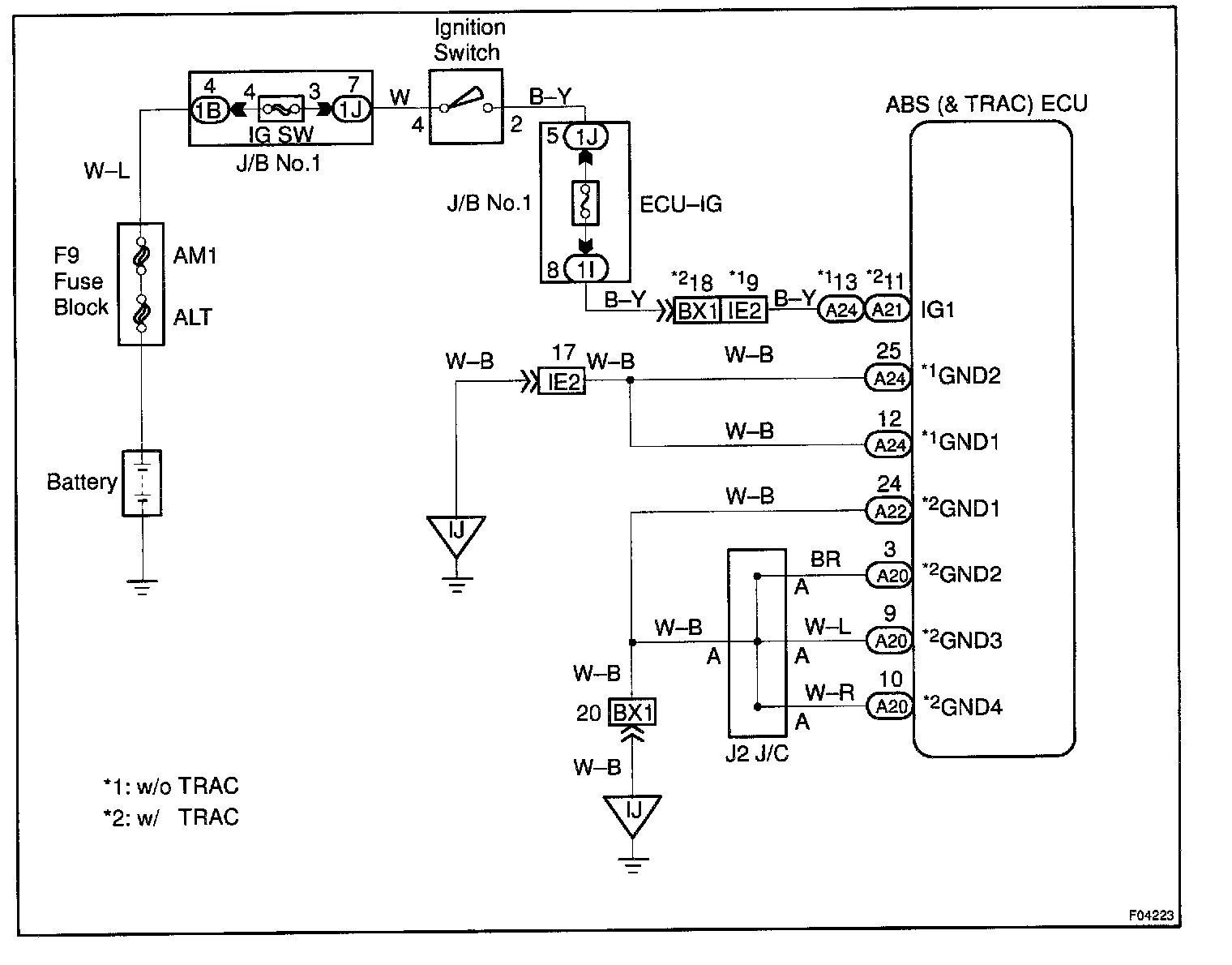

WIRING DIAGRAM

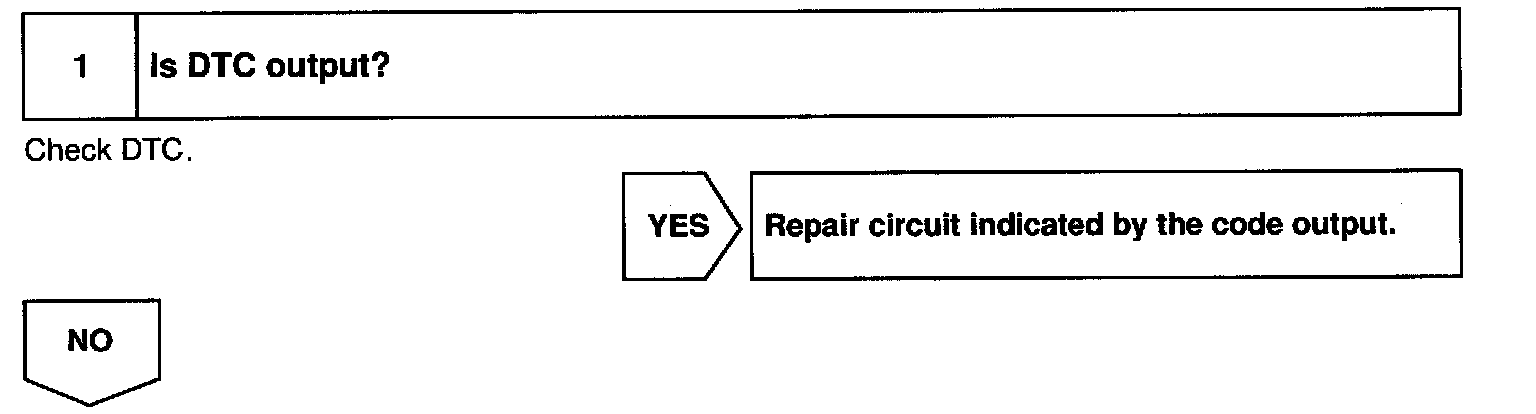

Step 1:

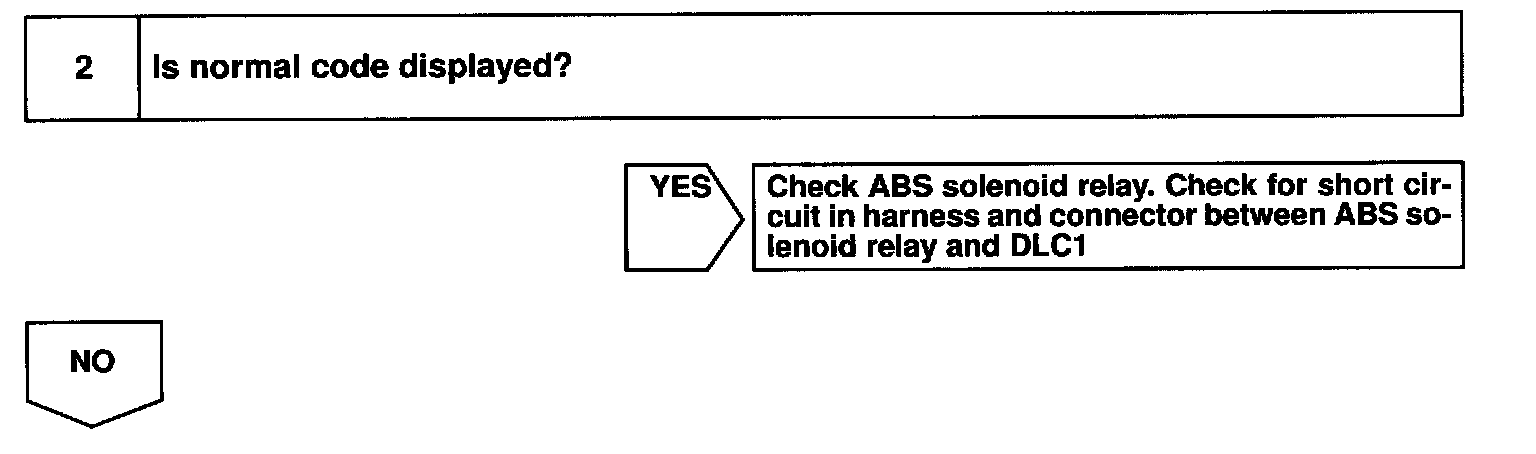

Step 2:

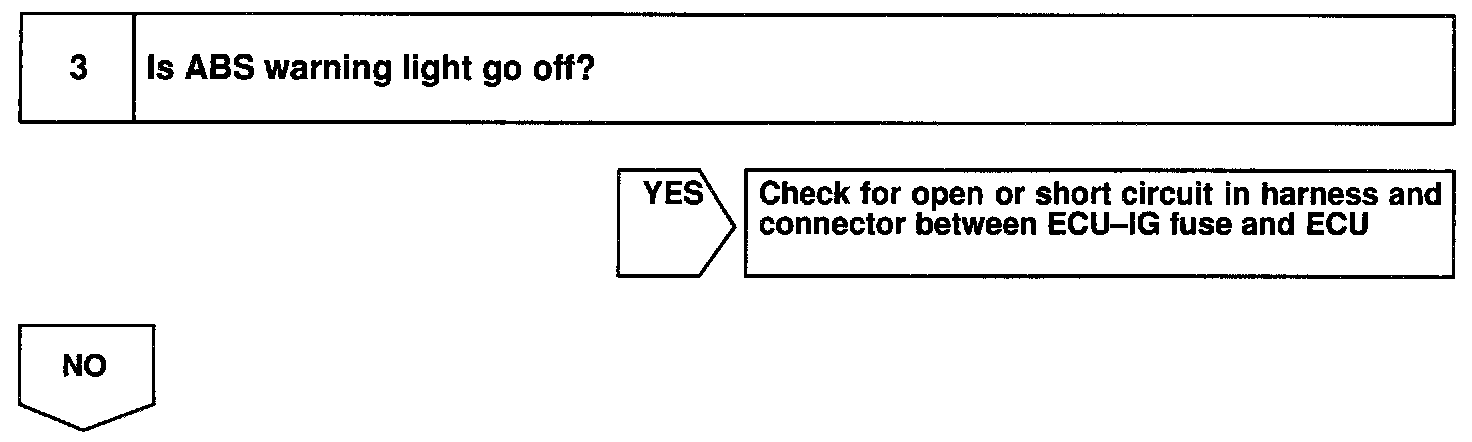

Step 3:

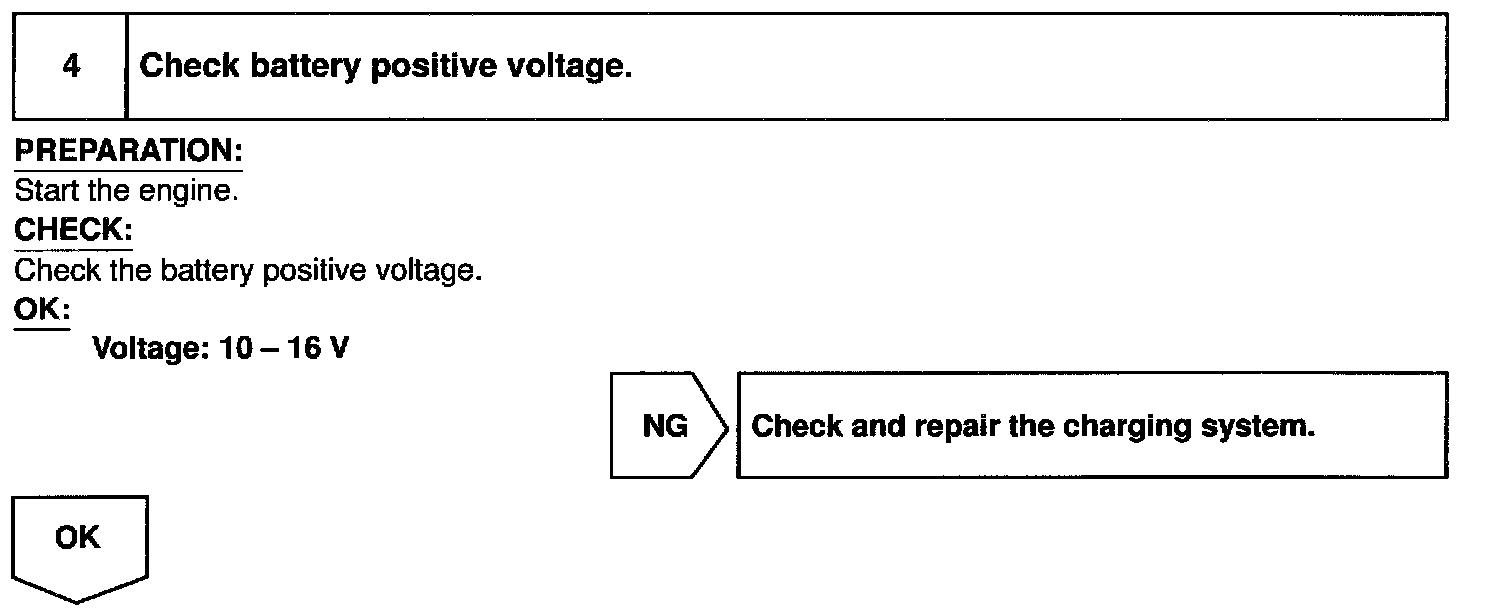

Step 4:

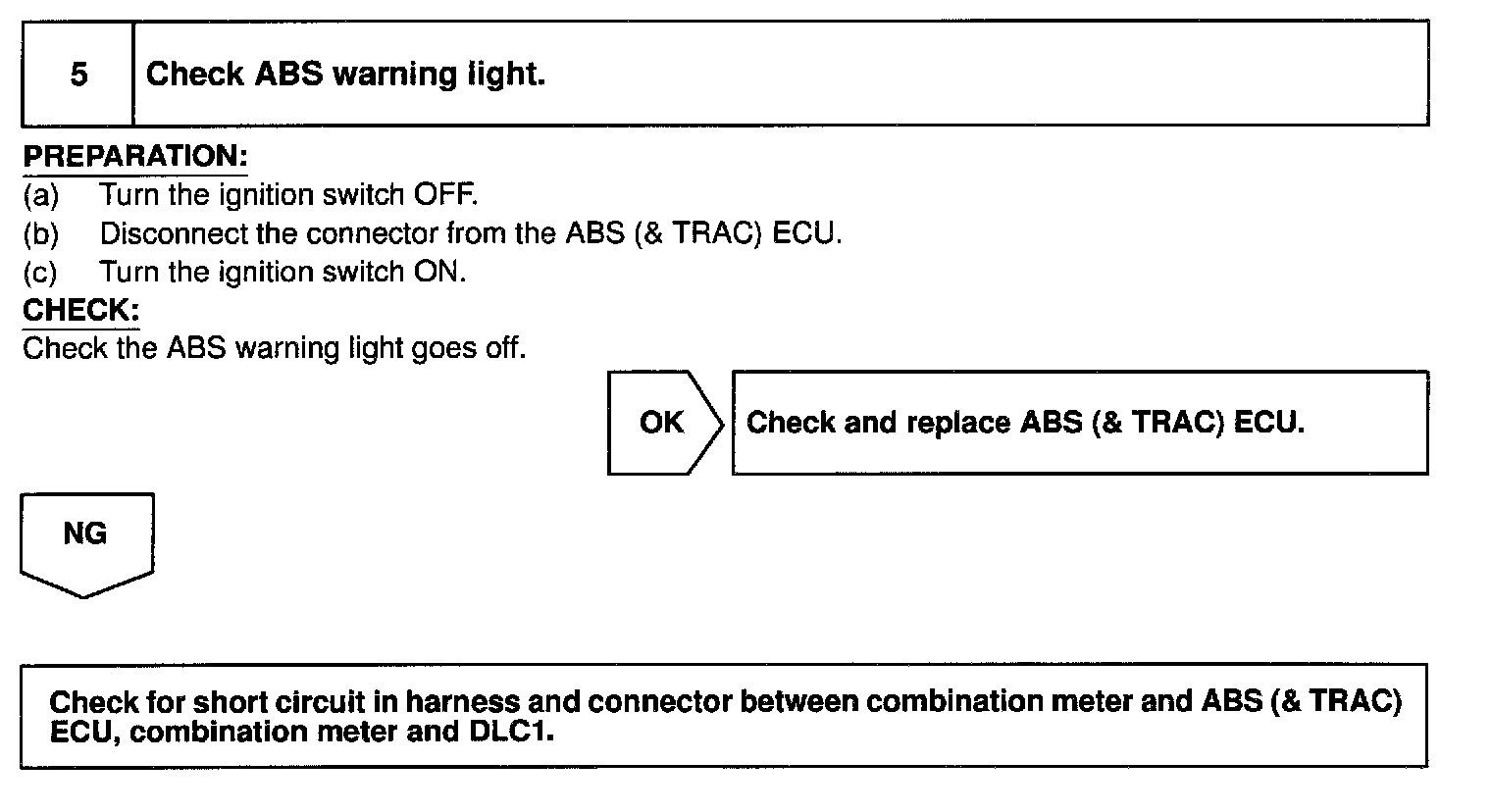

Step 5:

INSPECTION PROCEDURE
