With Manufacturer Scan Tool




Using LEXUS hand-held tester, check the DTC.

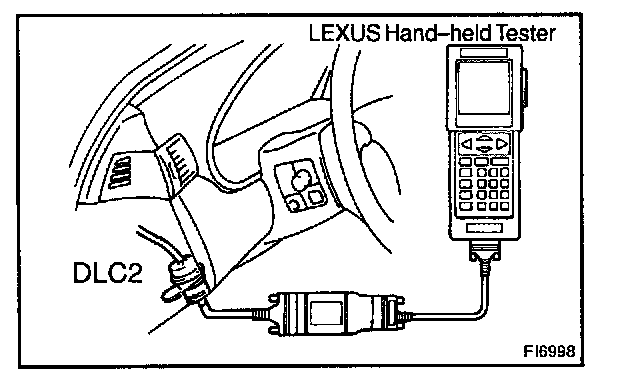

1. Hook up the LEXUS hand-held tester to the DLC2.
2. Turn the ignition switch ON.
3. Read the DTC by following the prompts on the tester screen.
Please refer to the LEXUS hand-held tester operator's manual for further details.
