Tc Terminal Circuit

CIRCUIT DESCRIPTION
By connecting terminals Tc and El of DLC1 or DLC2, the ECU displays the DTC by blinking the TRAC OFF indicator light.

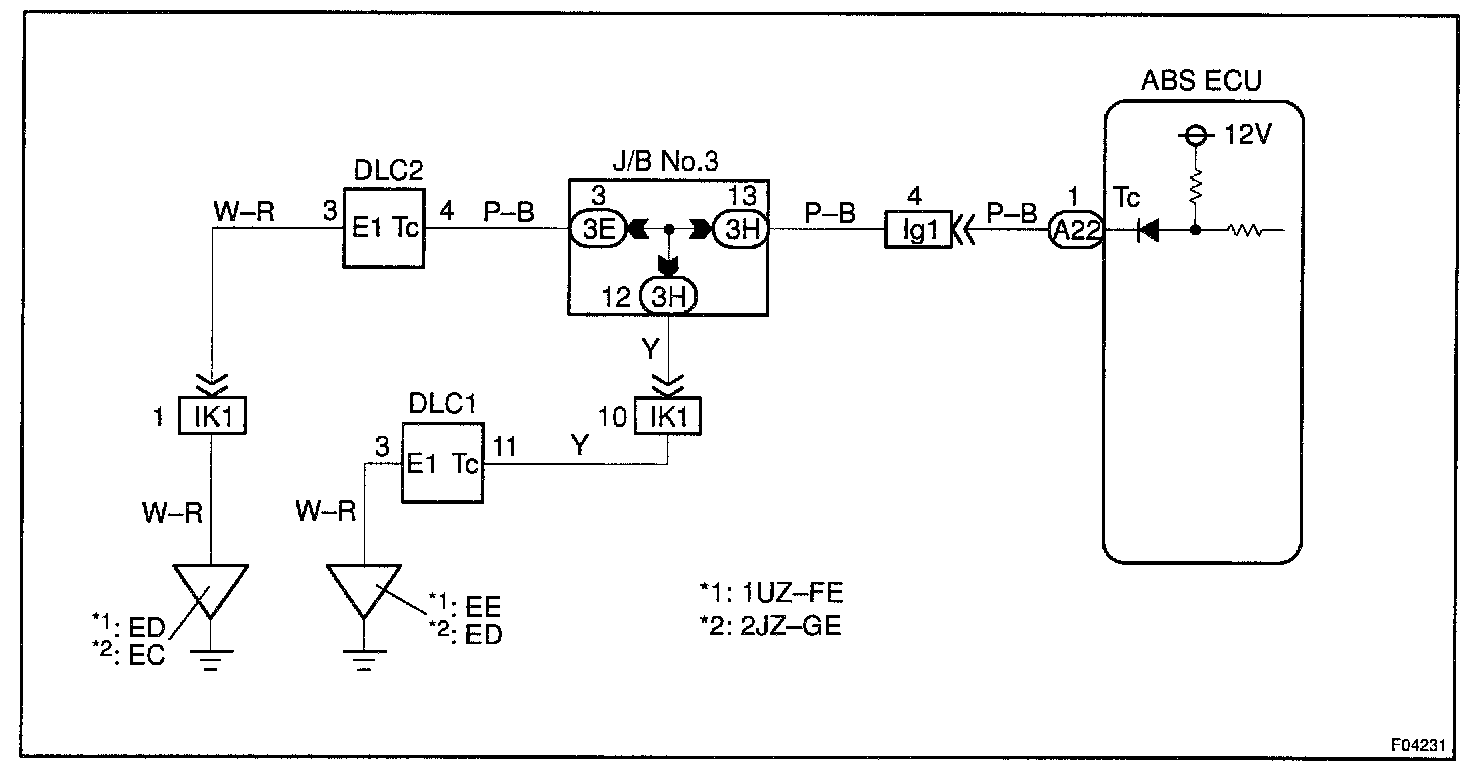

WIRING DIAGRAM

Step 1:

Step 2:

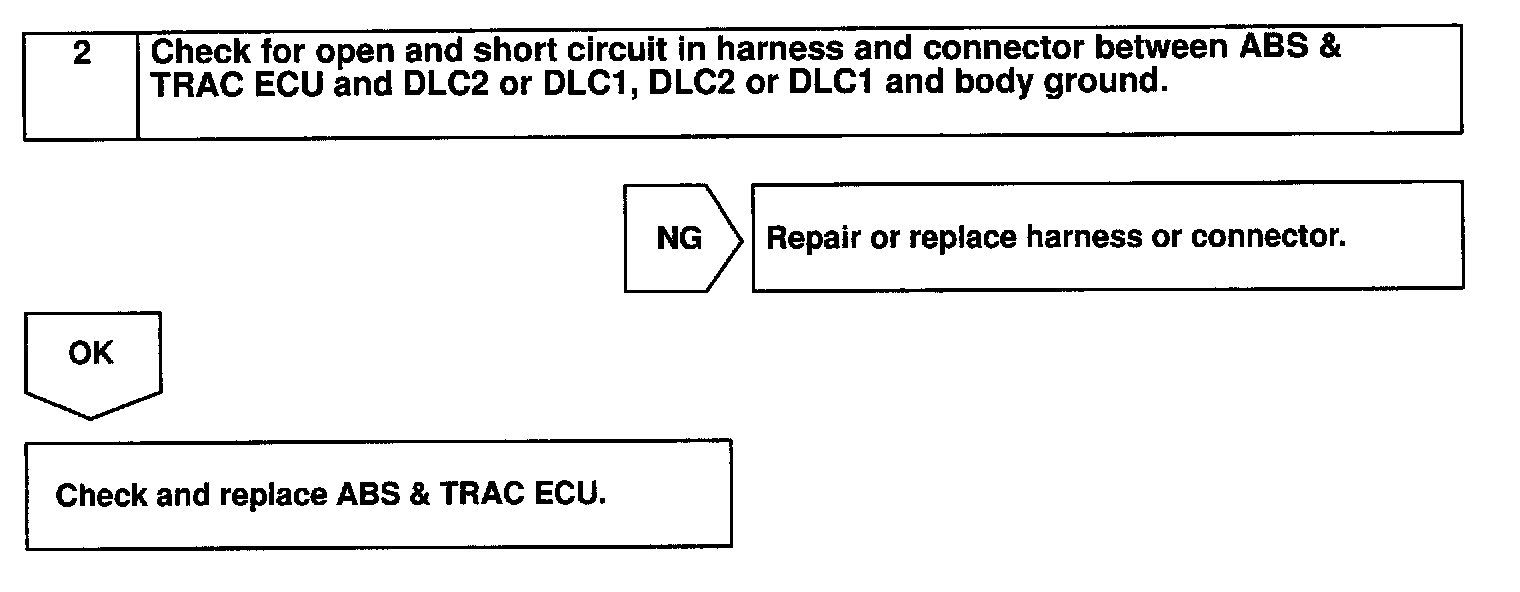

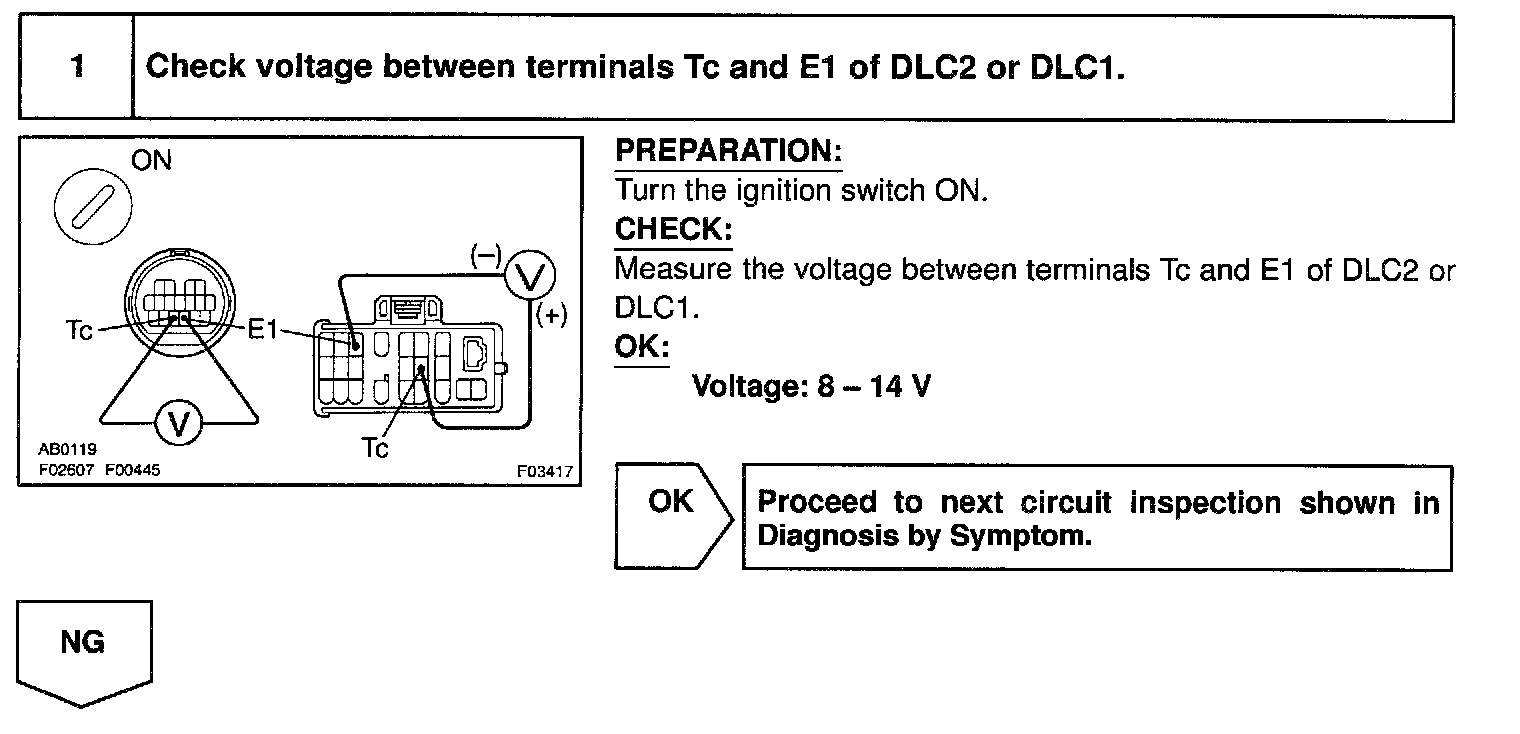

INSPECTION PROCEDURE
