Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting terminals Tc and E1 of the DLC1 or DLC2 causes the ECU to display the DTC by flashing the ABS warning light.

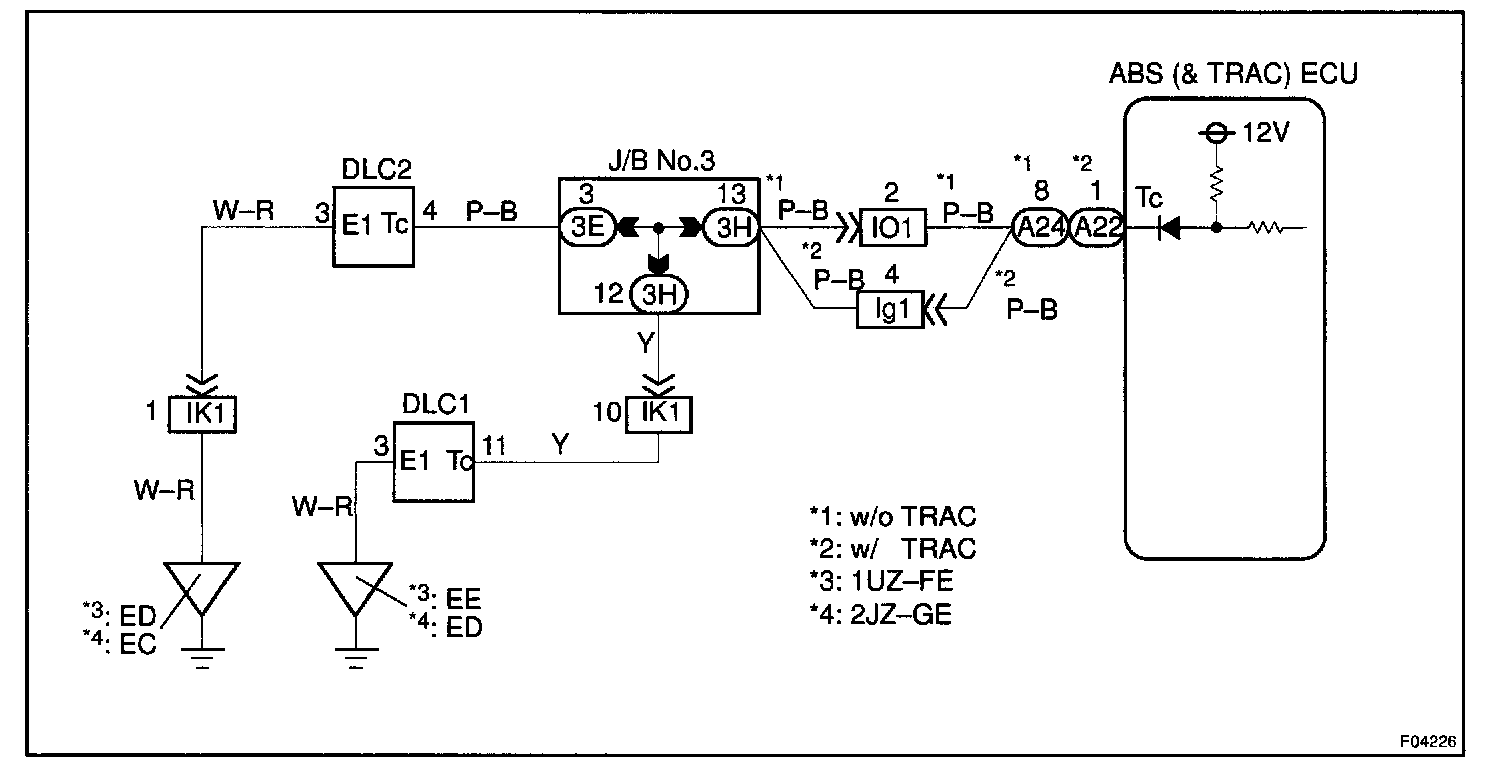

WIRING DIAGRAM
Step 1:
Step 2:

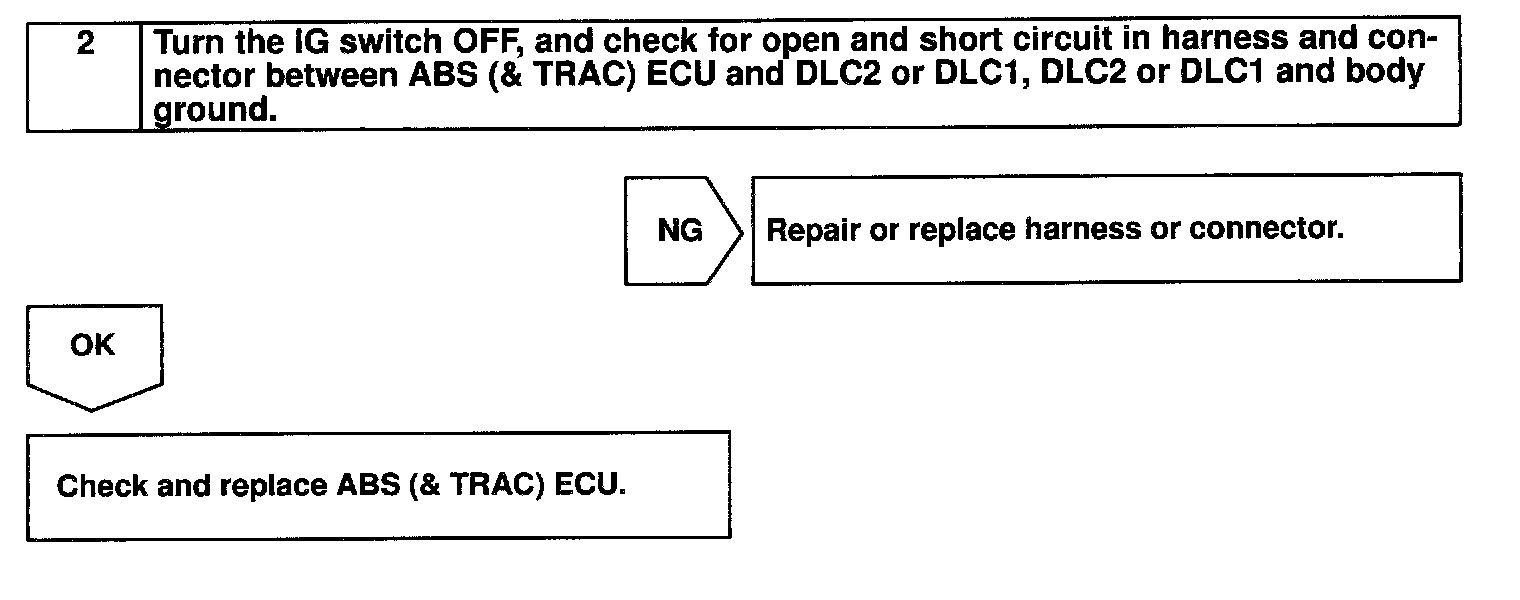

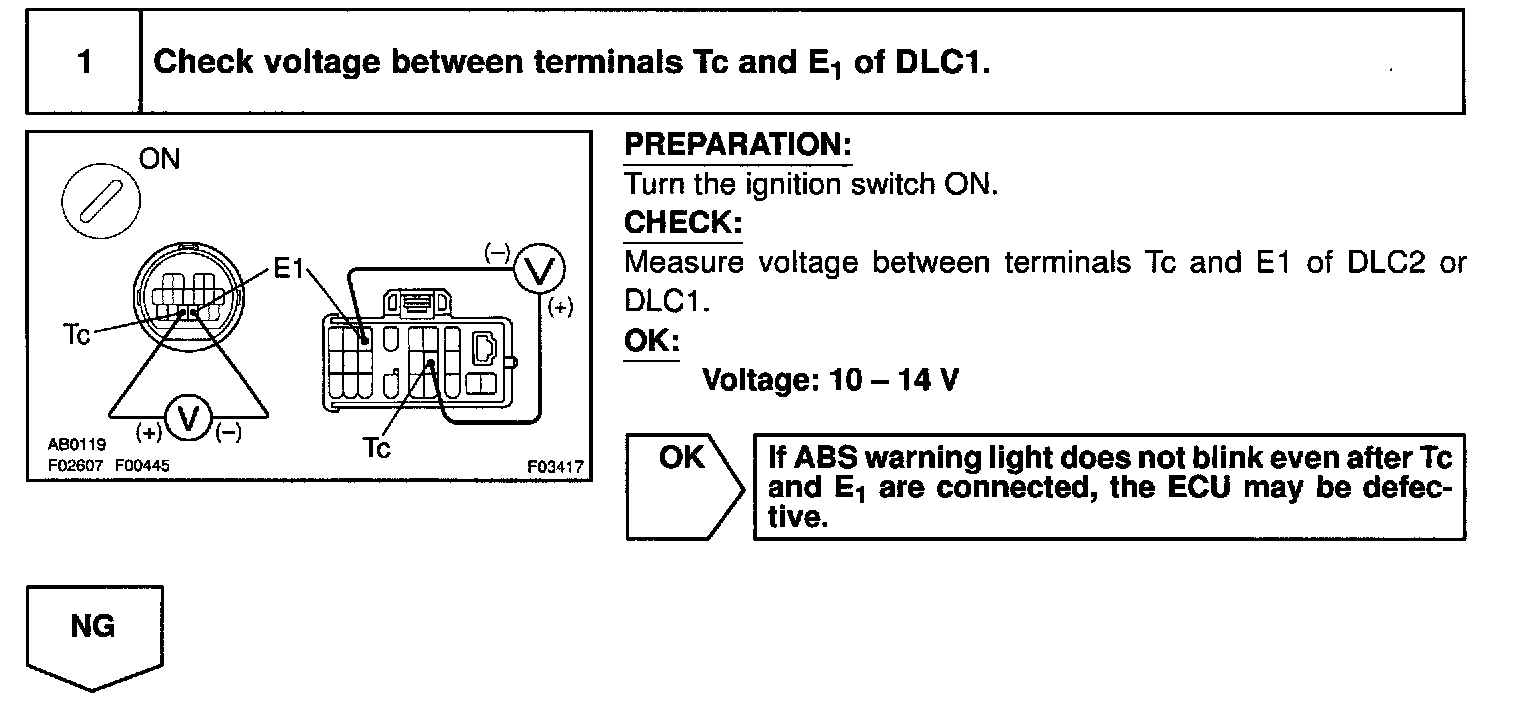

INSPECTION PROCEDURE
Connecting terminals Tc and E1 of the DLC1 or DLC2 causes the ECU to display the DTC by flashing the ABS warning light.
WIRING DIAGRAM
INSPECTION PROCEDURE
