With Lexus Hand-Held Tester

Check the DTC.
1. Turn the ignition switch OFF.




2. Using SST connect terminals Ts and E1 of DLC1.
SST 09843-18020
3. Start the engine.




4. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit.

5. Drive vehicle straight forward.

HINT: Drive vehicle faster than 45 KPH (28 MPH) for several seconds.

6. Stop the vehicle.

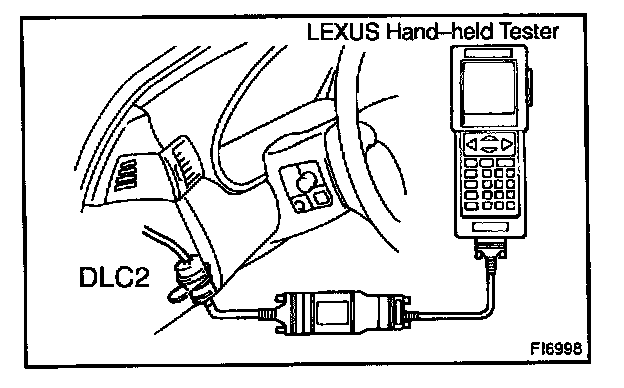

7. Hook up the LEXUS hand-held tester to the DLC2.
8. Read the DTC by following the prompts on the tester screen.
Please refer to the LEXUS hand-held tester operator's manual for further details.

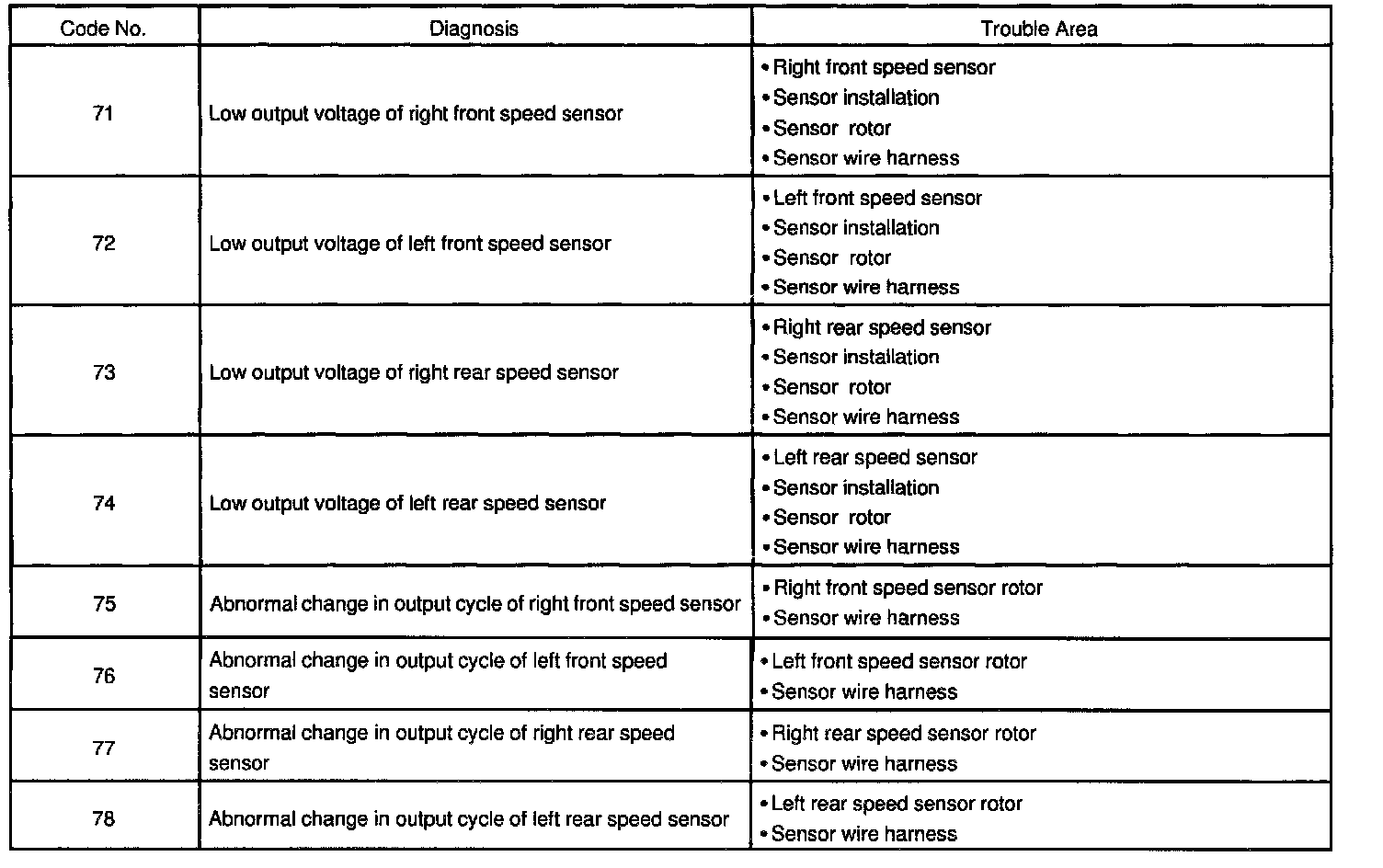

DTC Of The Speed Sensor Check Function
