Slide Motor Power Source Circuit
Slide Motor Power Source Circuit
Passenger's Side
CIRCUIT DESCRIPTION
This is the power source for slide motor

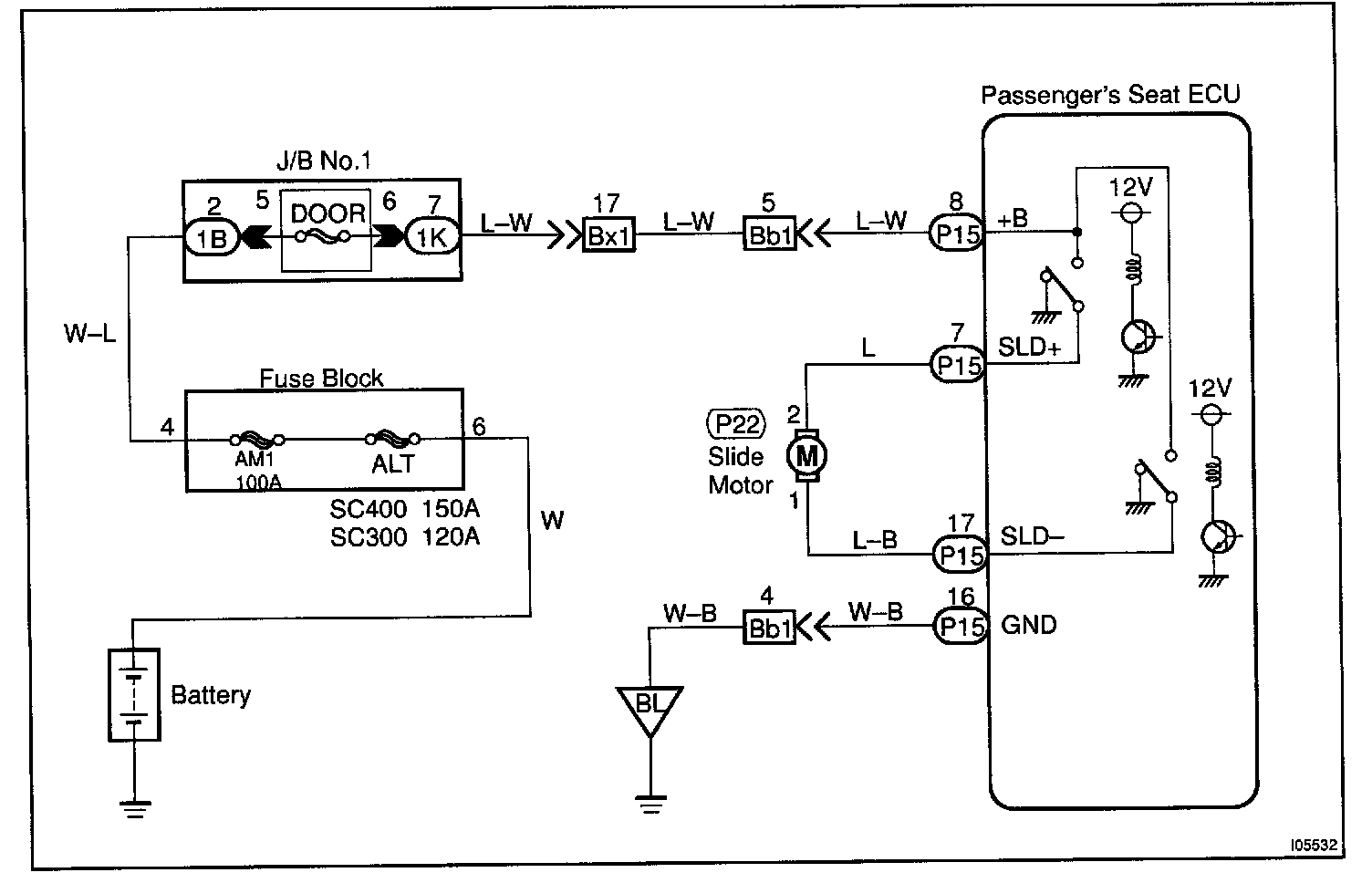

Wiring Diagram:

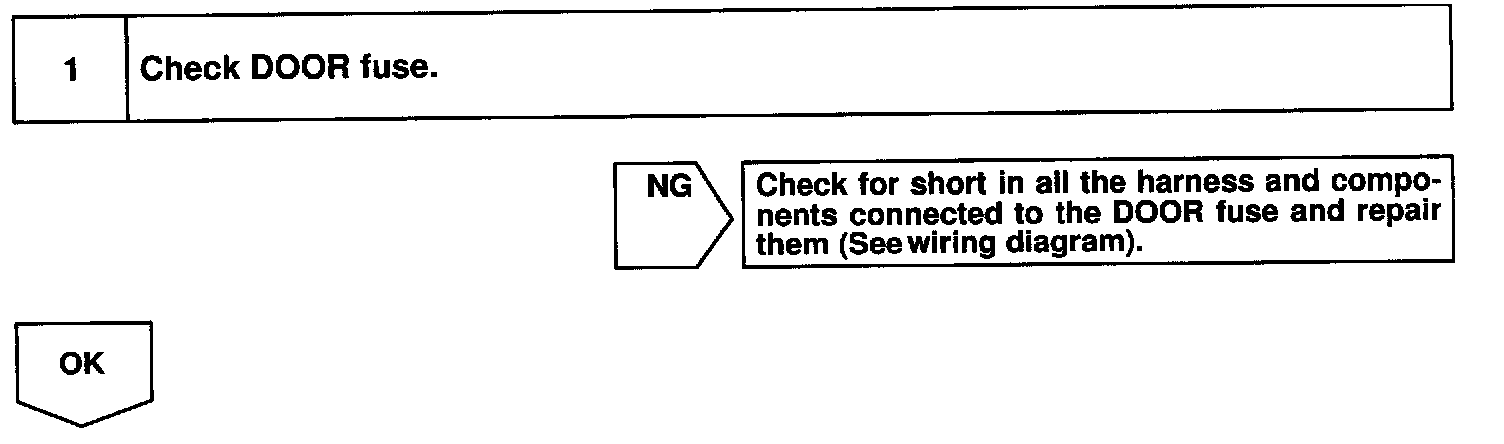

Step 1:

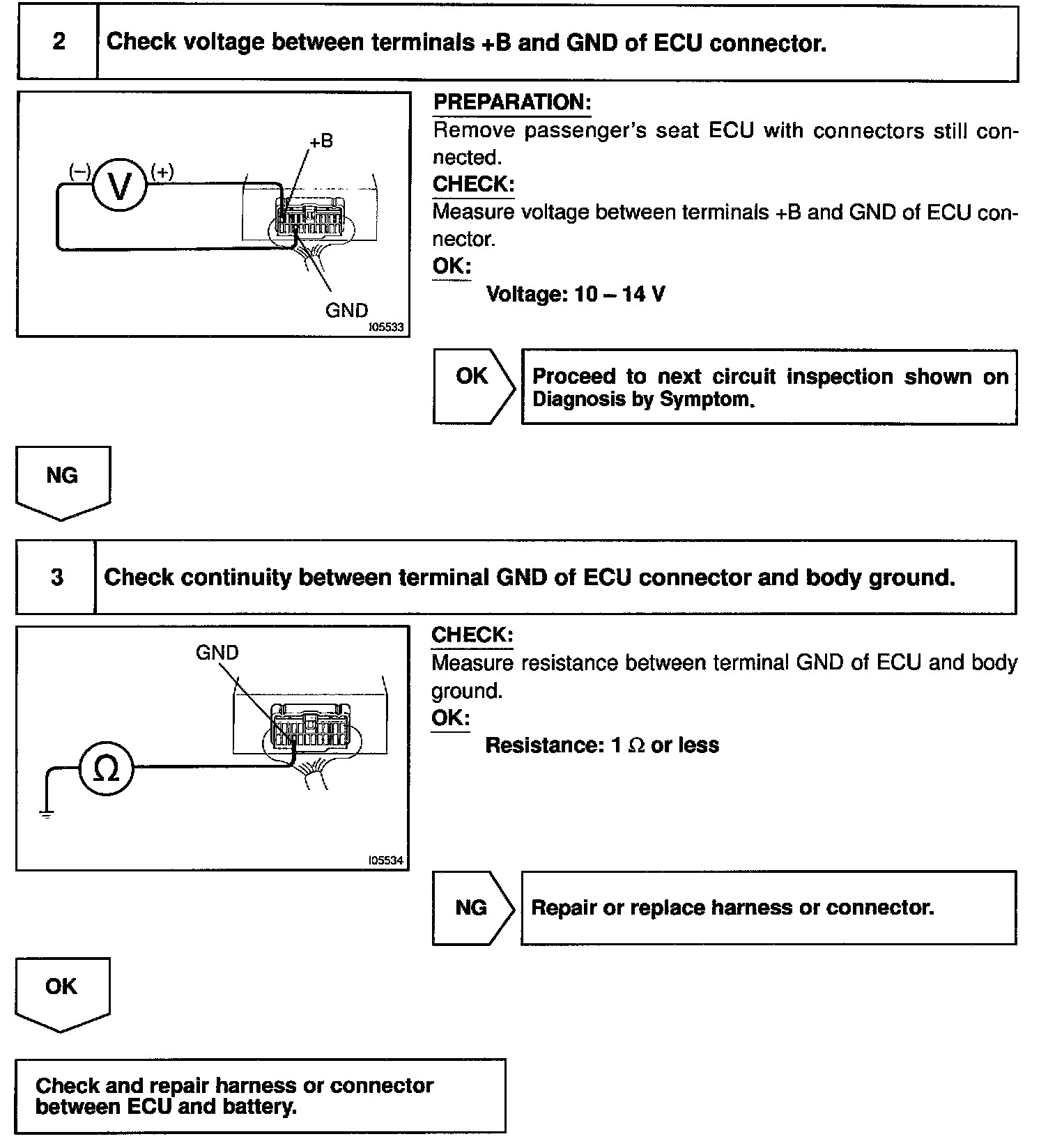

Step 2 - 3:
INSPECTION PROCEDURE
