Position Sensor Power Source Circuit

Driver's Side

CIRCUIT DESCRIPTION
The circuit provides power to the slide, front vertical, rear vertical and reclining sensors.

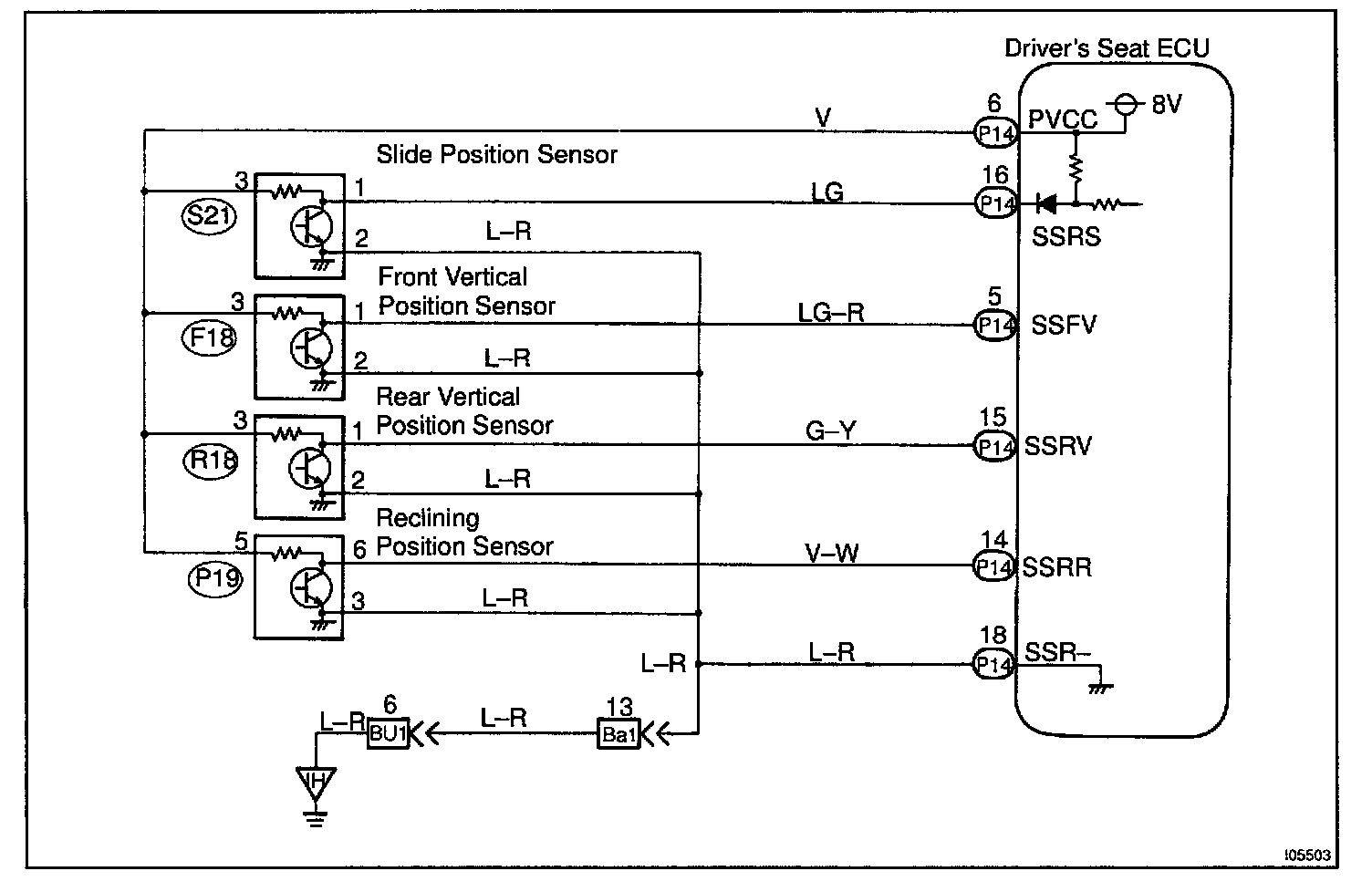

Wiring Diagram:

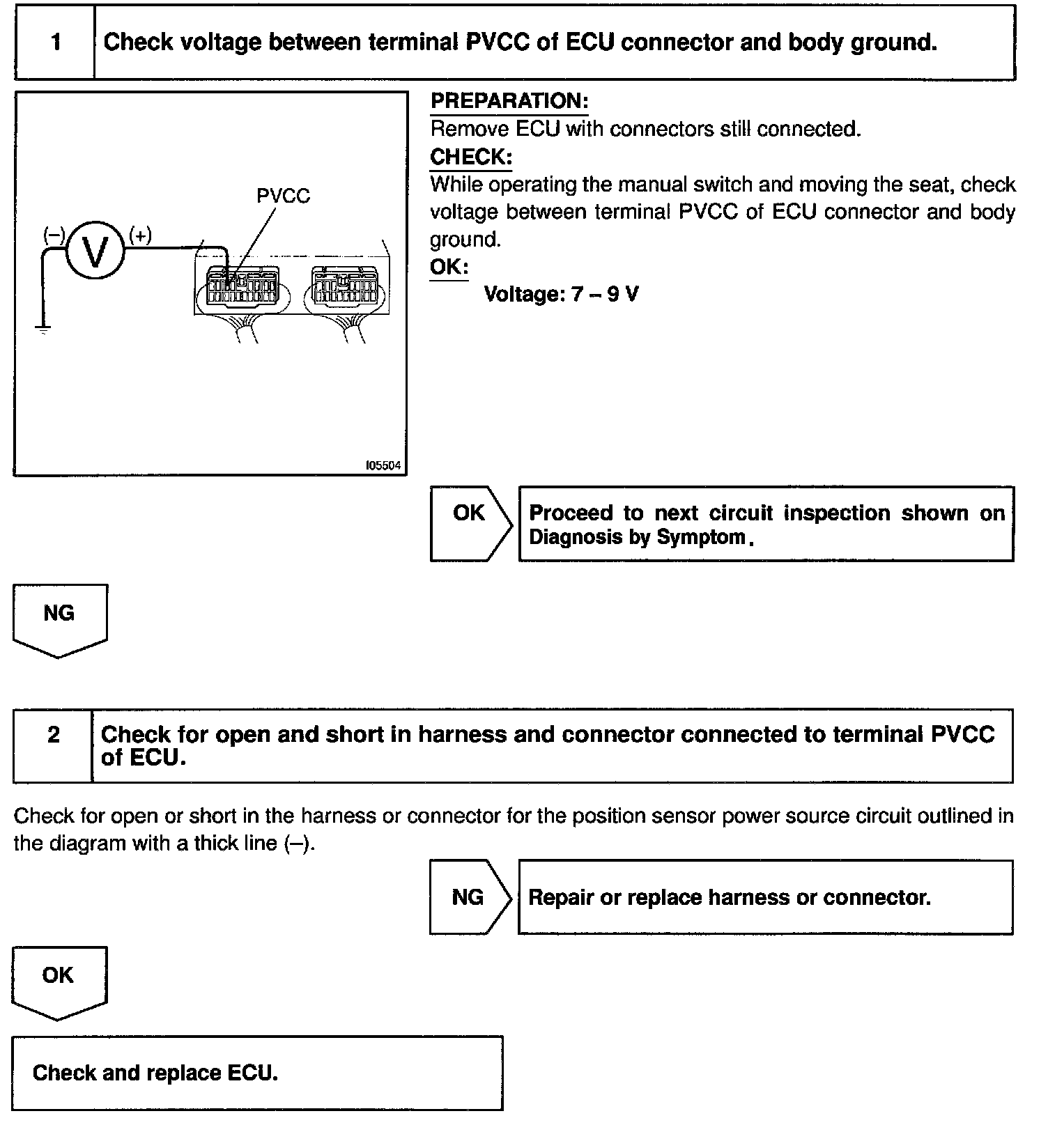

Step 1 - 2:

INSPECTION PROCEDURE
