Driver's Side

Driver's Side

CIRCUIT DESCRIPTION
This circuit provides power for ECU operation and is also the power source for the sensors.

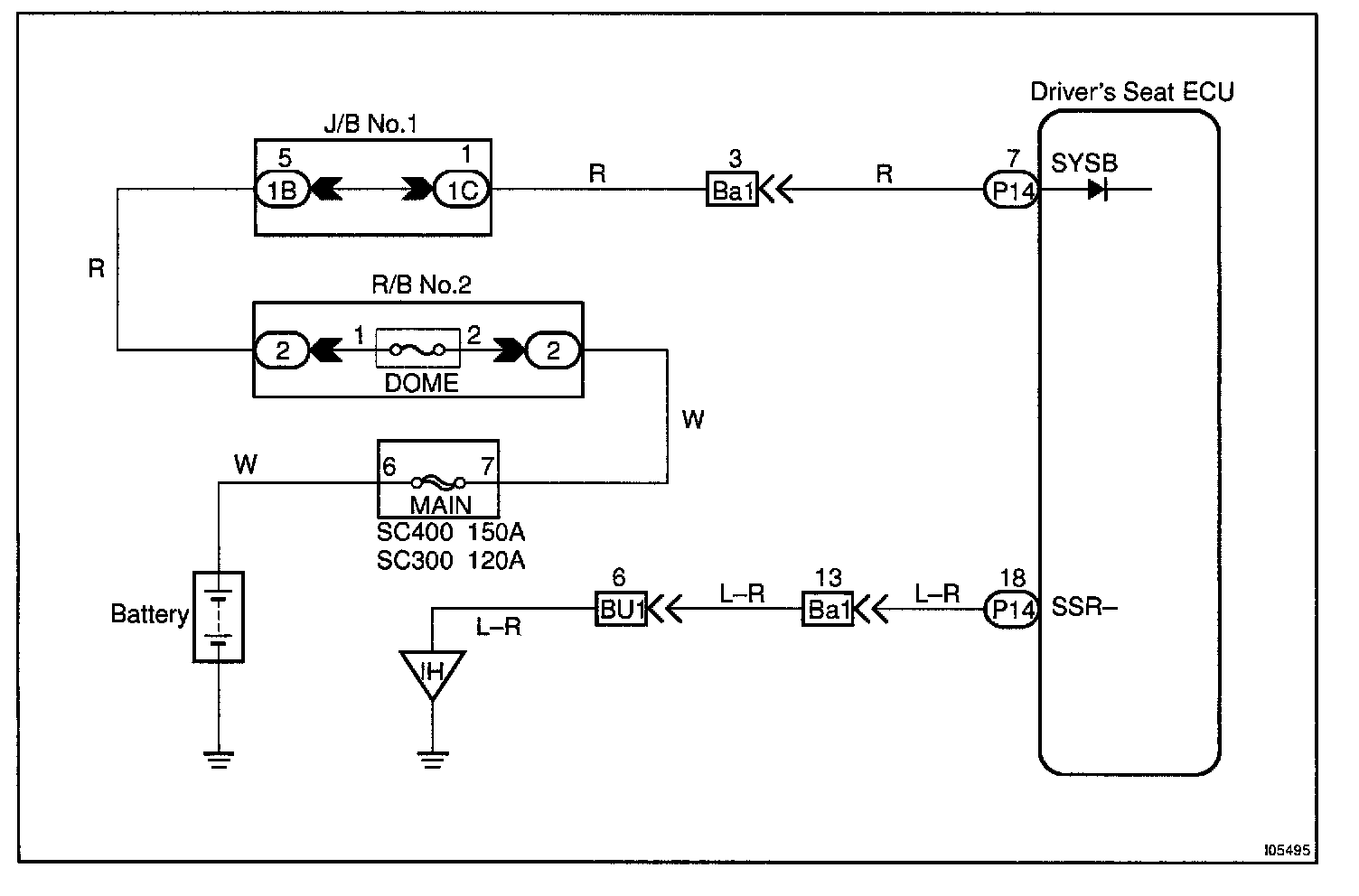

Wiring Diagram:

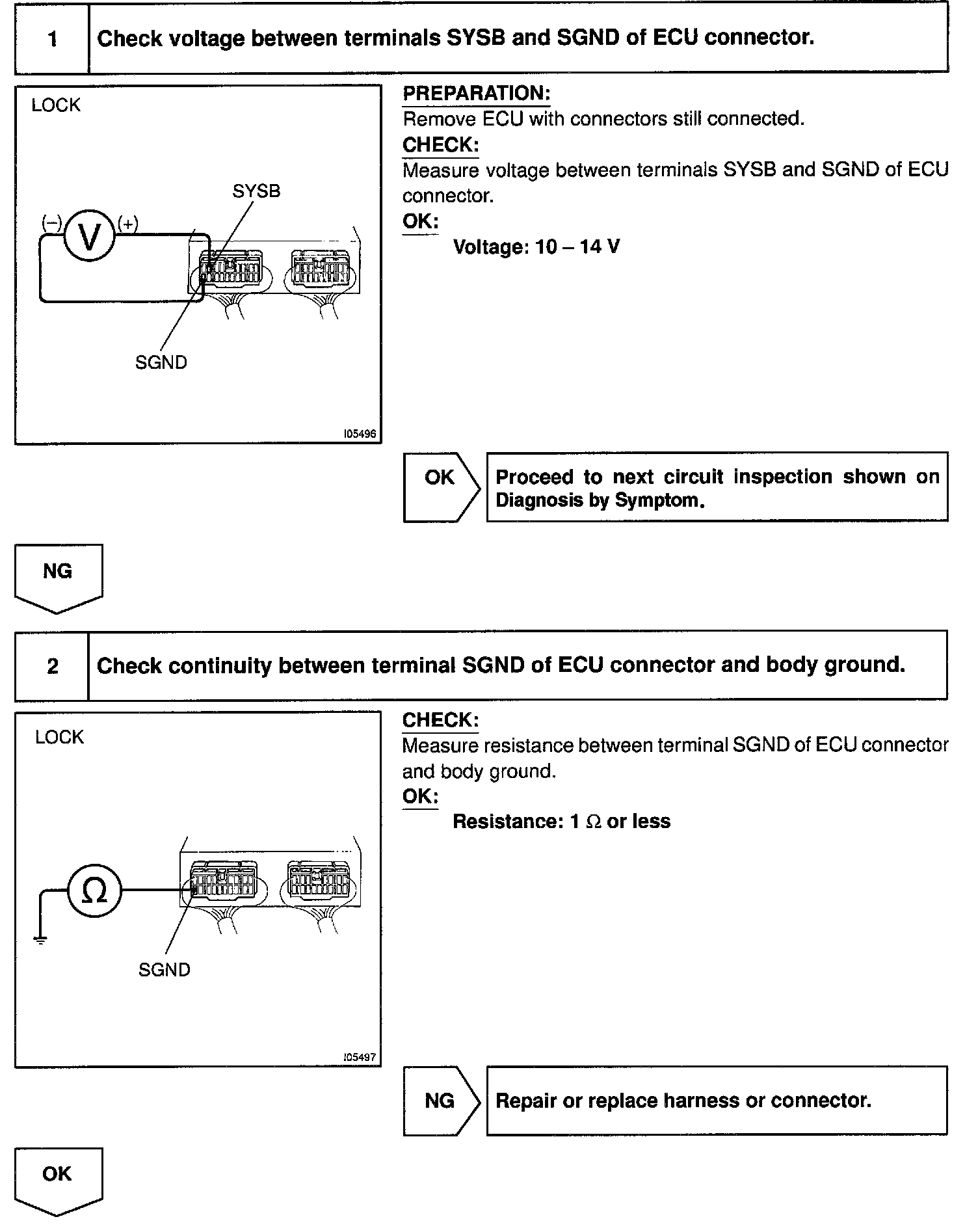

Step 1 - 2:




Step 3:




INSPECTION PROCEDURE
