Luggage Compartment Door Opener Motor Circuit

Luggage Compartment Door Opener Motor Circuit

CIRCUIT DESCRIPTION
This circuit unlocks the luggage compartment door when the ECU sends signals to the luggage compartment door opener motor.

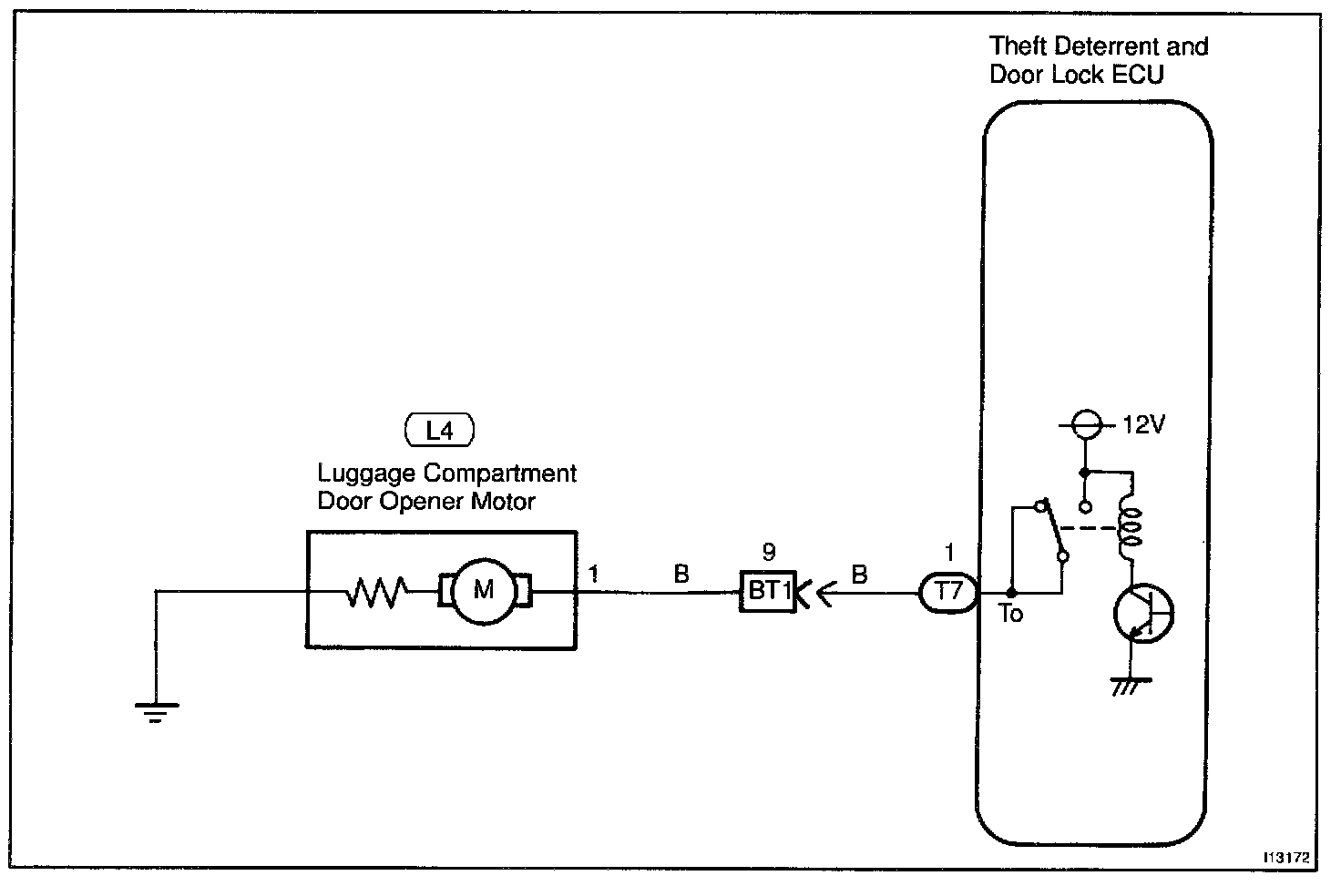

Wiring Diagram:

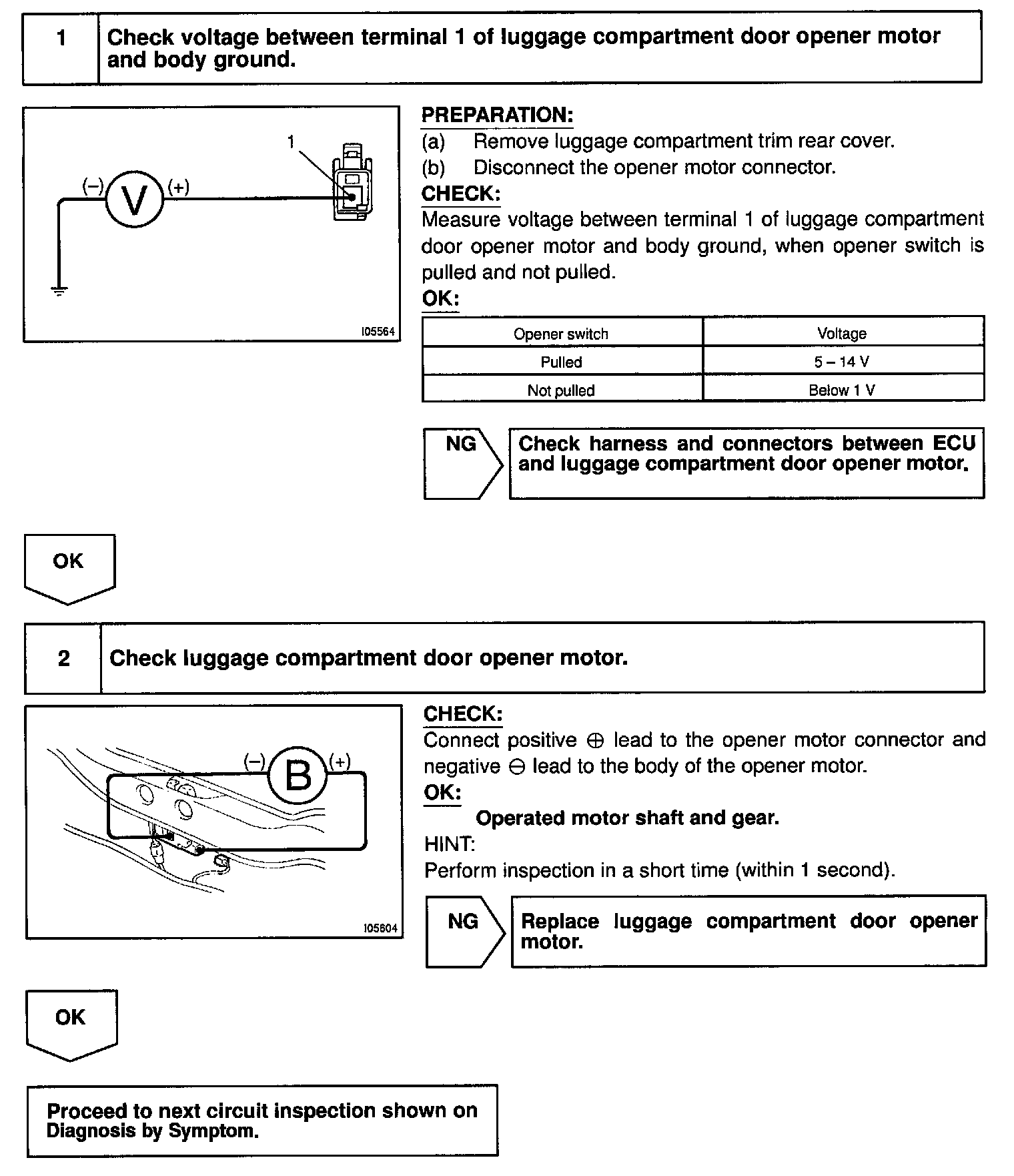

Step 1 - 2:




INSPECTION PROCEDURE
