Luggage Compartment Door Opener Main SW & Opener SW Circuit

Luggage Compartment Door Opener Main Switch and Opener Switch Circuit





CIRCUIT DESCRIPTION

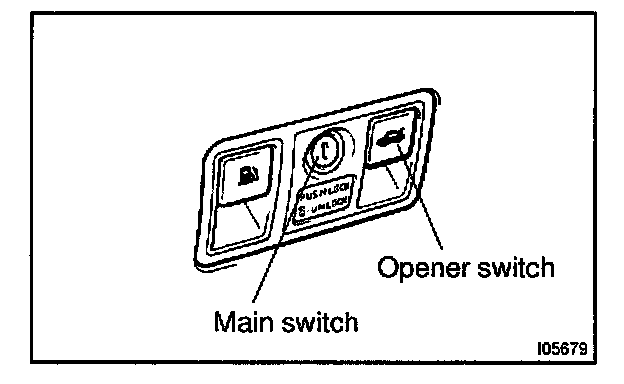

The luggage compartment door opener main switch is of when it is pushed in, and the luggage compartment door opener switch is on when it is puled.

The ECU energizes the luggage compartment door opener motor only when the main switch and opener switch are on together.

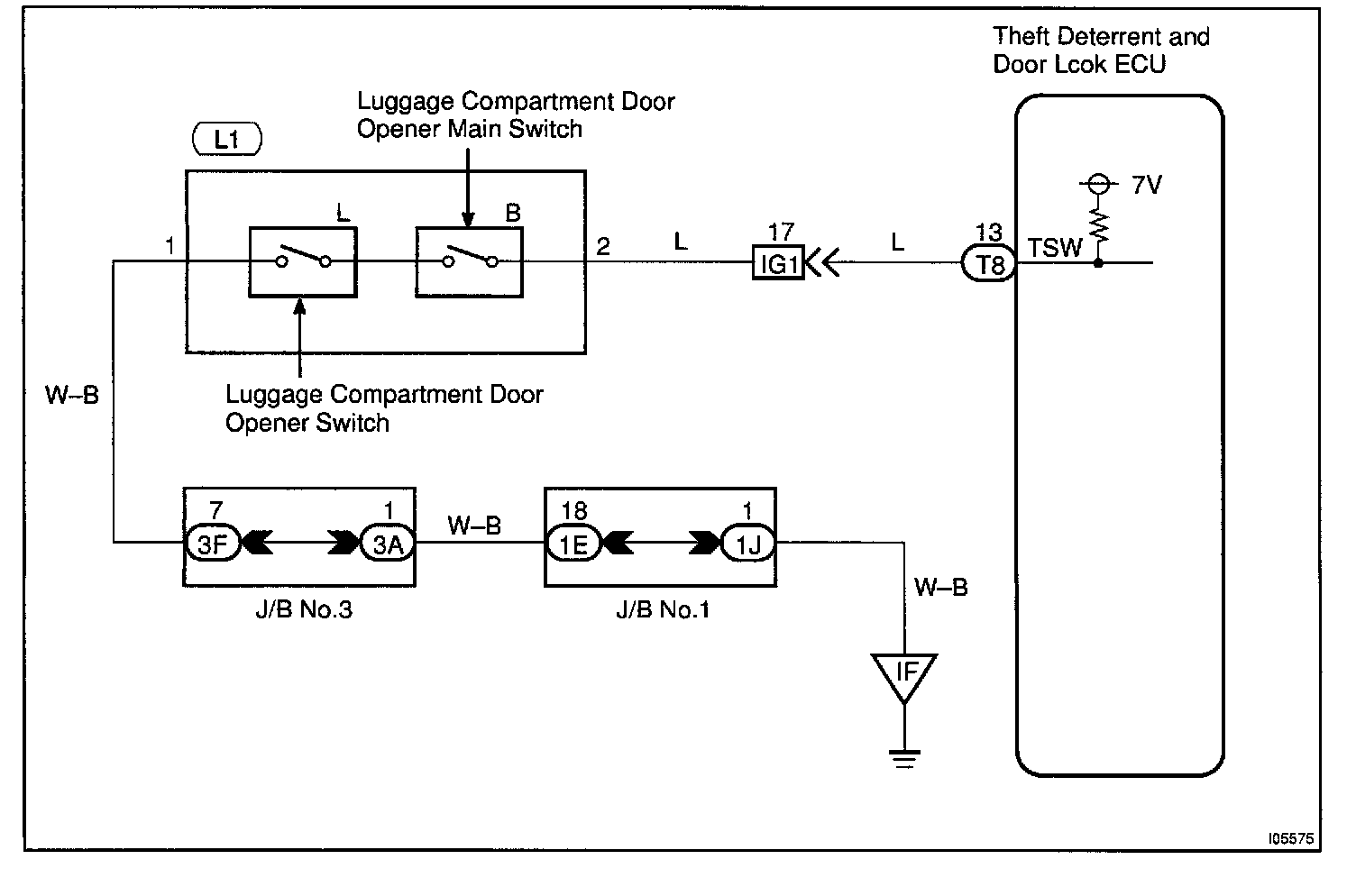

Wiring Diagram:

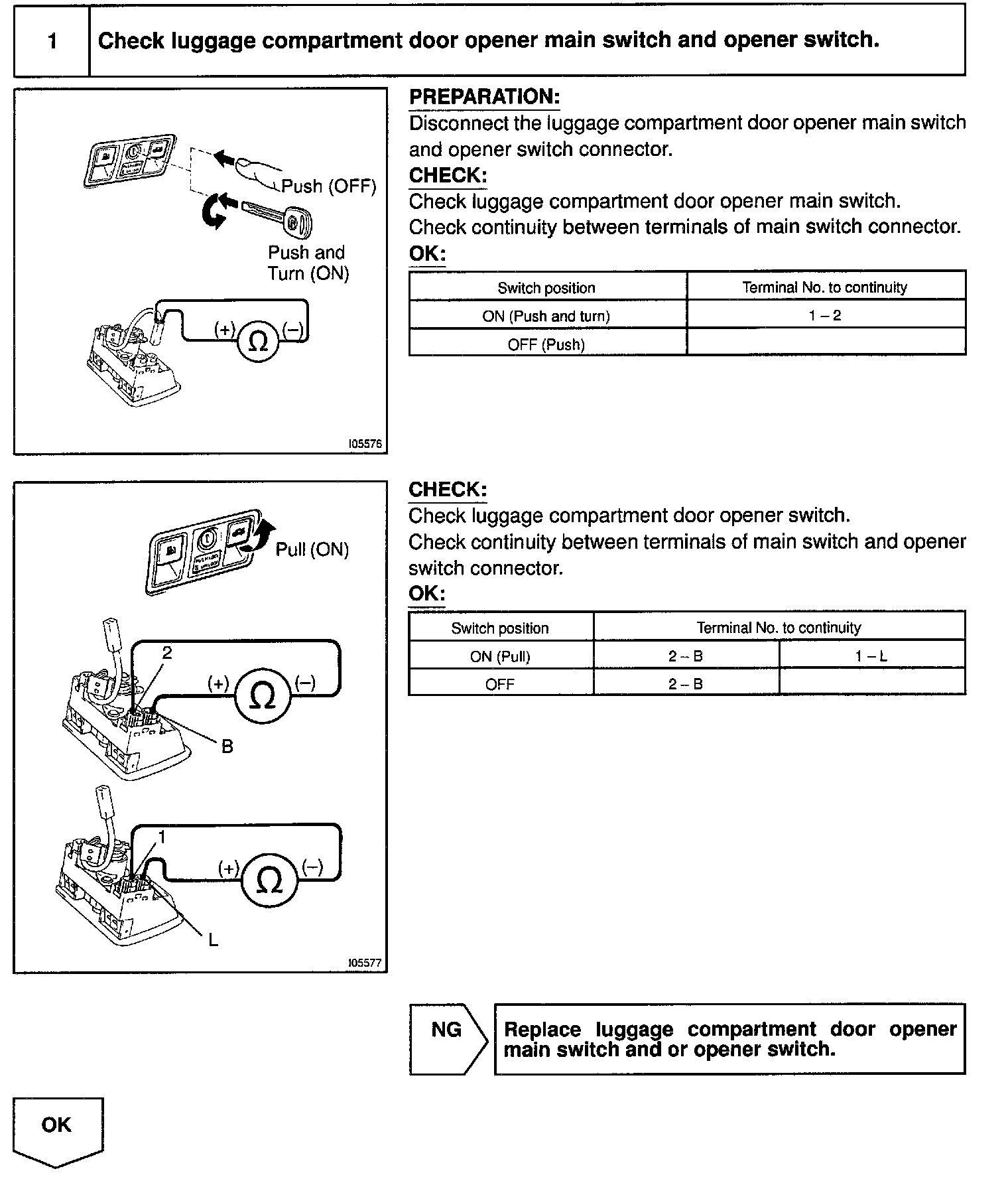

Step 1:

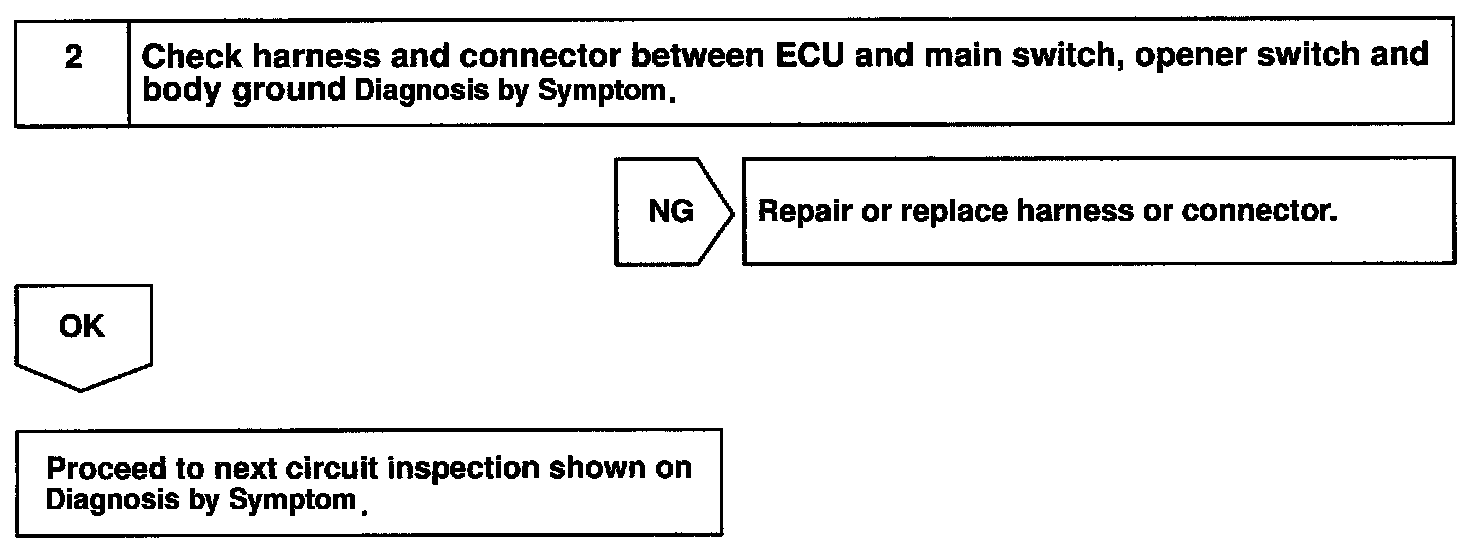

Step 2:

INSPECTION PROCEDURE
