Actuator Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to drive the door lock motor and the luggage compartment door opener motor.

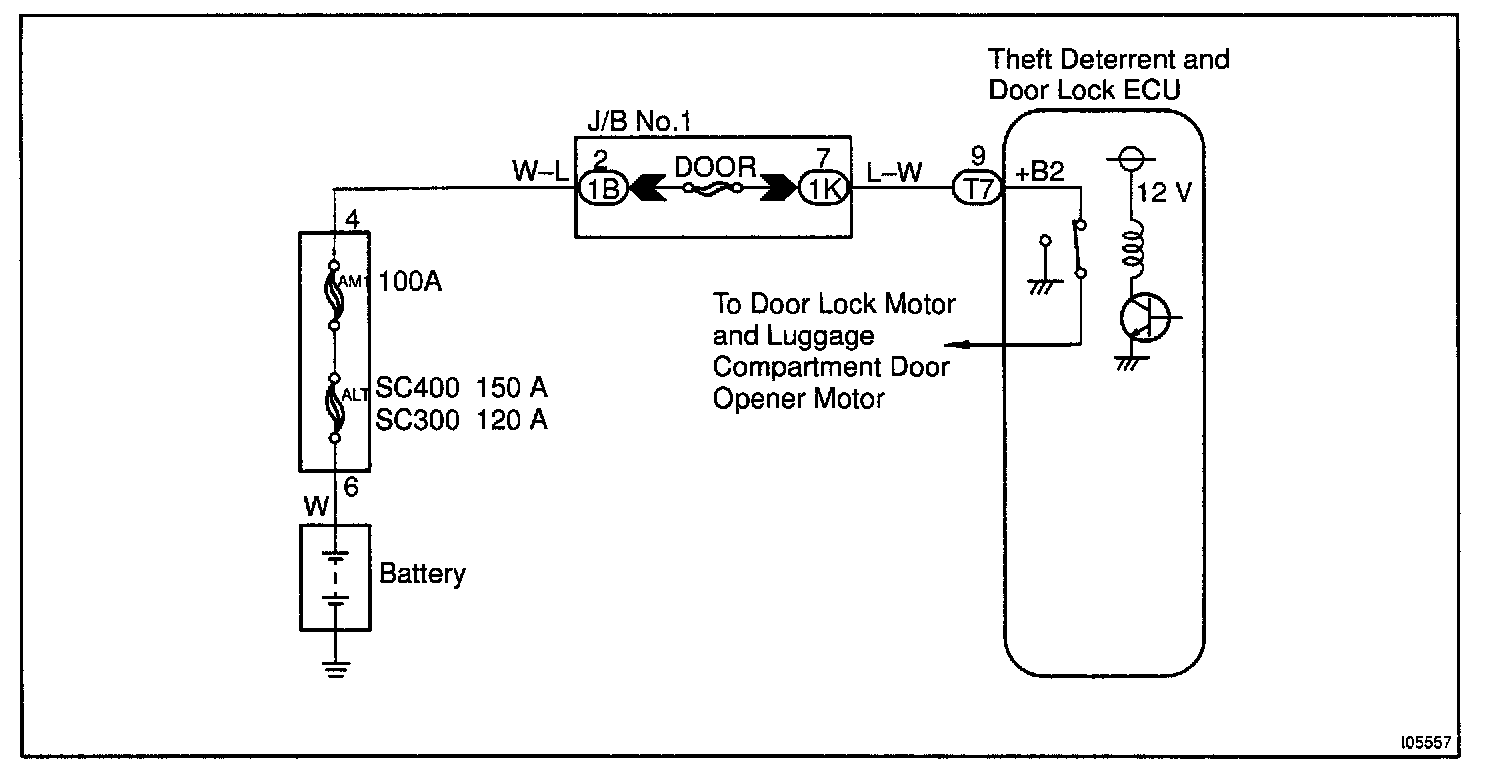

Wiring Diagram:

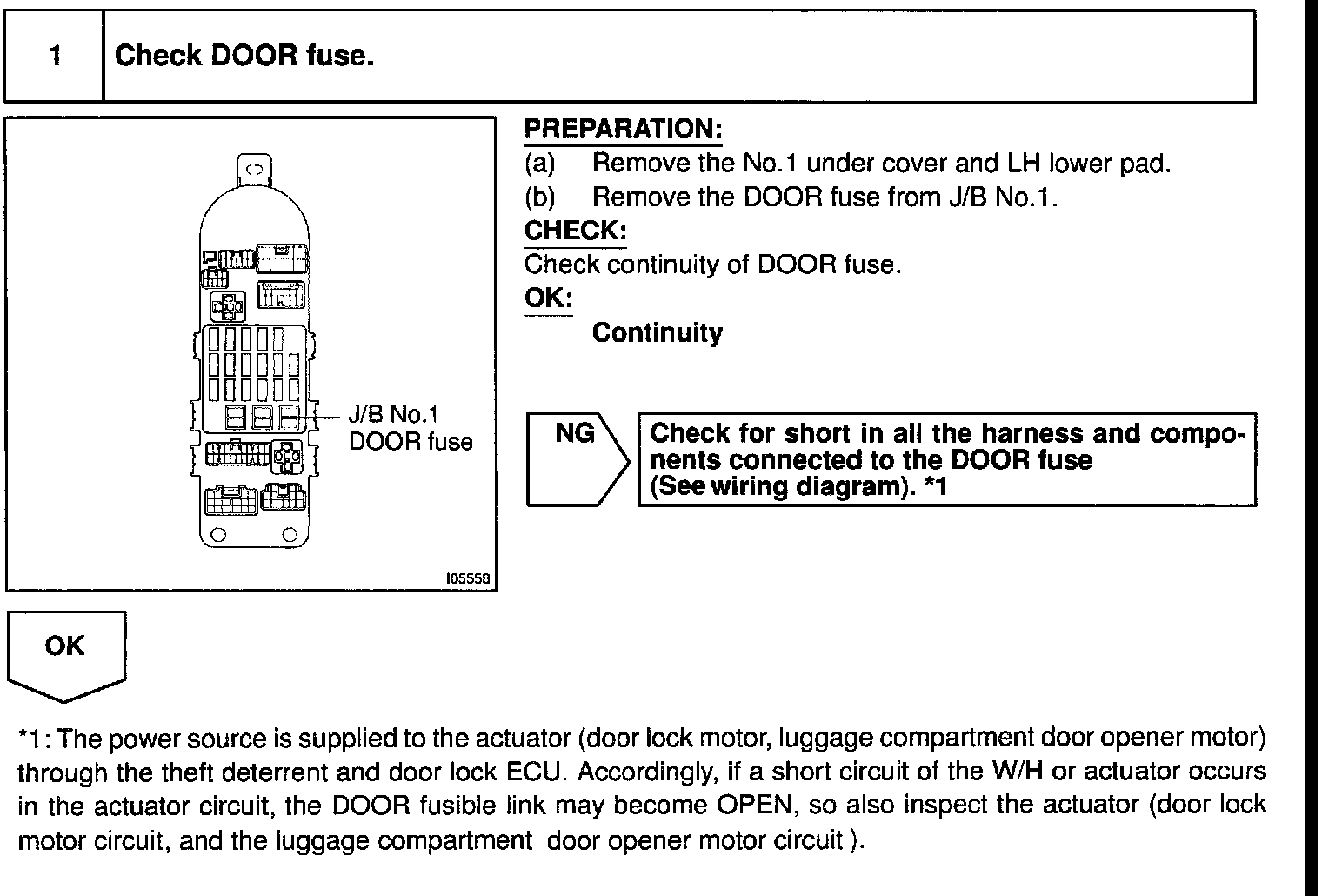

Step 1:

Step 2:

INSPECTION PROCEDURE
