Headliner: Service and Repair
REMOVAL
1. REMOVE MAP LIGHT

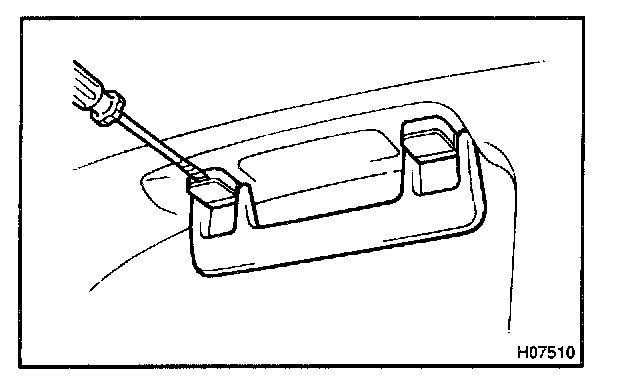

a. Using a screwdriver, remove the map light lens.
HINT: Tape the screwdriver tip before use.
b. Remove the 3 screws and light.
c. Disconnect the connector.

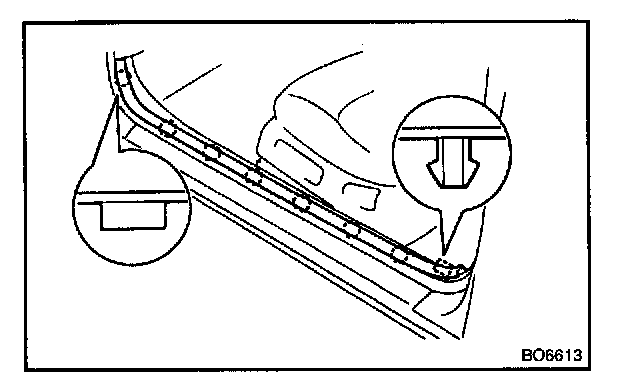

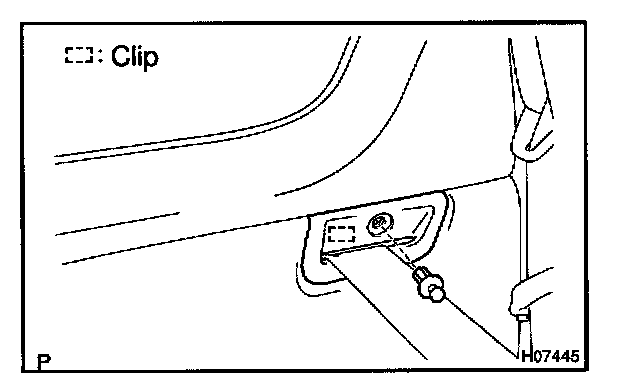

2. REMOVE FRONT SCUFF PLATE
a. Using a screwdriver, remove the plate.
HINT: Tape the screwdriver tip before use.
b. Employ the same manner described above to the other side.
3. REMOVE FRONT ASSIST GRIP

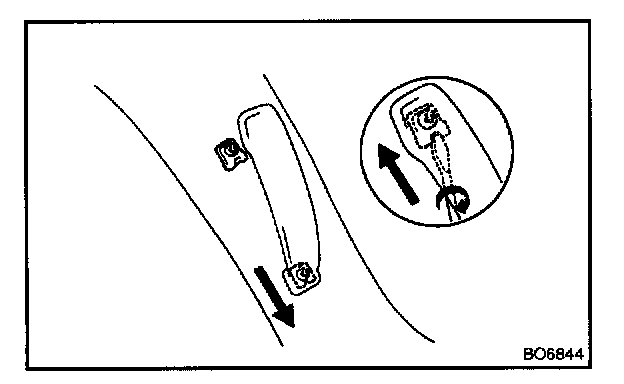

a. Using a screwdriver, remove the assist grip.
b. Employ the same manner described above to the other side.
4. REMOVE FRONT PILLAR GARNISHES
5. REMOVE SUN VISORS AND HOLDERS
6. REMOVE CENTER VISOR
7. REMOVE REAR SEAT
8. REMOVE QUARTER TRIM

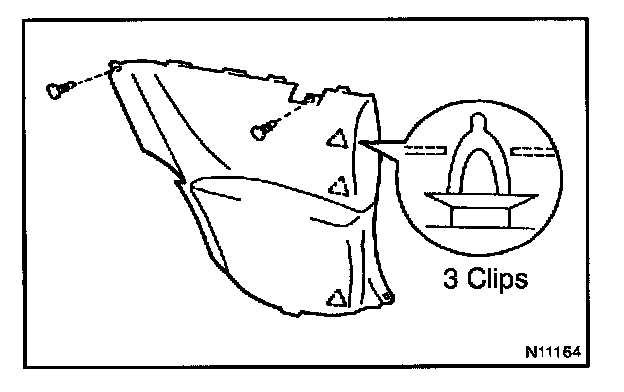

a. Remove the clip.
b. Using a screwdriver, remove the front seat outer belt guide.
HINT: Tape the screwdriver tip before use.
c. Using a clip remover, remove the 2 clips.
d. Pass a screwdriver between the body and quarter trim to pry it loose.
e. Remove the quarter trim.
f. Employ the same manner described above to the other side.
9. REMOVE REAR SEAT OUTER BELT GUIDE

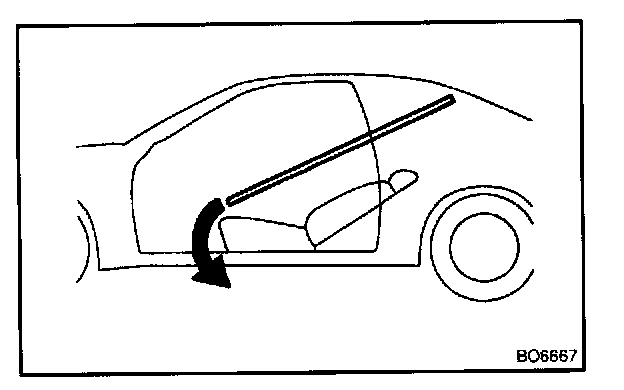

a. Remove the guide as shown in the illustration.
b. Employ the same manner described above to the other side.
10. REMOVE ROOF SIDE INNER GARNISH
a. Using a screwdriver, remove the 2 caps.
HINT: Tape the screwdriver tip before use.
b. Remove the 2 screws and assist grip.

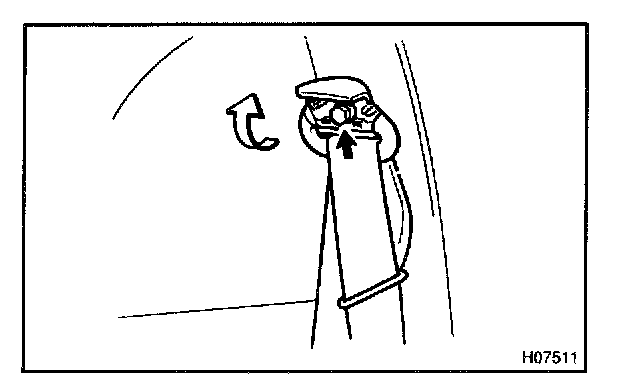

c. Using a screwdriver, open the seat belt shoulder anchor cover.
d. Remove the bolt and front seat outer belt shoulder anchor.
Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

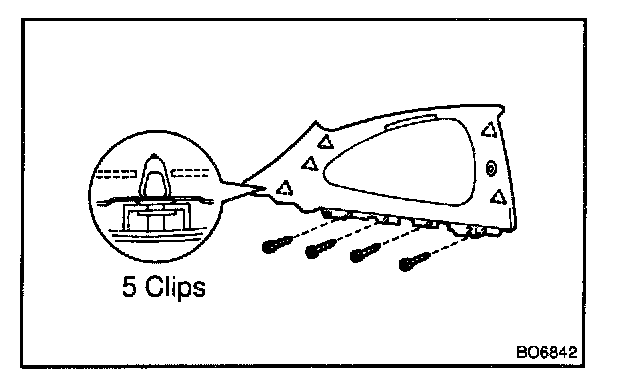

e. Remove the 4 screws.
f. Pass a screwdriver between the body and inner garnish to pry it loose.
g. Remove the inner garnish.
h. Employ the same manner described above to the other side.
11. REMOVE ROOF HEADLINING
a. Remove the interior light.
b. Disconnect the 4 clips from the roof panel rear end.
c. Using a clip remover, remove 6 clips.
d. Release the fastener tapes, then remove the headlining.
e. Fully recline the front seatback.

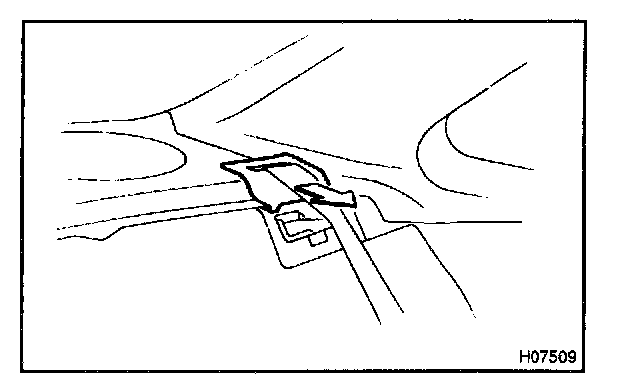

f. Bring out the headlining as shown.
NOTE: Do not fold down the headlining.
HINT: At the time of installation, please refer to the following item.
Install the roof headlining parts by following removal sequence in reverse.
INSTALLATION
Installation is in the reverse order of removal.
