Horn Relay Circuit

CIRCUIT DESCRIPTION
When the theft deterrent system is activated, it causes the Tr in the ECU to switch an off in approximately 0.4 sec. cycles. This switch the horn relay on and off, thus the horn (See the wiring diagram).

In this condition, if any of the following operations is done, the Tr in the ECU goes off and the horn relay switch off, thus stopping the horns:
1. Unlock the LH or RH door with key.
2. Turn the ignition switch to ACC or ON position.
3. Unlock the doors with the wireless door lock control system.
4. Wait for approximately 1 minute.

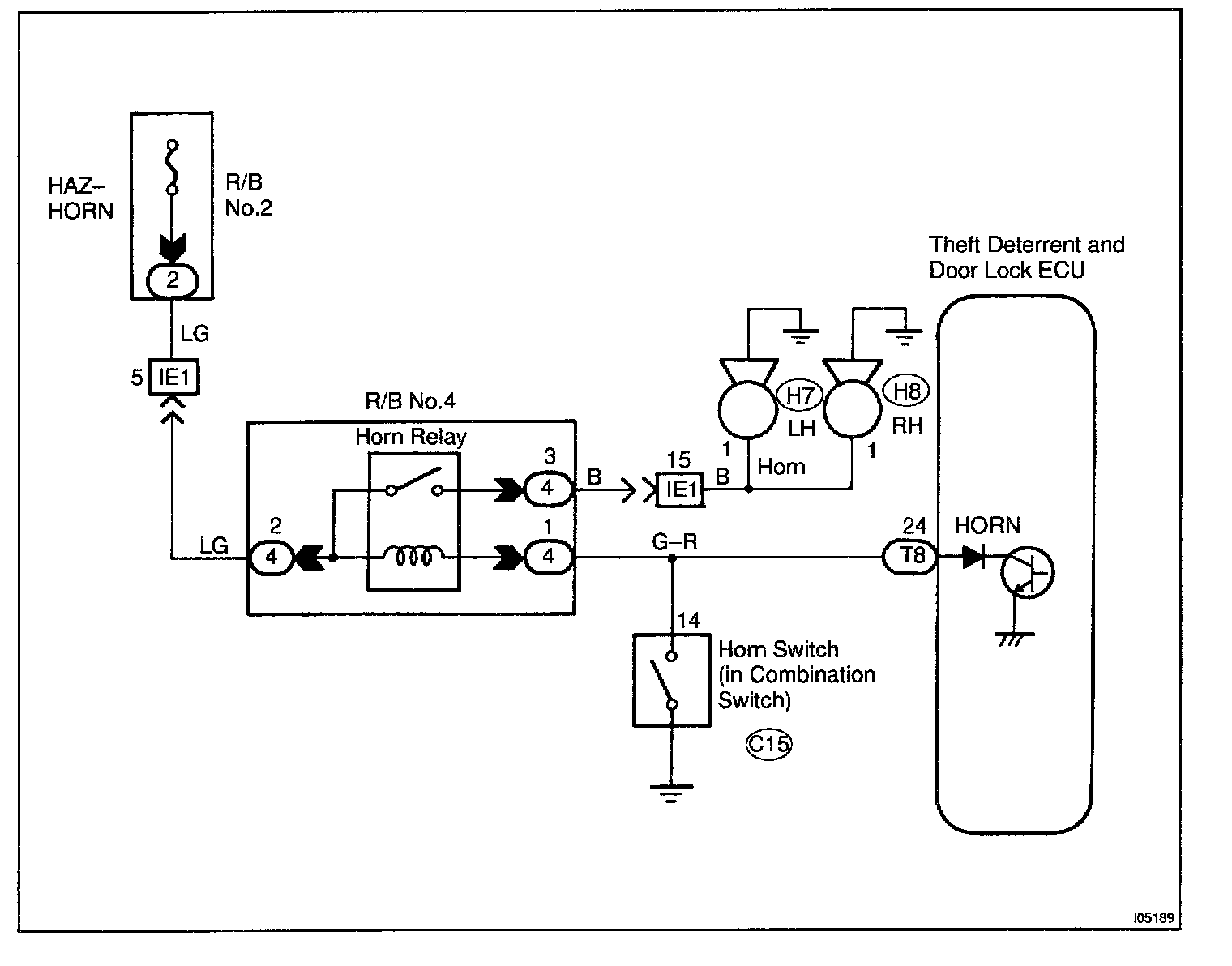

Wiring Diagram:

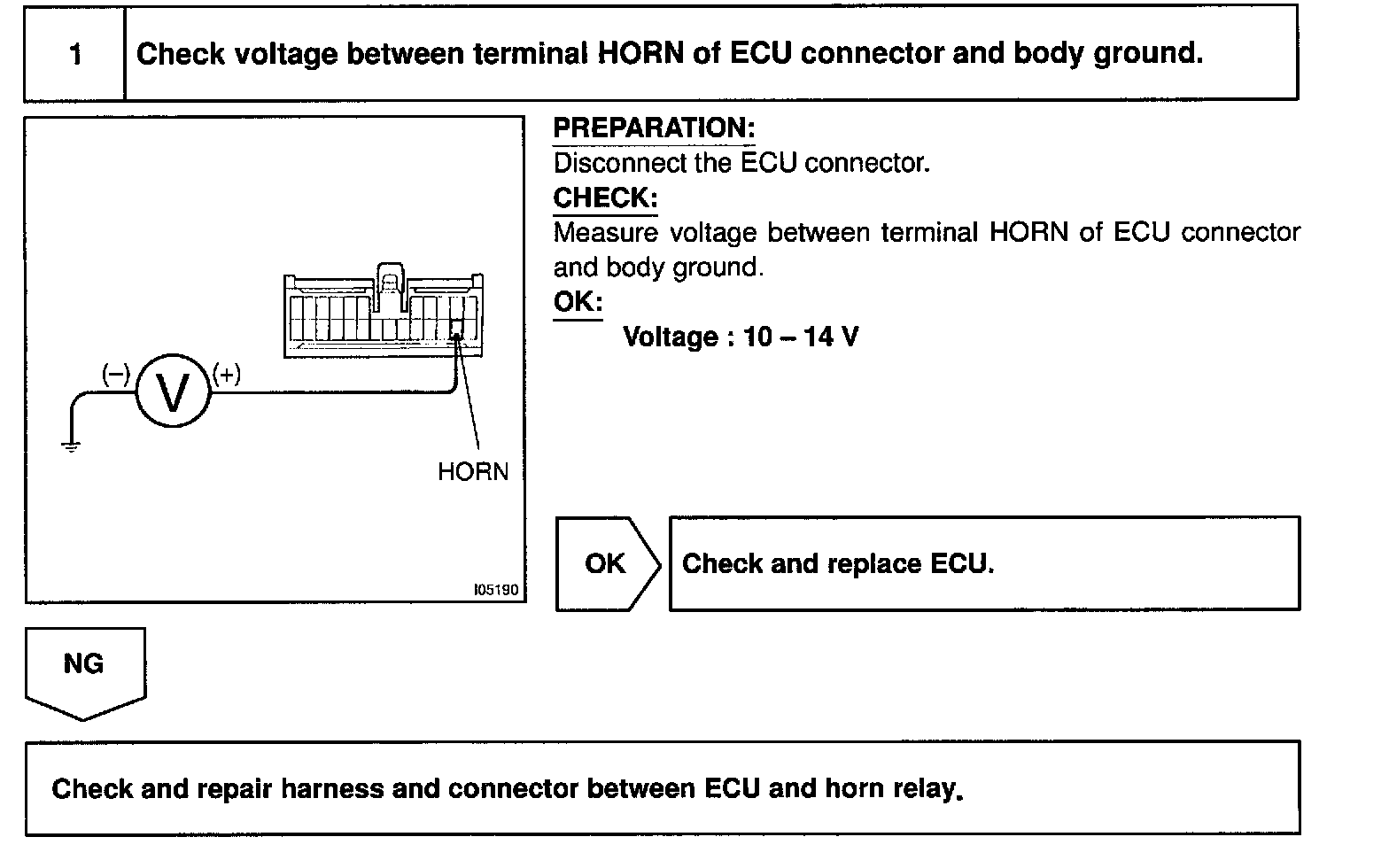

Step 1:

INSPECTION PROCEDURE

HINT: The flow chart is based on the premise that the horns blow normally whenever the horn switch is operated. If horn operation is not normal when the horn switch is operated, proceed to troubleshooting.
