Engine Hood Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The engine hood courtesy switch is built into the engine hood lock assembly and goes on when the engine hood is opened and goes off when the engine hood is closed.

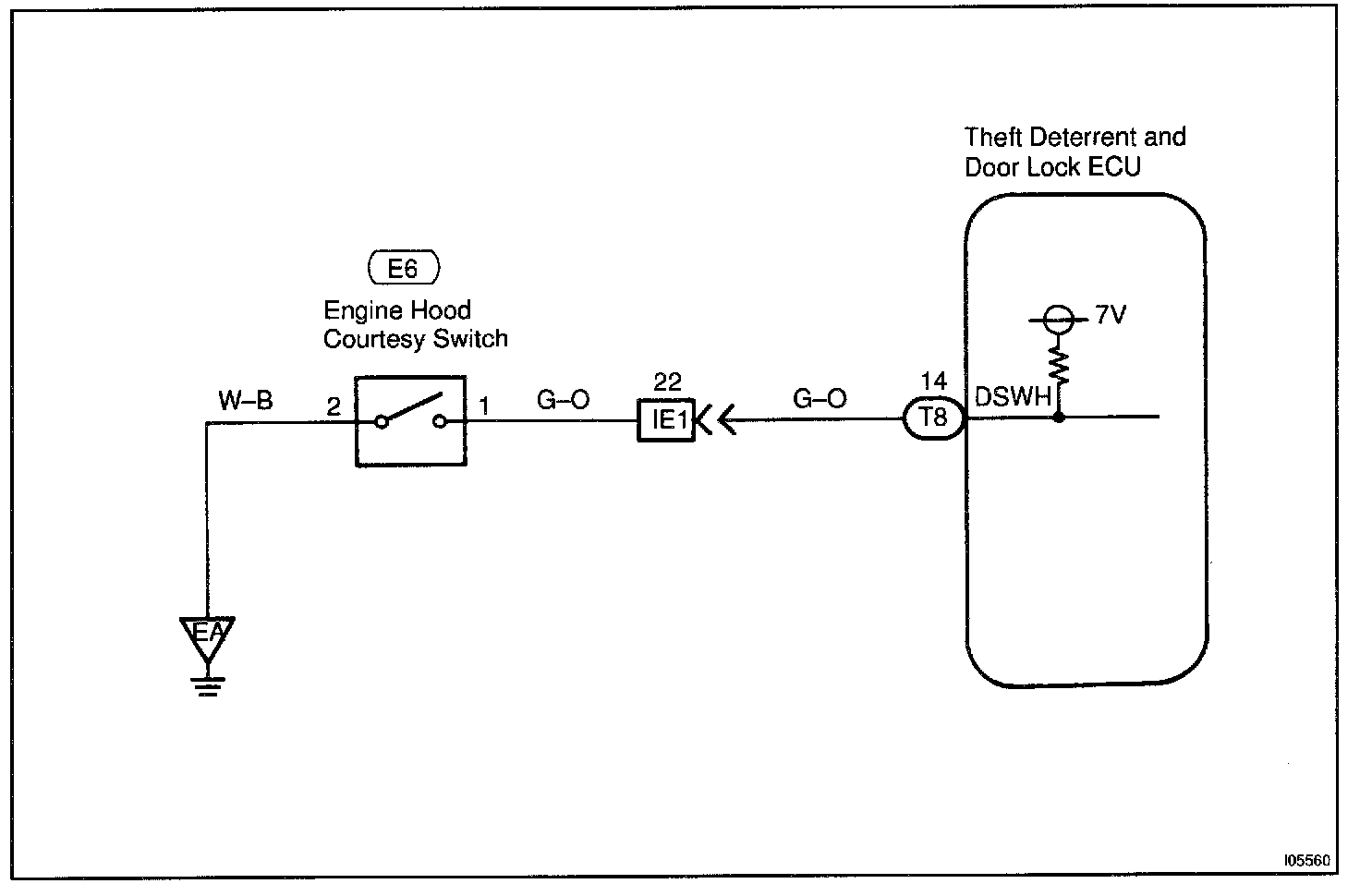

Wiring Diagram:

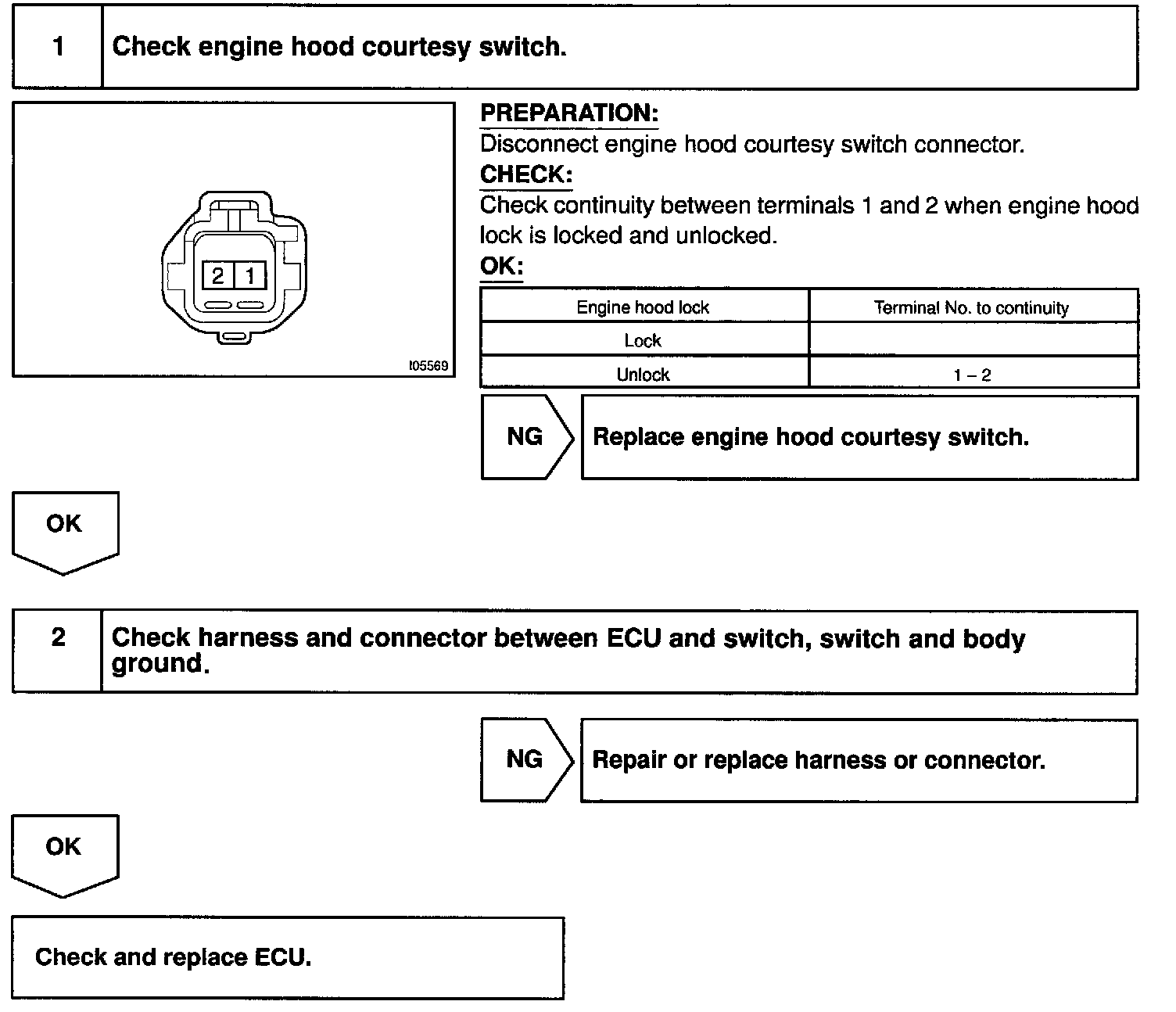

Step 1 - 2:

INSPECTION PROCEDURE
