Door Open Detection Switch Circuit
CIRCUIT DESCRIPTIONThe door open detection switch is built in the door lock assembly. It is on when the door is open and off when the door is closed.

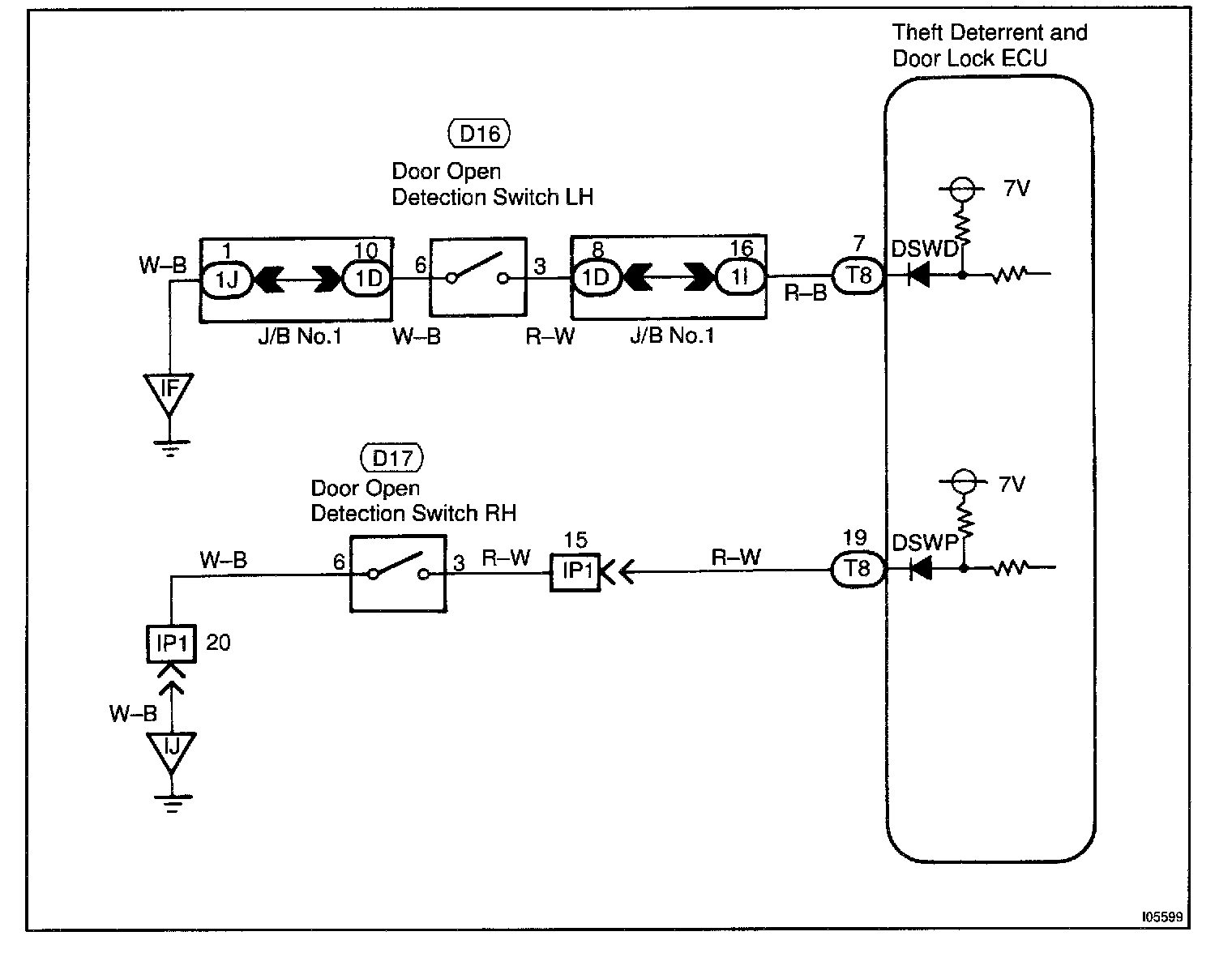

Wiring Diagram:

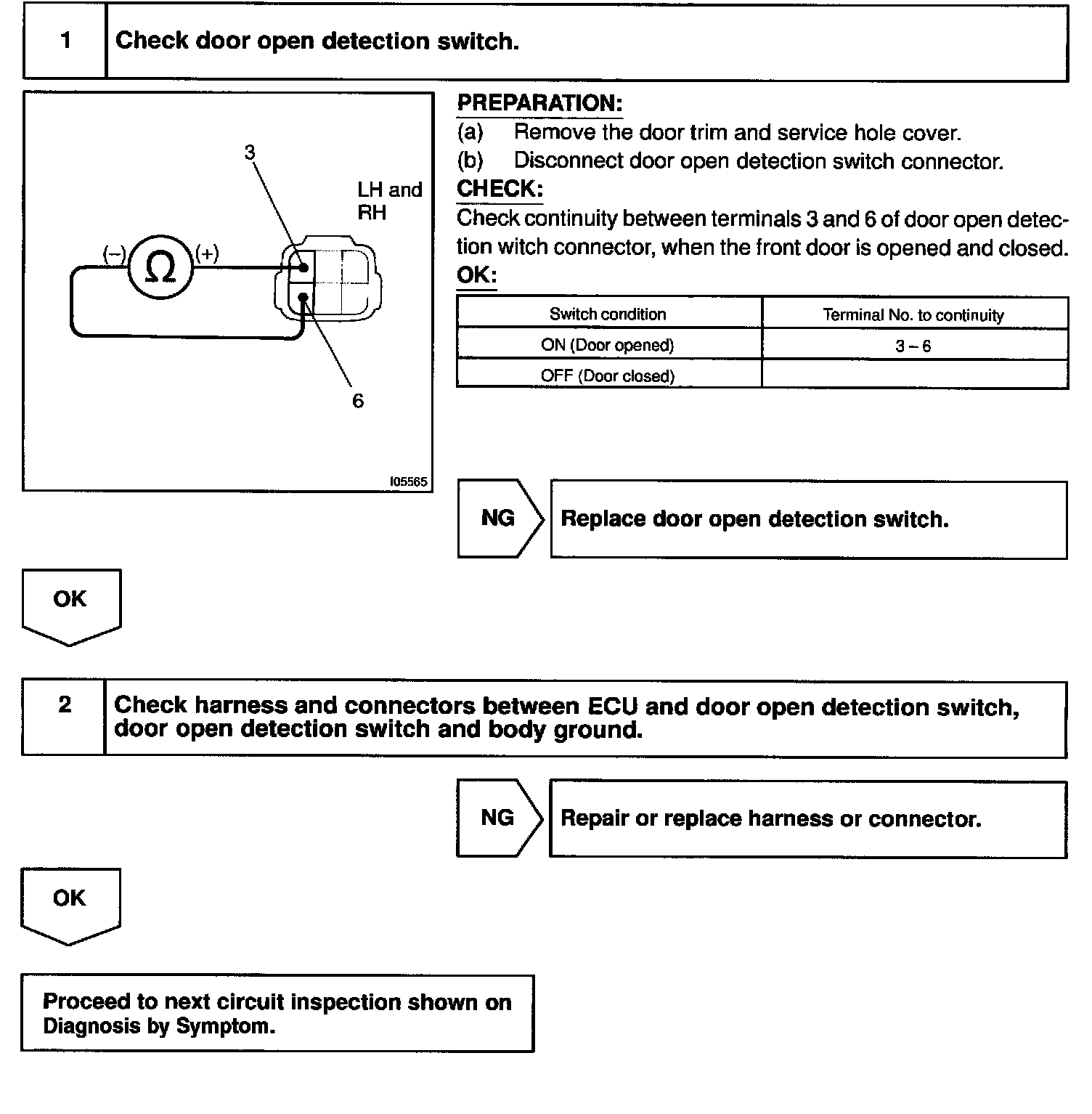

Step 1- 2:
INSPECTION PROCEDURE
The door open detection switch is built in the door lock assembly. It is on when the door is open and off when the door is closed.
INSPECTION PROCEDURE
