Home >> Lexus >> 2000 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Engine Immobilizer System

Engine Immobilizer System

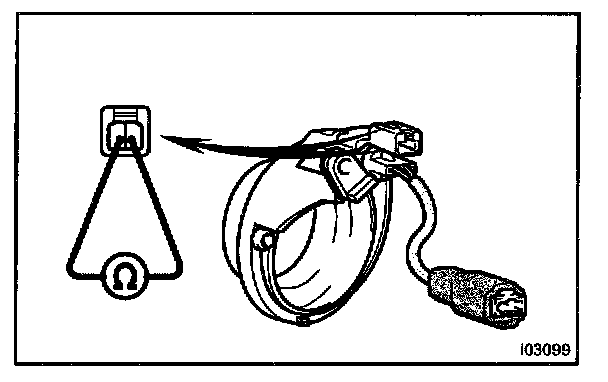

INSPECTION TRANSPONDER KEY COIL CONTINUITY
Check that there is continuity between terminal 1 and 2.
If continuity is not as specified, replace the coil.
