How to Proceed With Troubleshooting

Wireless Door Lock Control System:

HINT: Troubleshooting of the wireless door lock control system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the wireless door lock control system, first make certain that the door lock control system is operating normally.

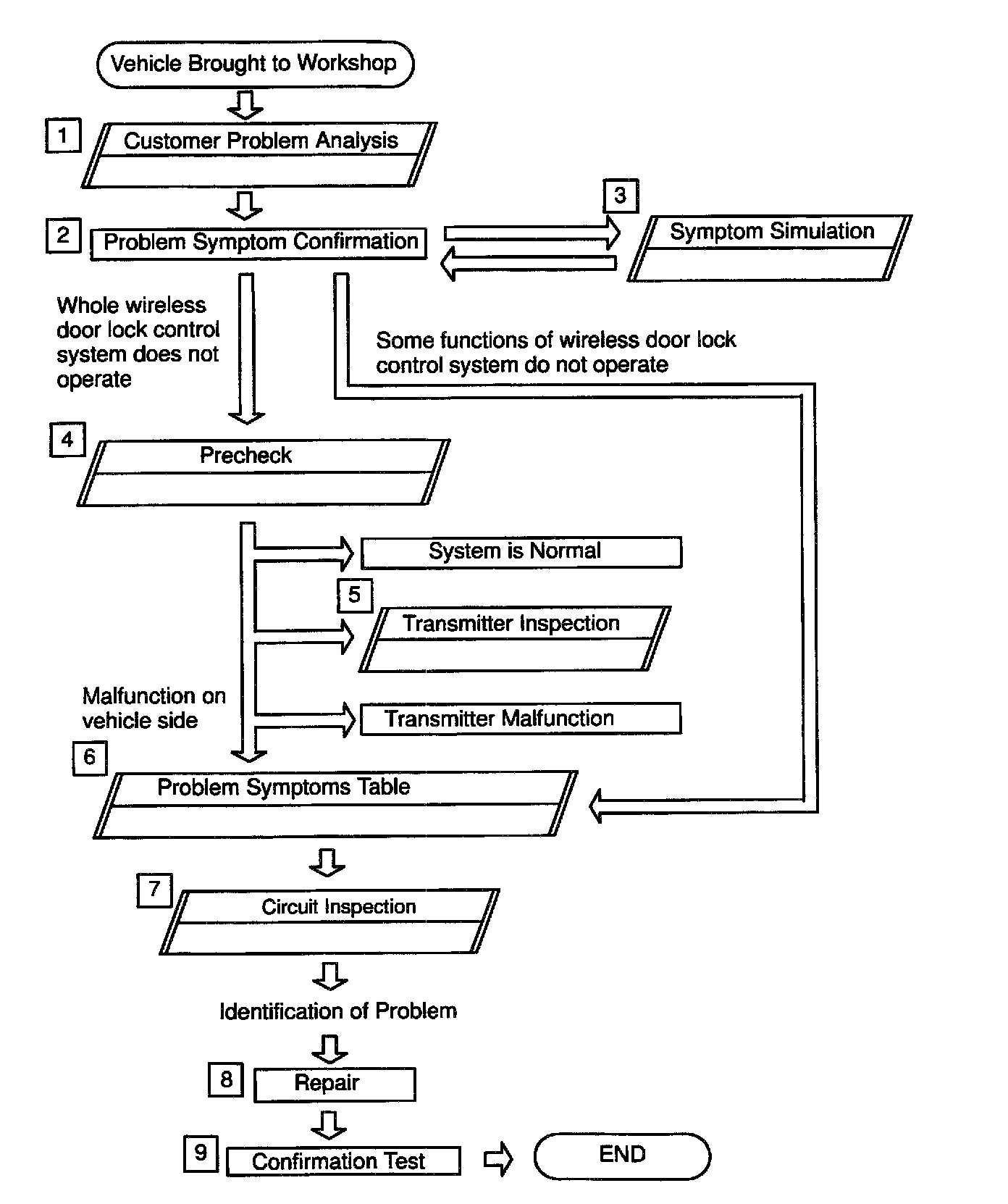

Perform troubleshooting in accordance with procedure.

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
