Wireless Door Lock Buzzer Circuit

CIRCUIT DESCRIPTION
The volume of the buzzer can be controlled or turned OFF by the volume switch.

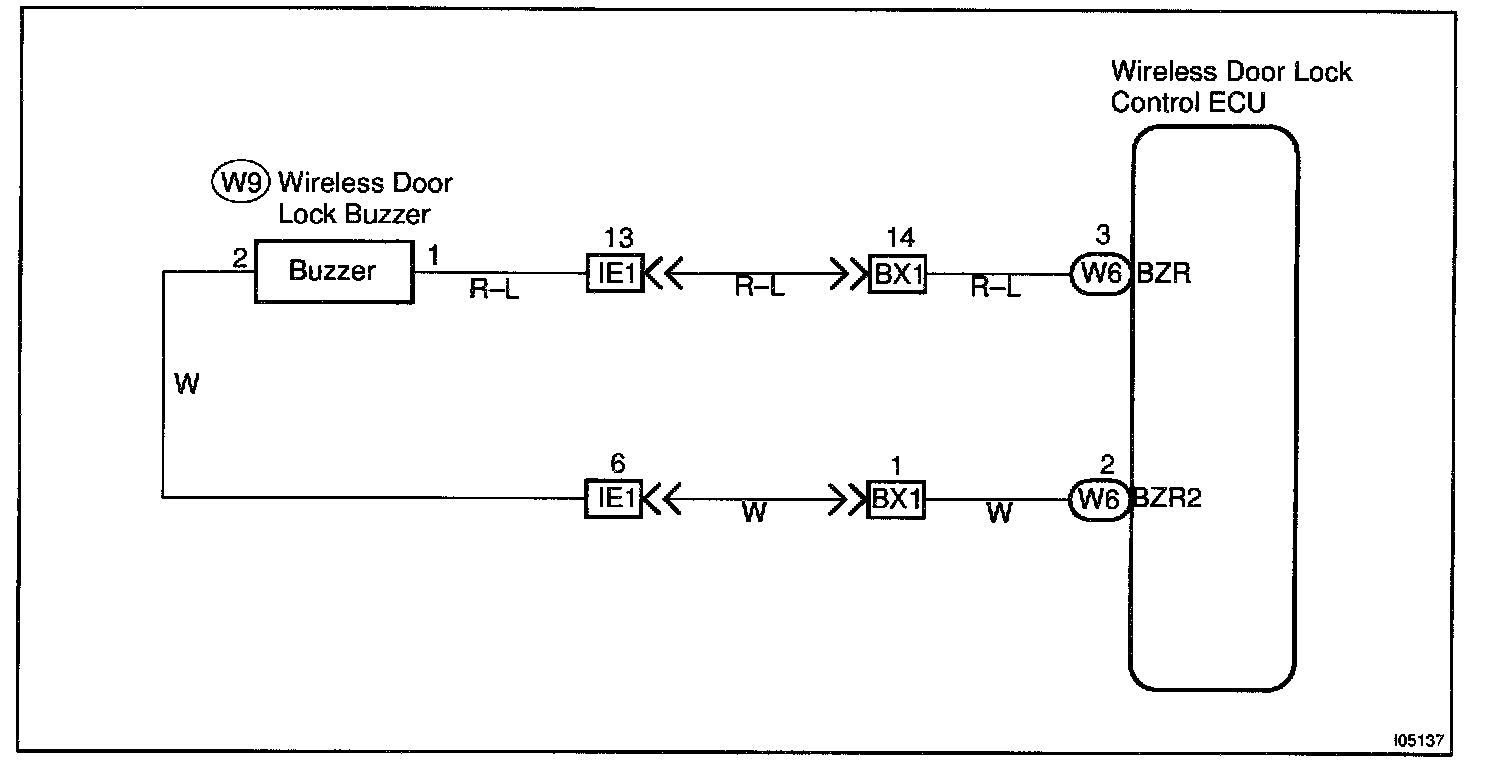

Wiring Diagram:






Step 1:




Step 2:




Step 3:

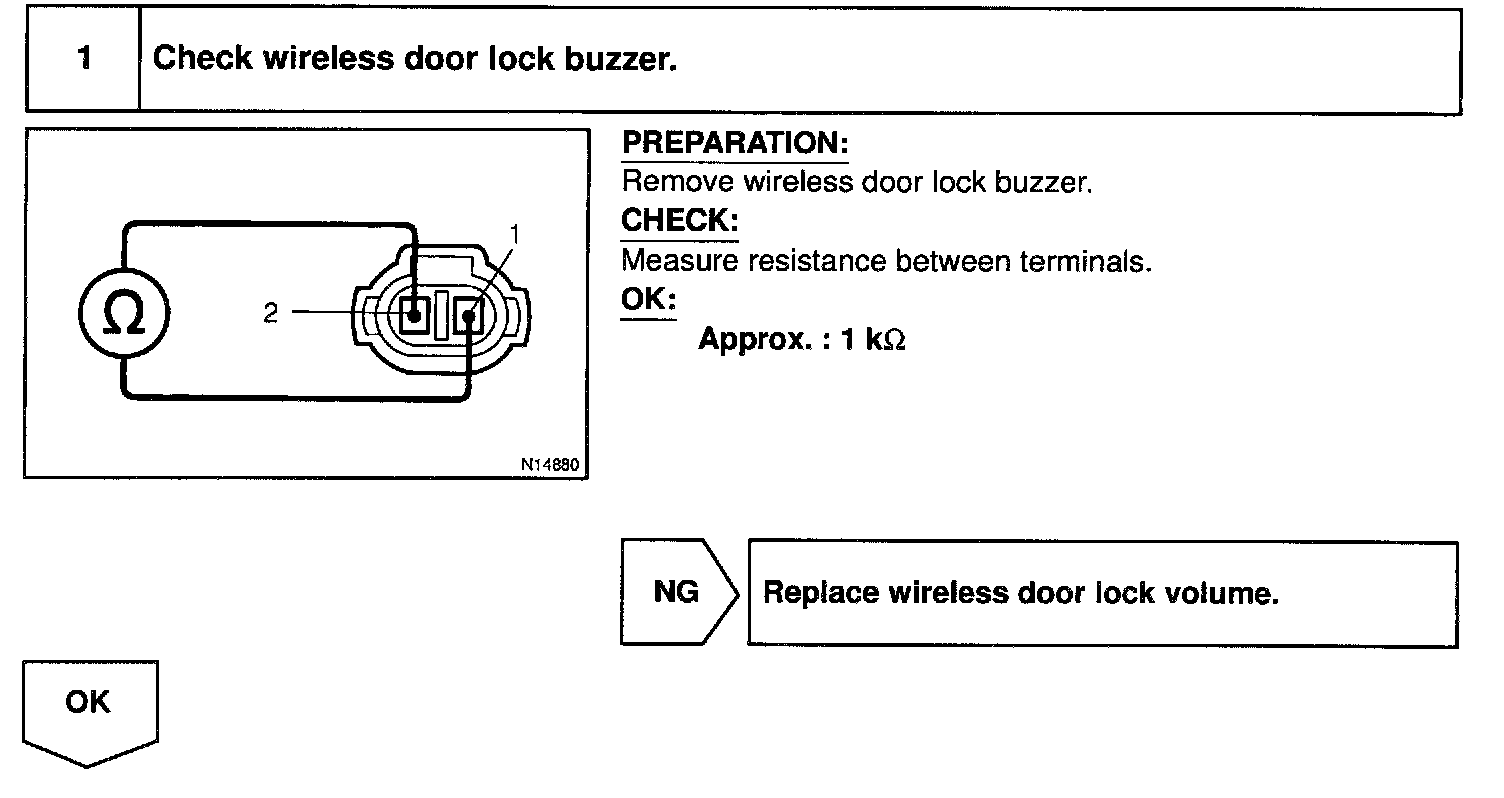

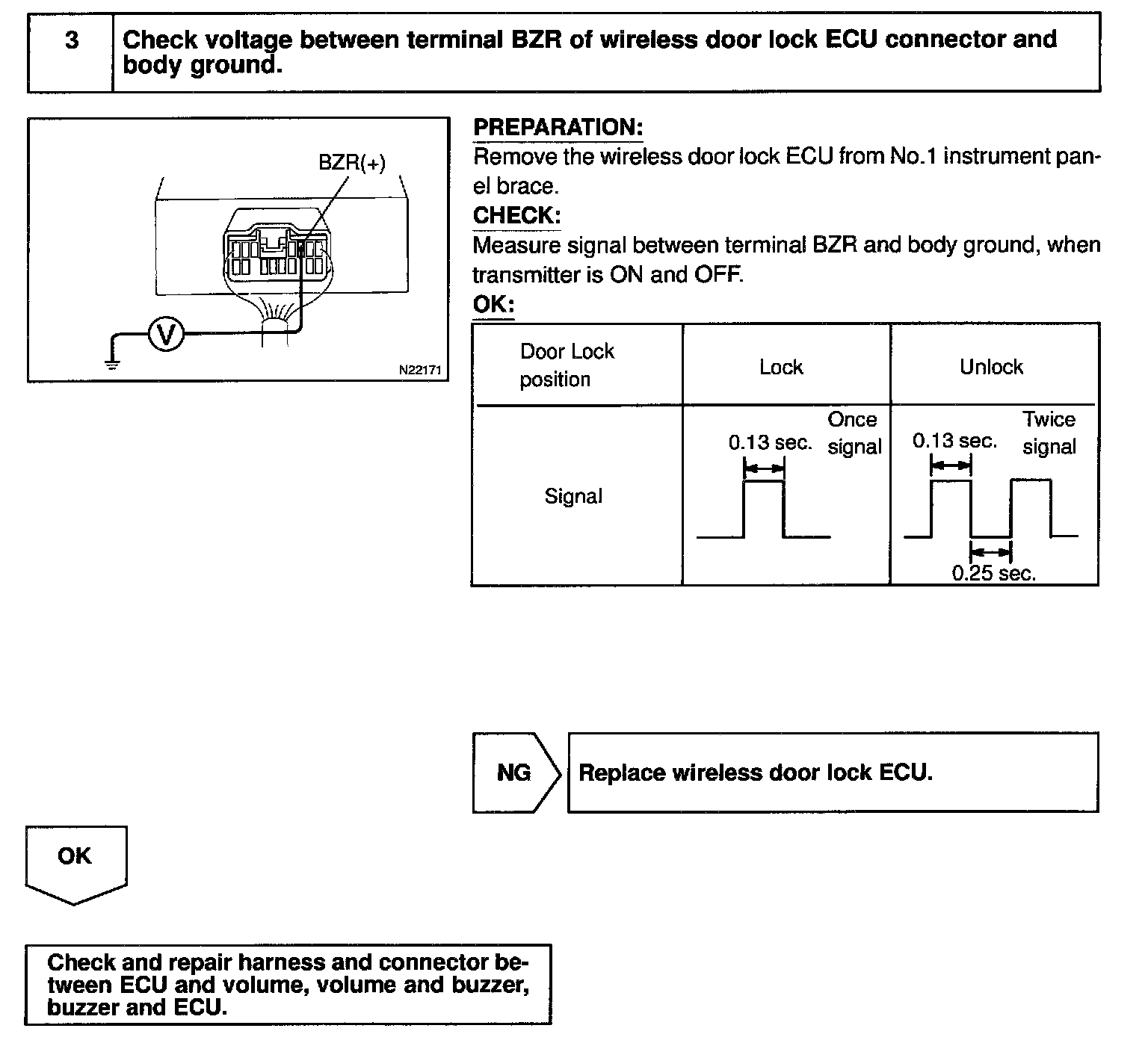

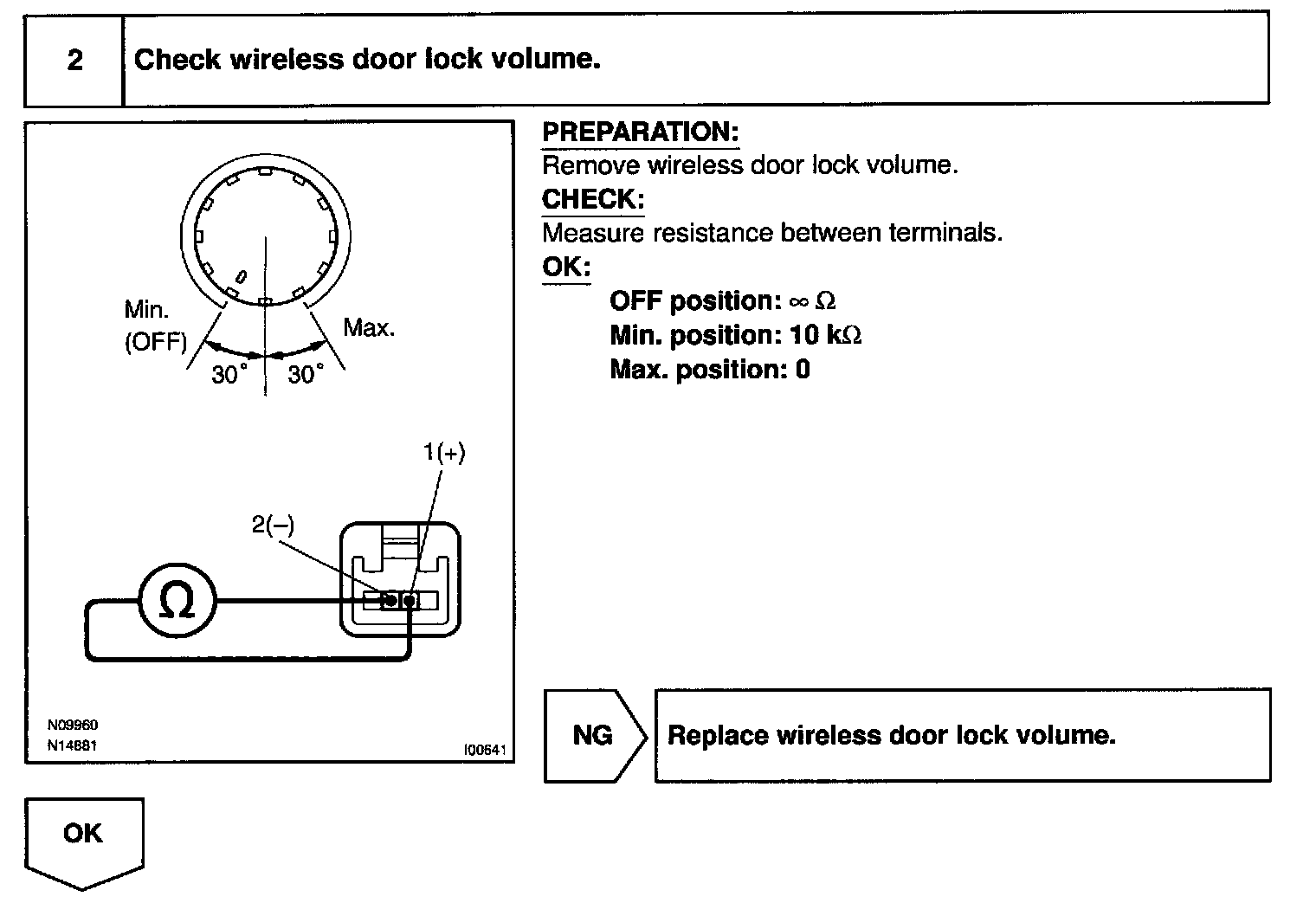

INSPECTION PROCEDURE
