DTC 33

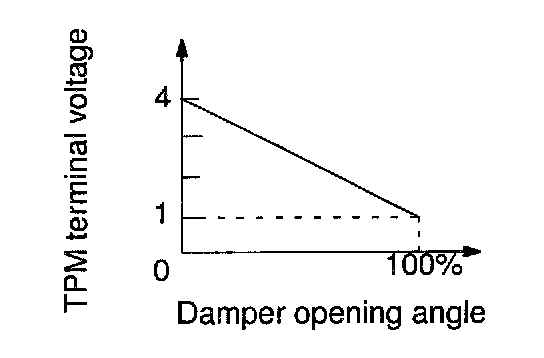

CIRCUIT DESCRIPTION
This sensor detects the position of the air outlet damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air outlet control servomotor assembly.

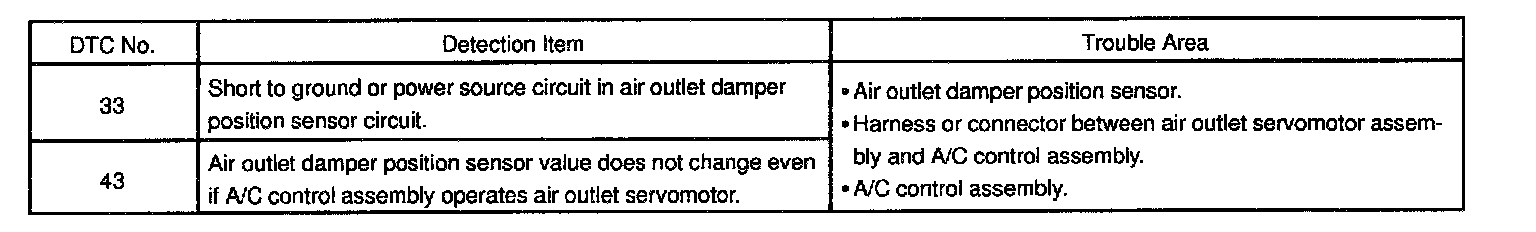

Detection Item:

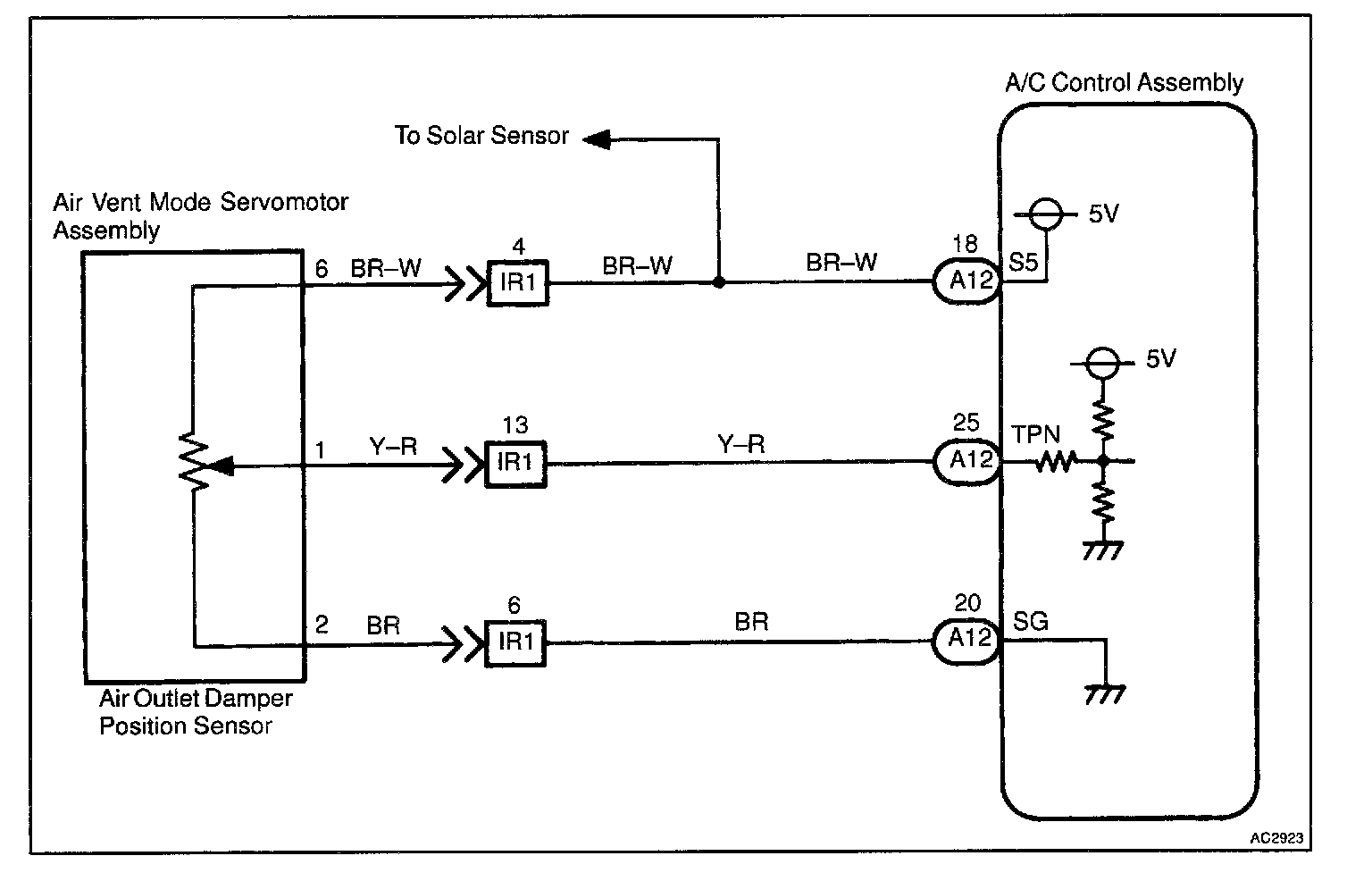

Wiring Diagram:

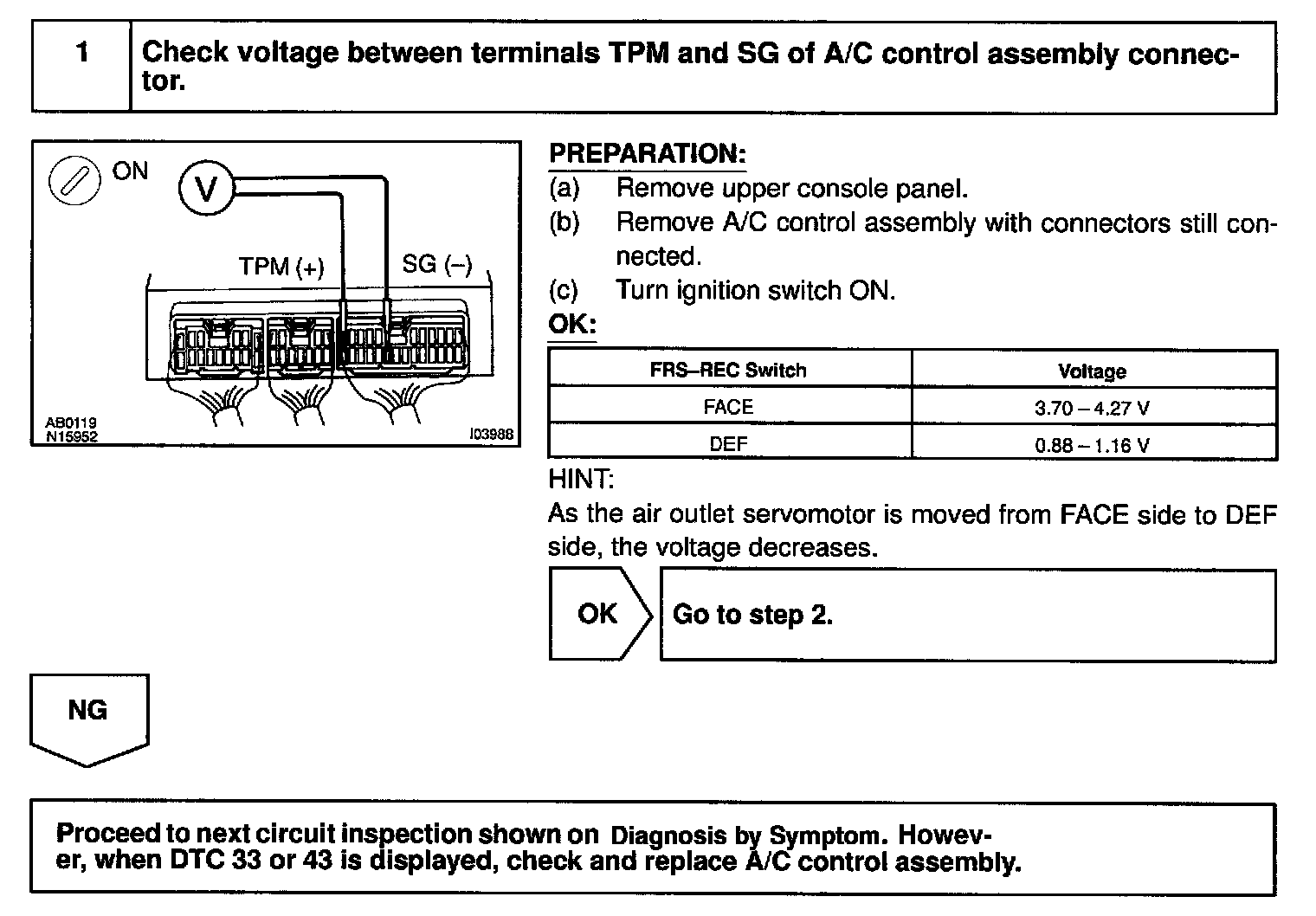

Step 1:

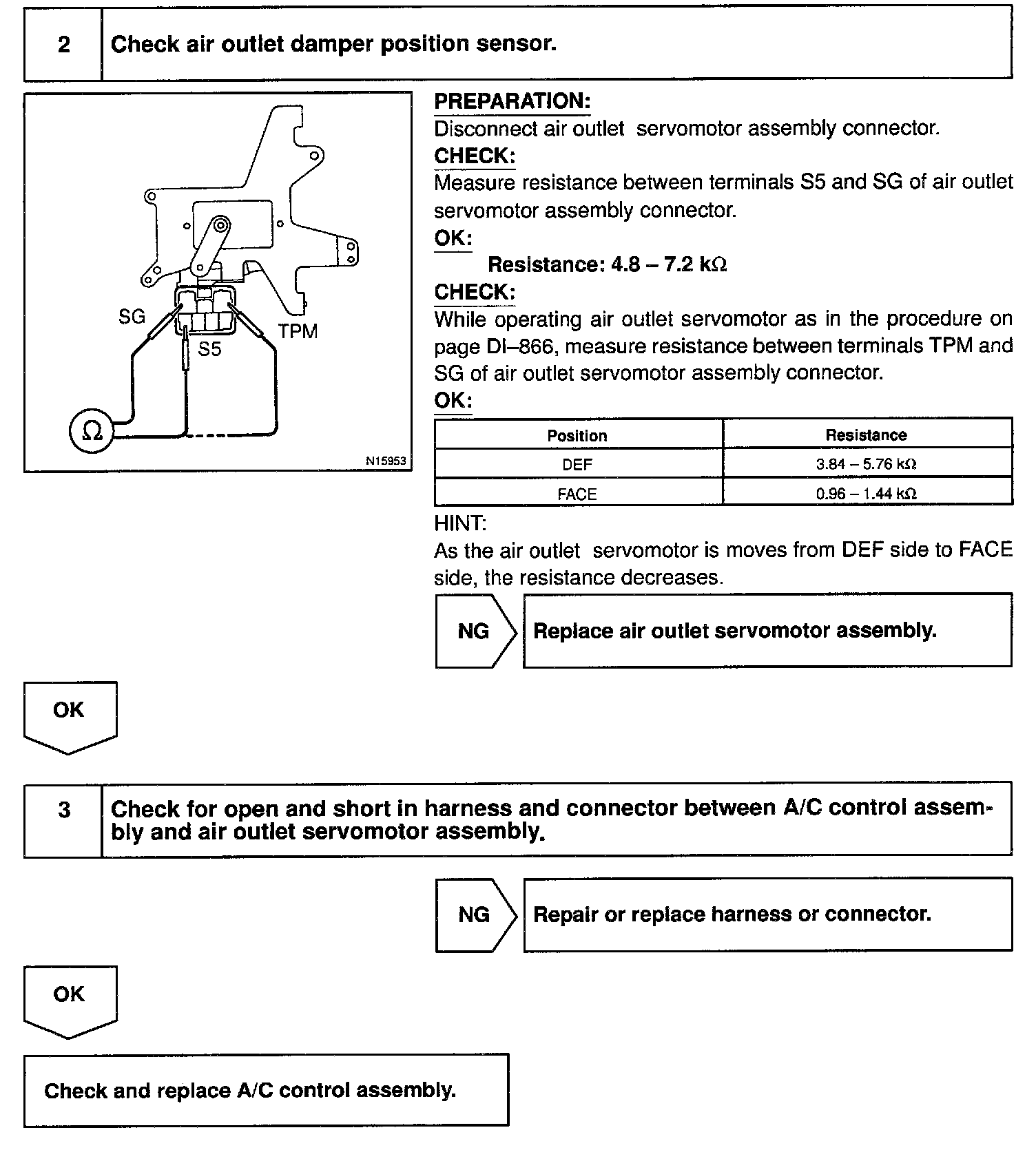

Step 2 - 3:

INSPECTION PROCEDURE
