DTC 23

CIRCUIT DESCRIPTION
The pressure switch sends the appropriate signals to the A/C control assembly when the A/C refrigerant pressure drops too low or rises to high. When the A/C control assembly receives these signals, it outputs signals via the ECM to switch off the compressor relay and turns the magnetic clutch off.

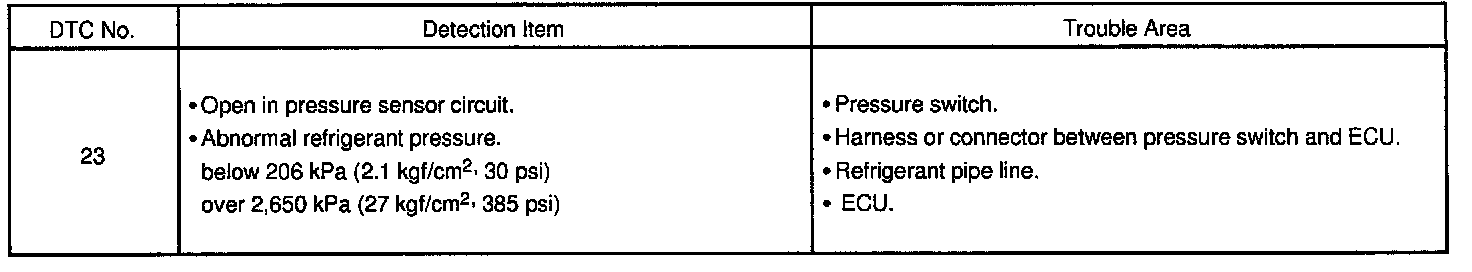

Detection Item:

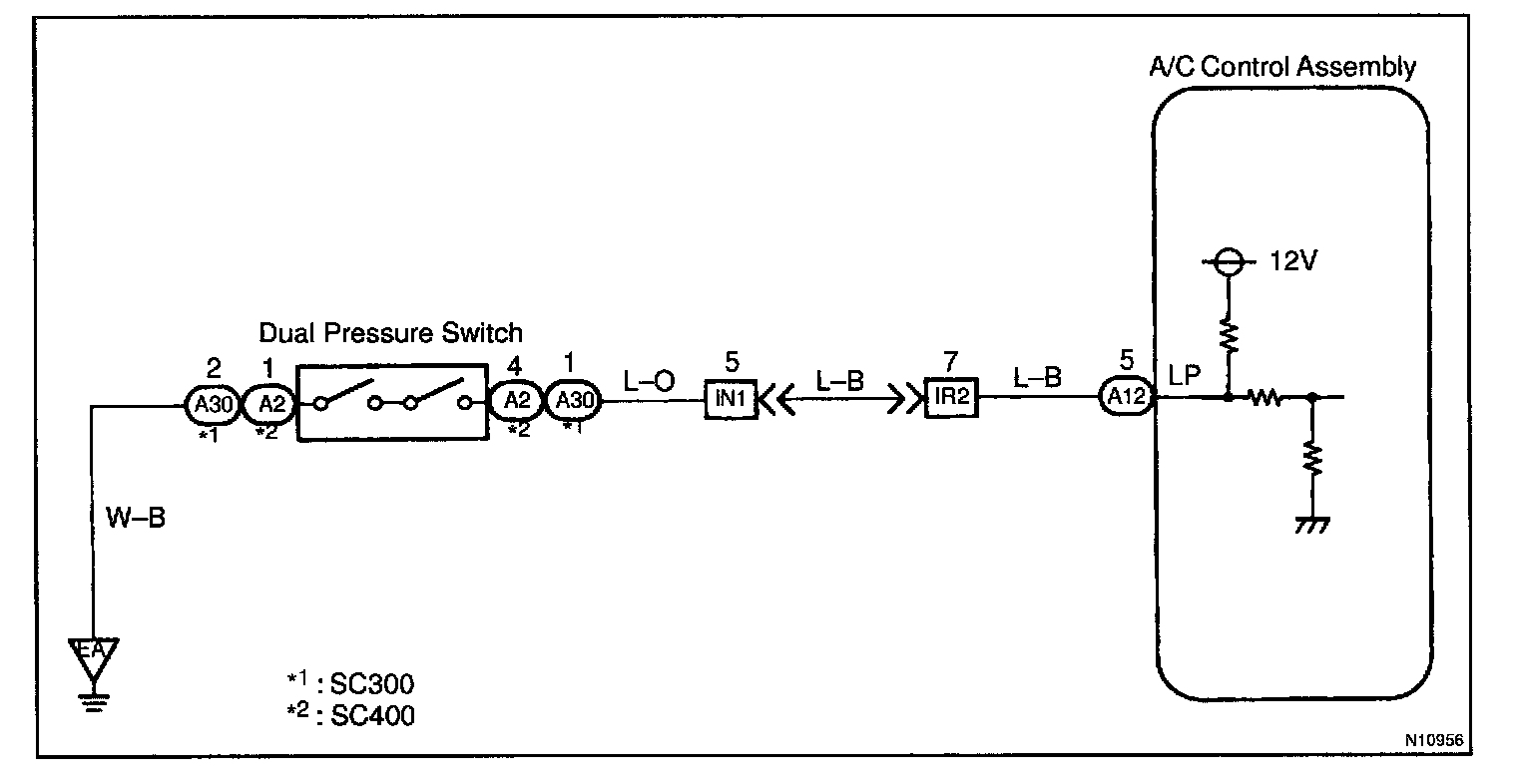

Wiring Diagram:

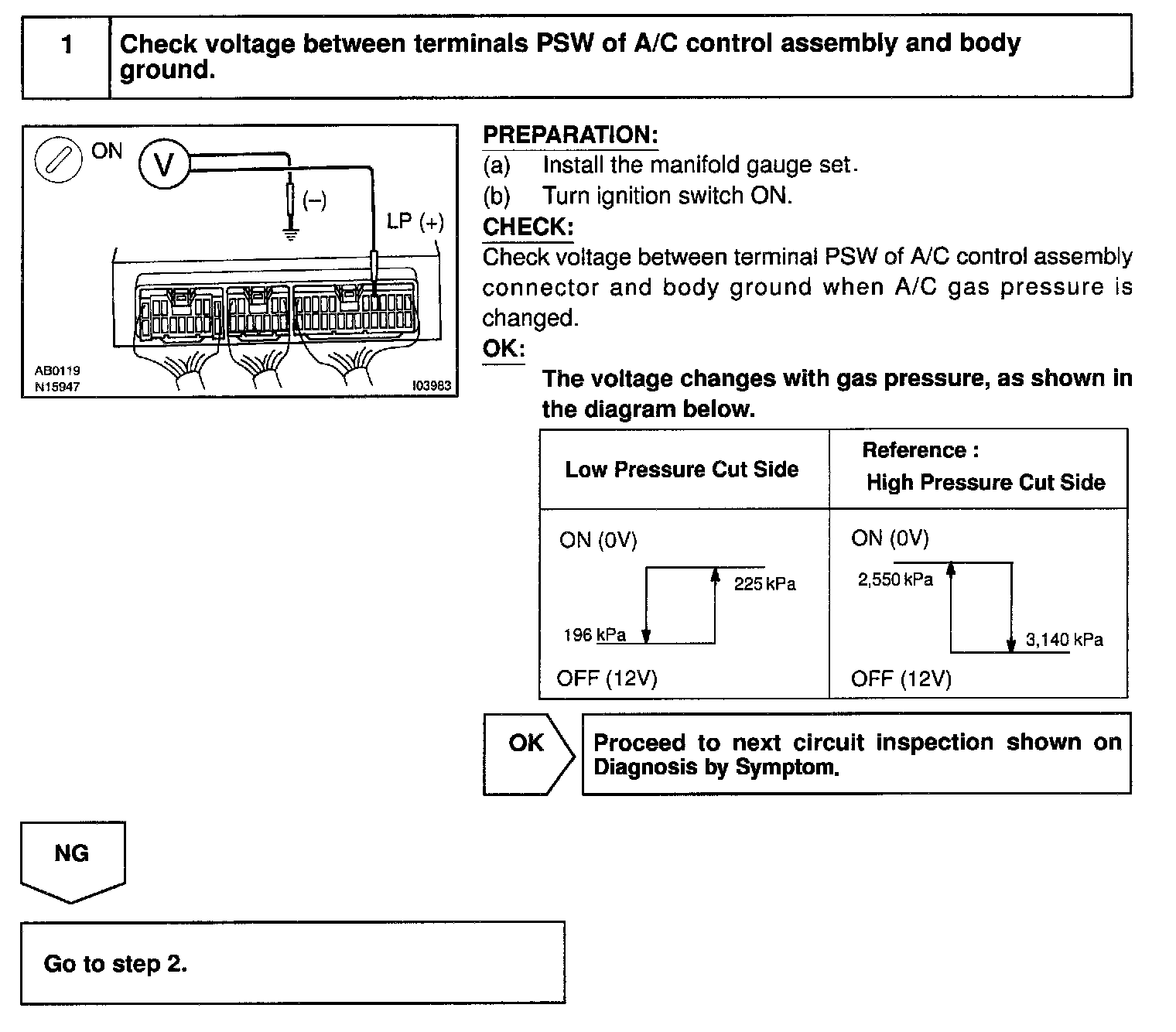

Step 1:

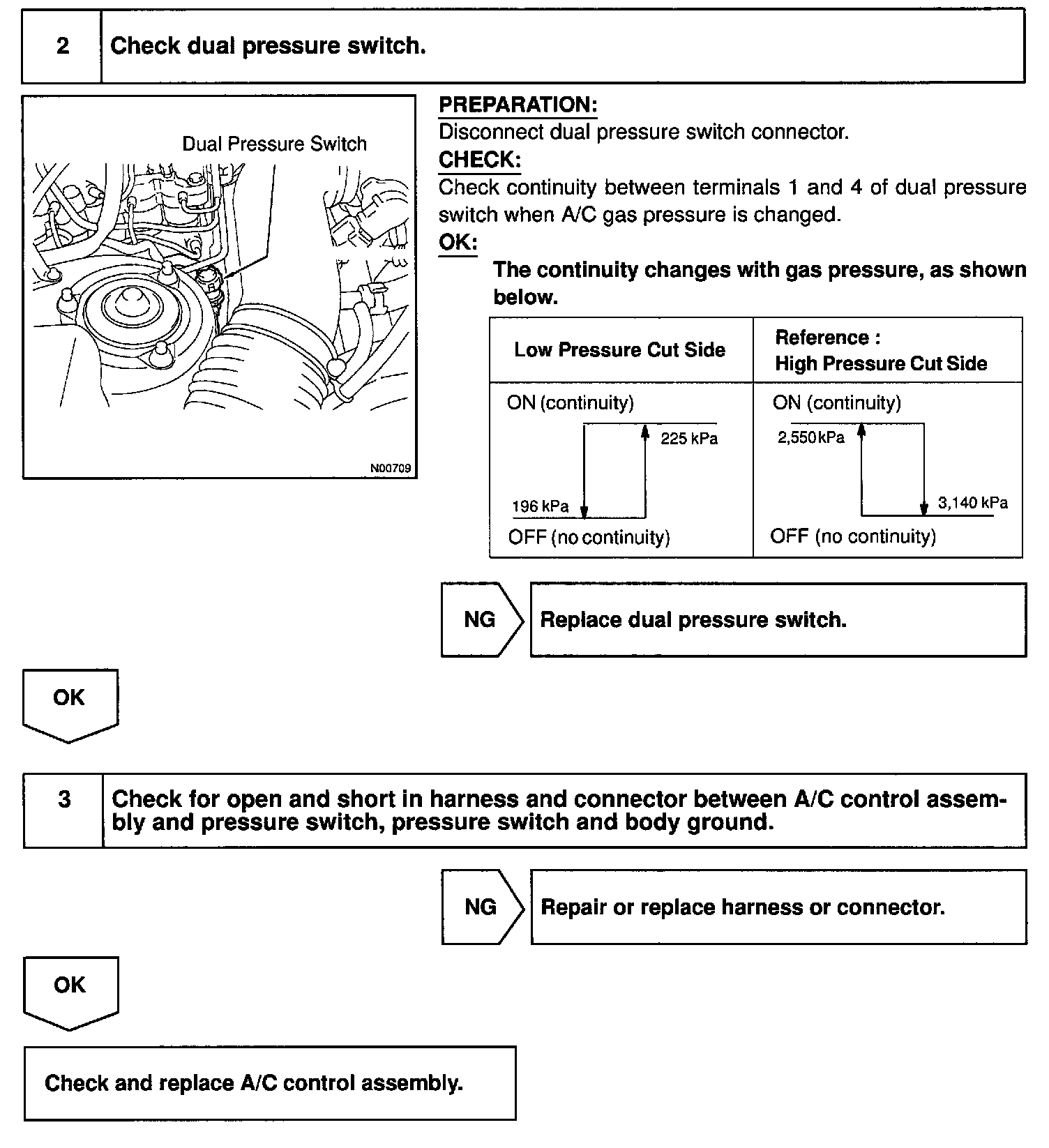

Step 2 - 3:

INSPECTION PROCEDURE
