DTC 21

CIRCUIT DESCRIPTION

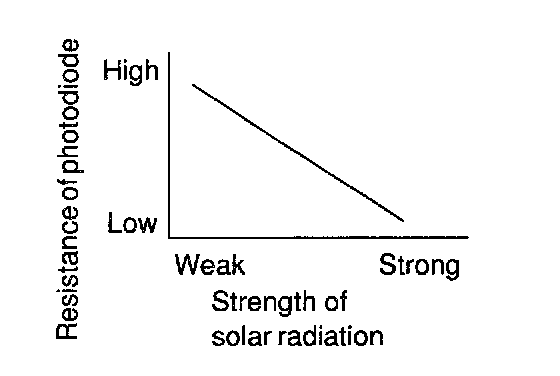

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

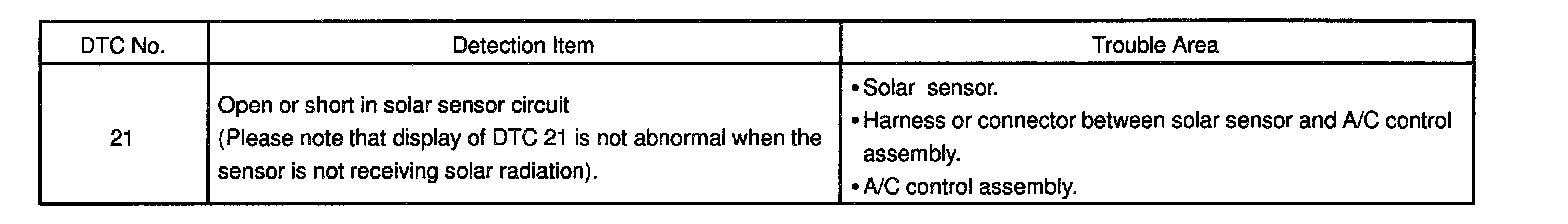

Detection Item:

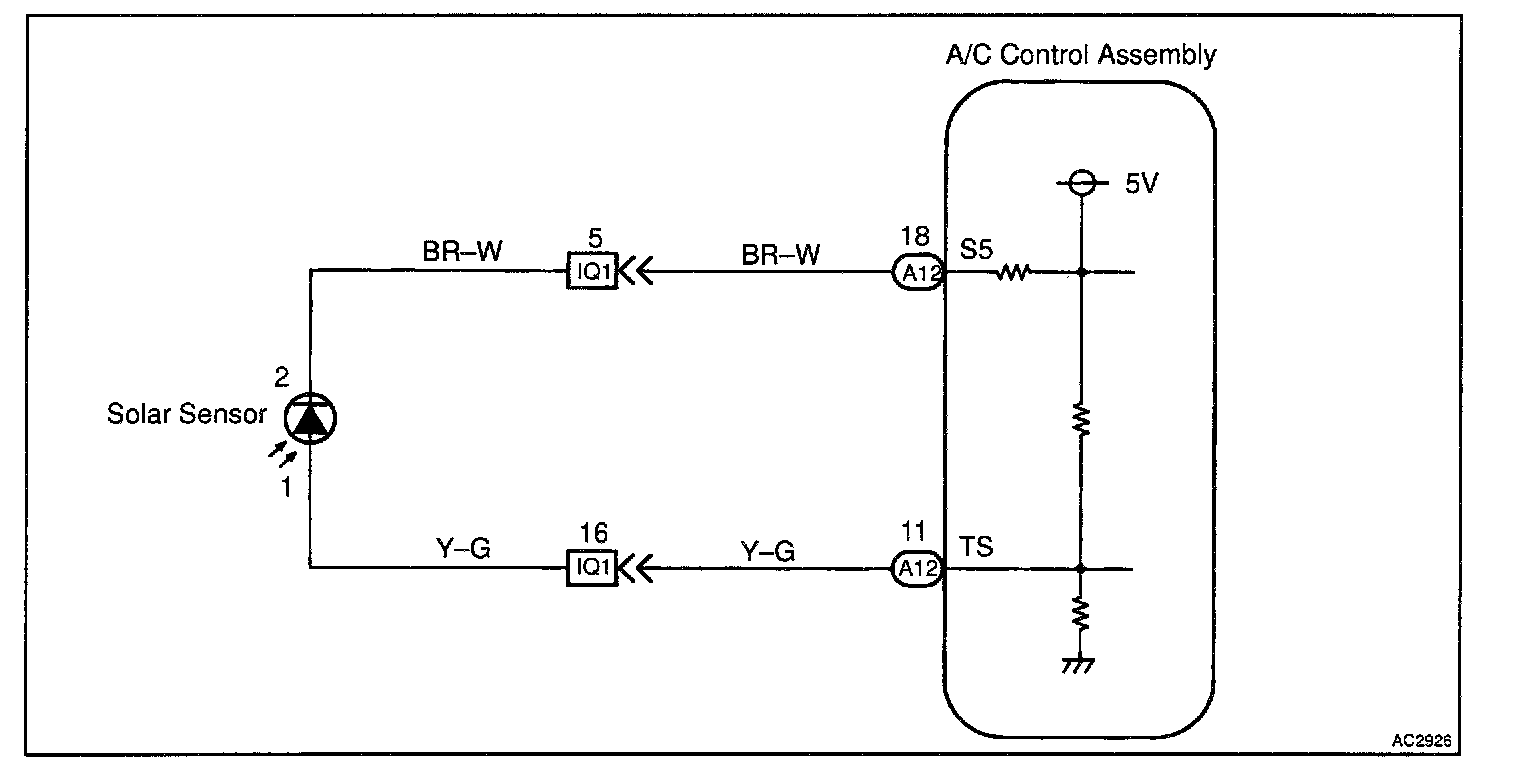

Wiring Diagram:

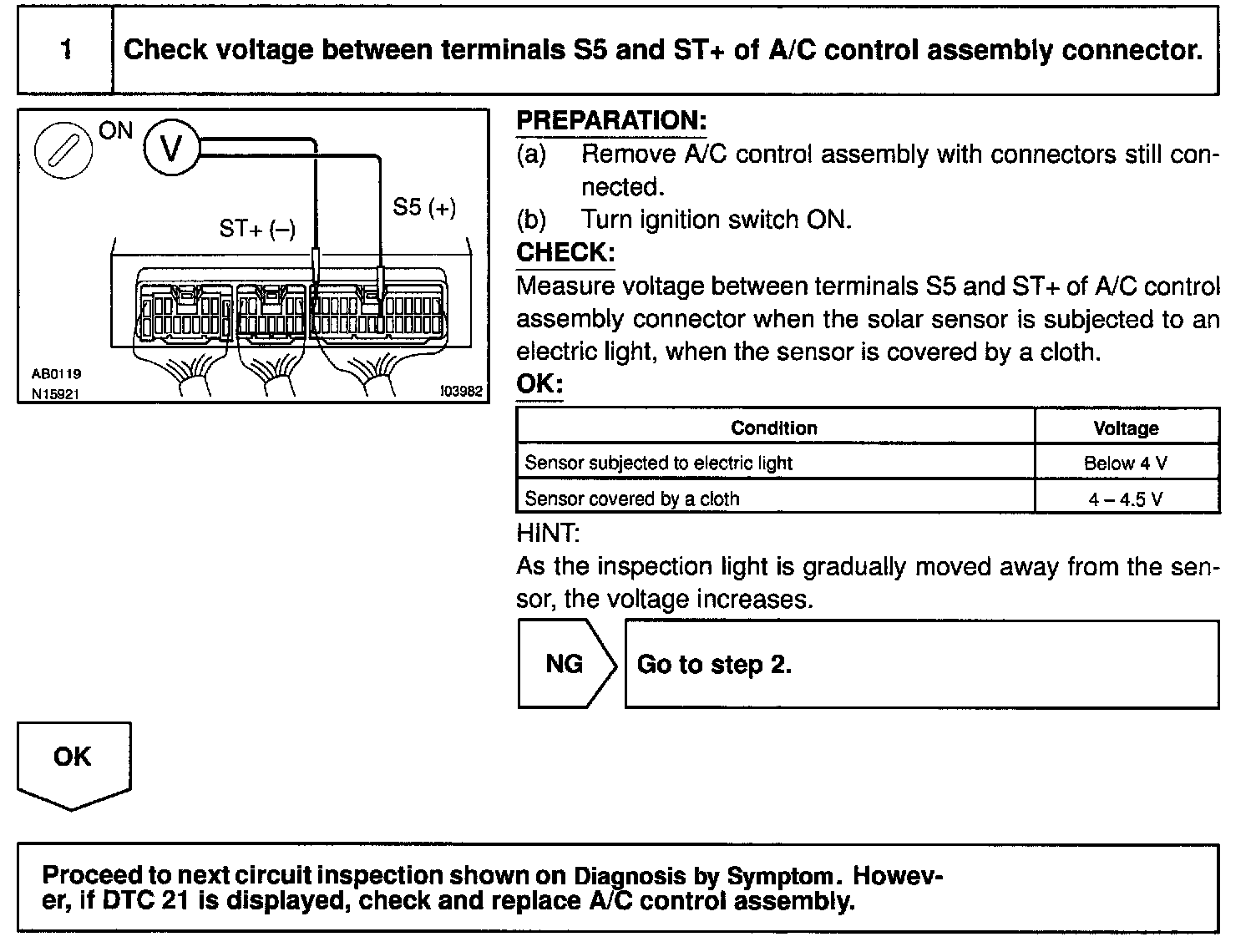

Step 1:

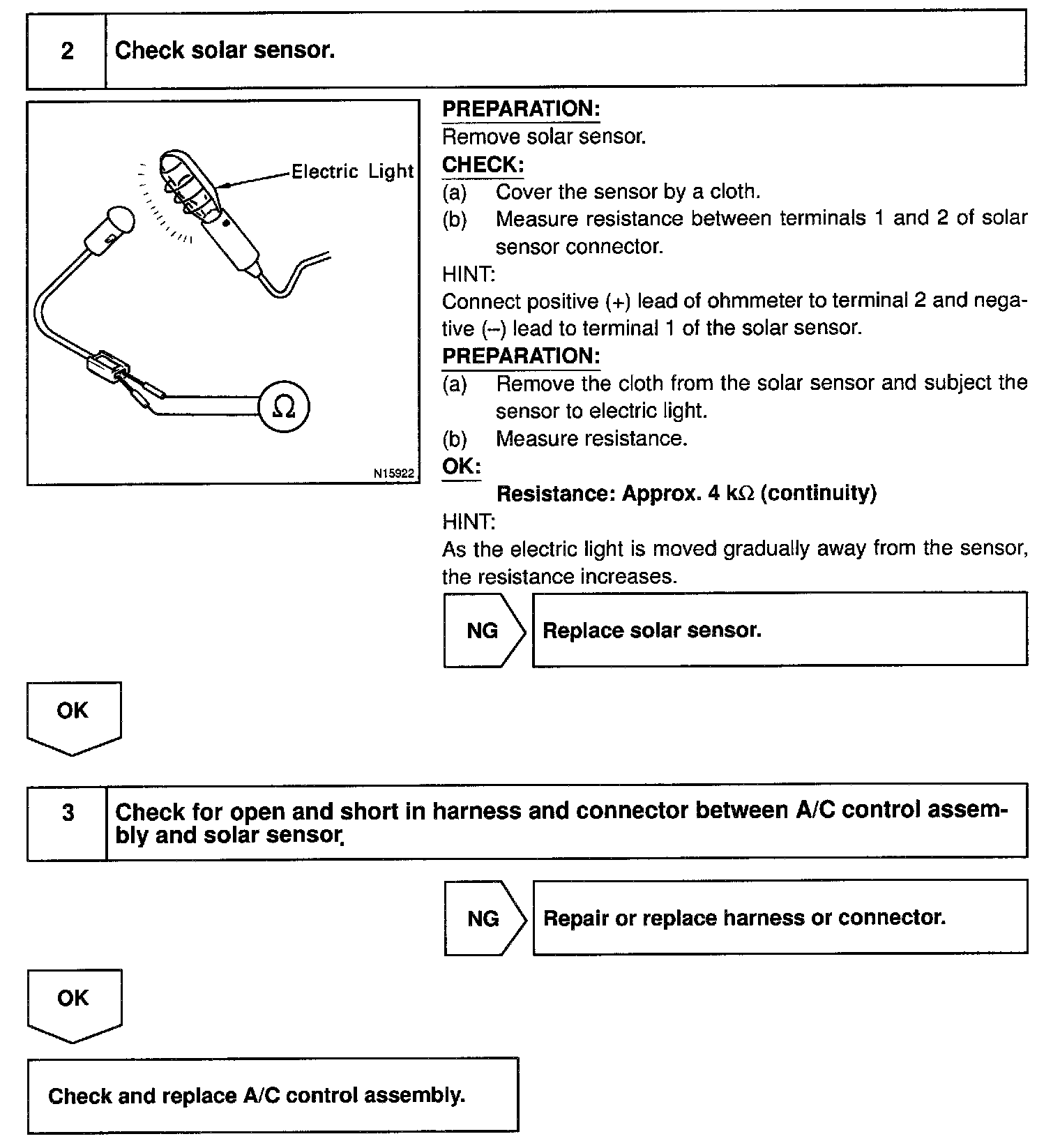

Step 2 - 3:

INSPECTION PROCEDURE
