DTC 14

DTC 14 Open in D Squib Circuit




CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad. It causes the airbag to deploy when the airbag deployment conditions are satisfied.
For details of the function of each components, Description and Operation

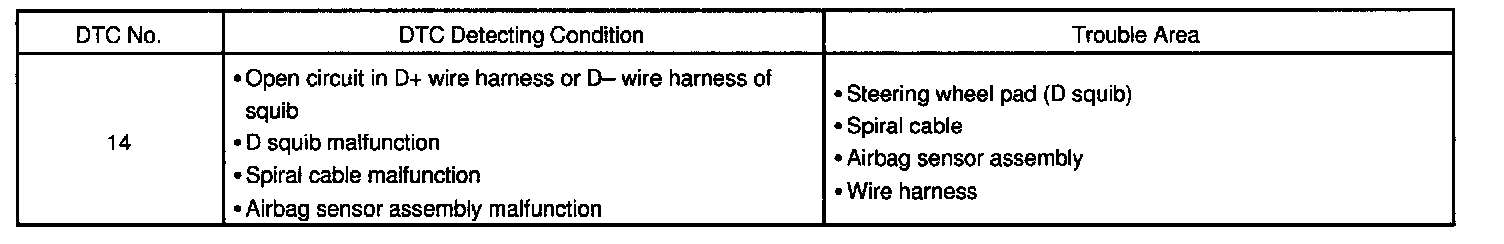

DTC 14 is recorded when an open is detected in the D squib circuit.

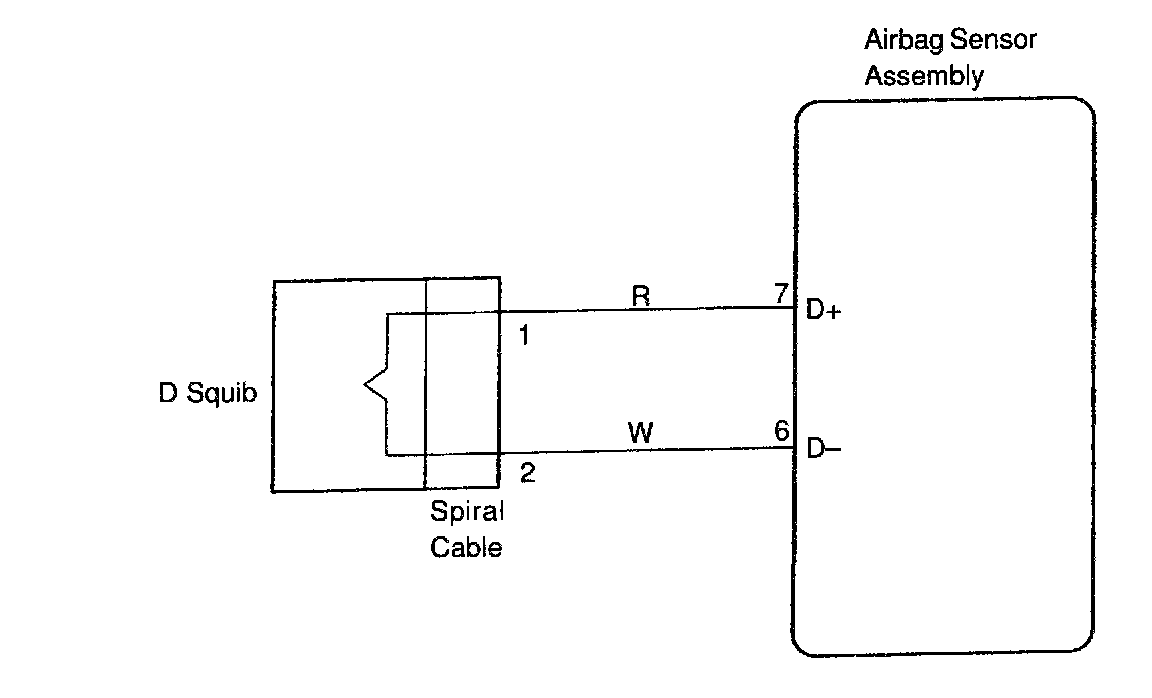

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

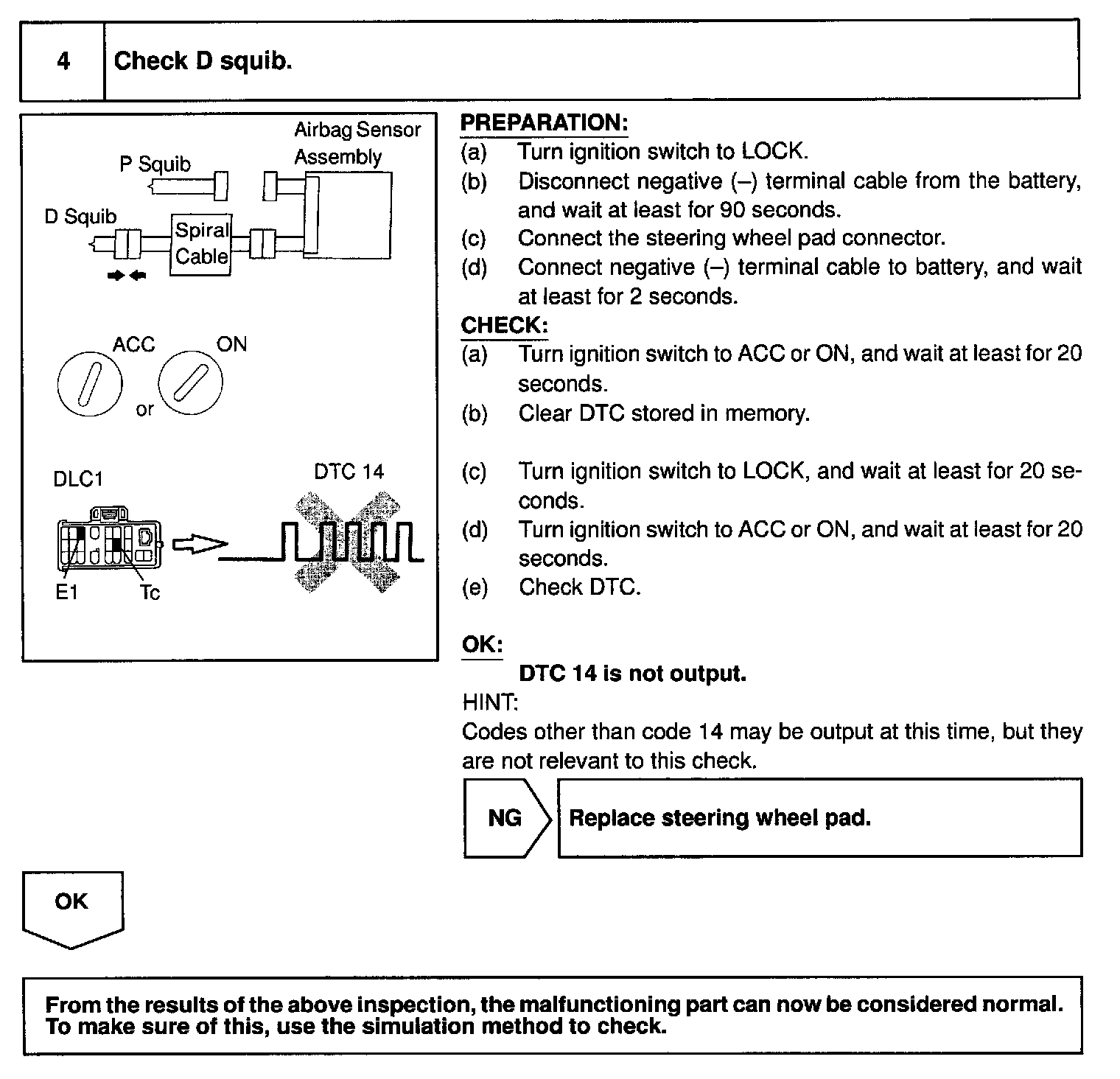

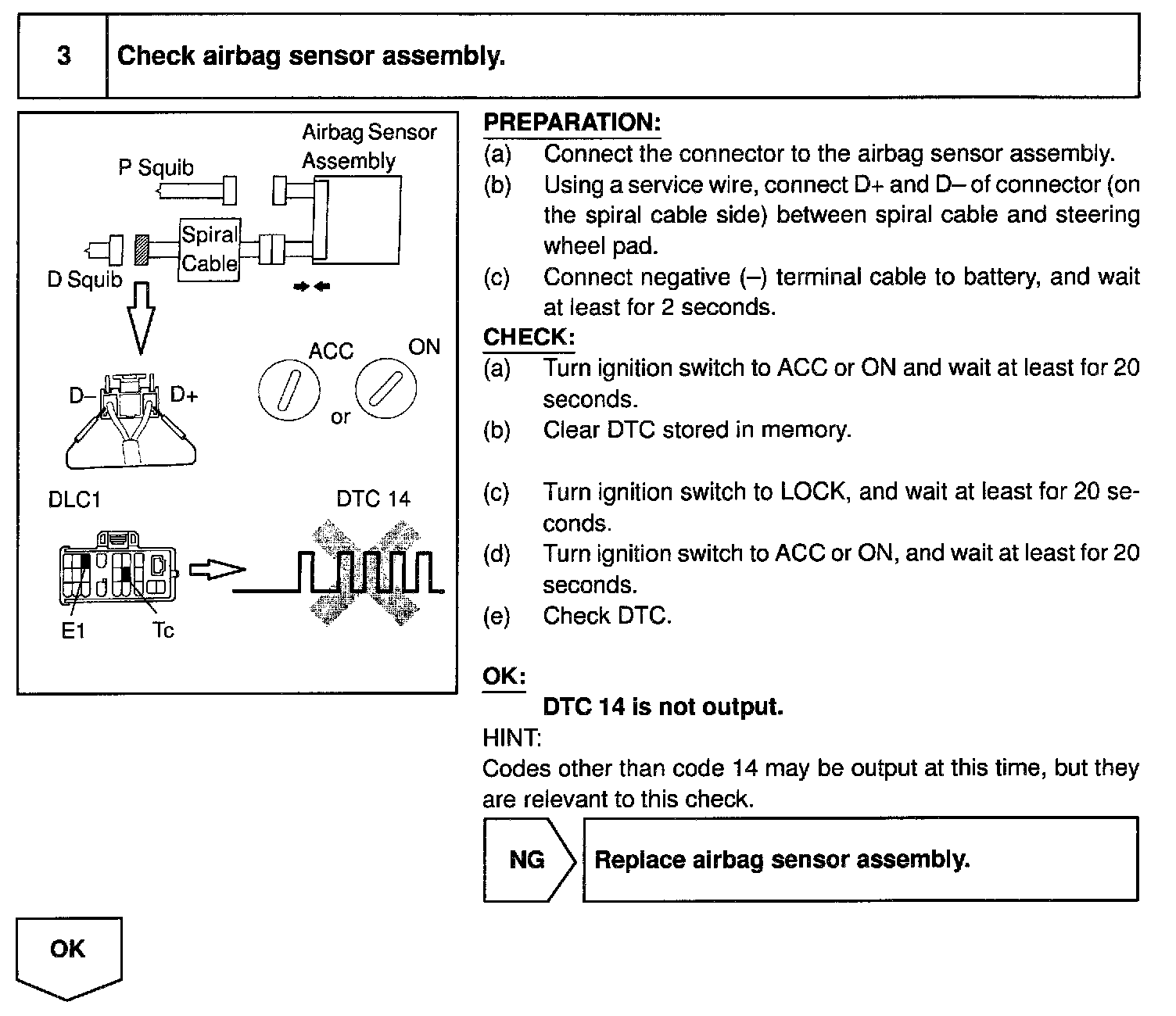

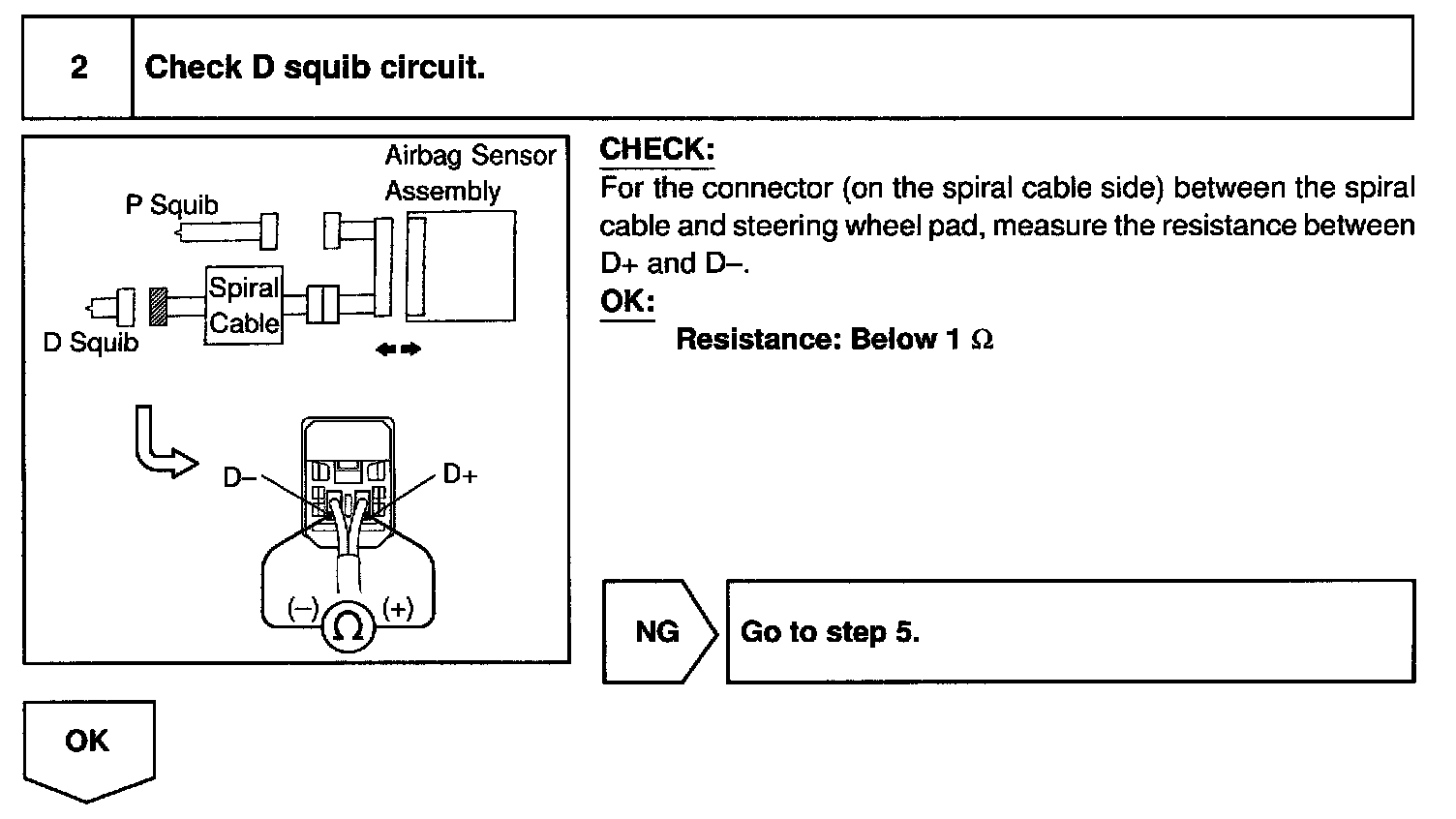

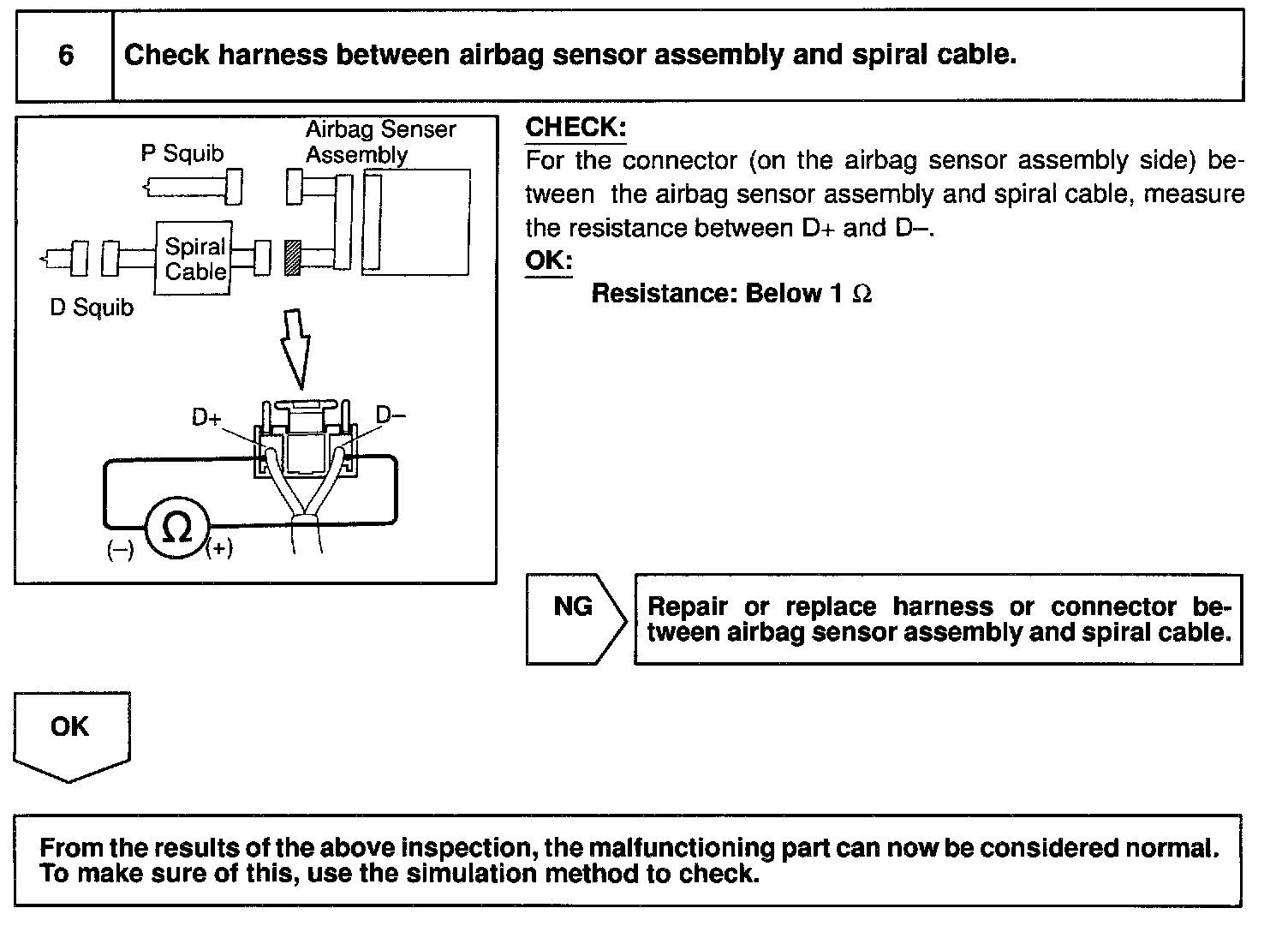

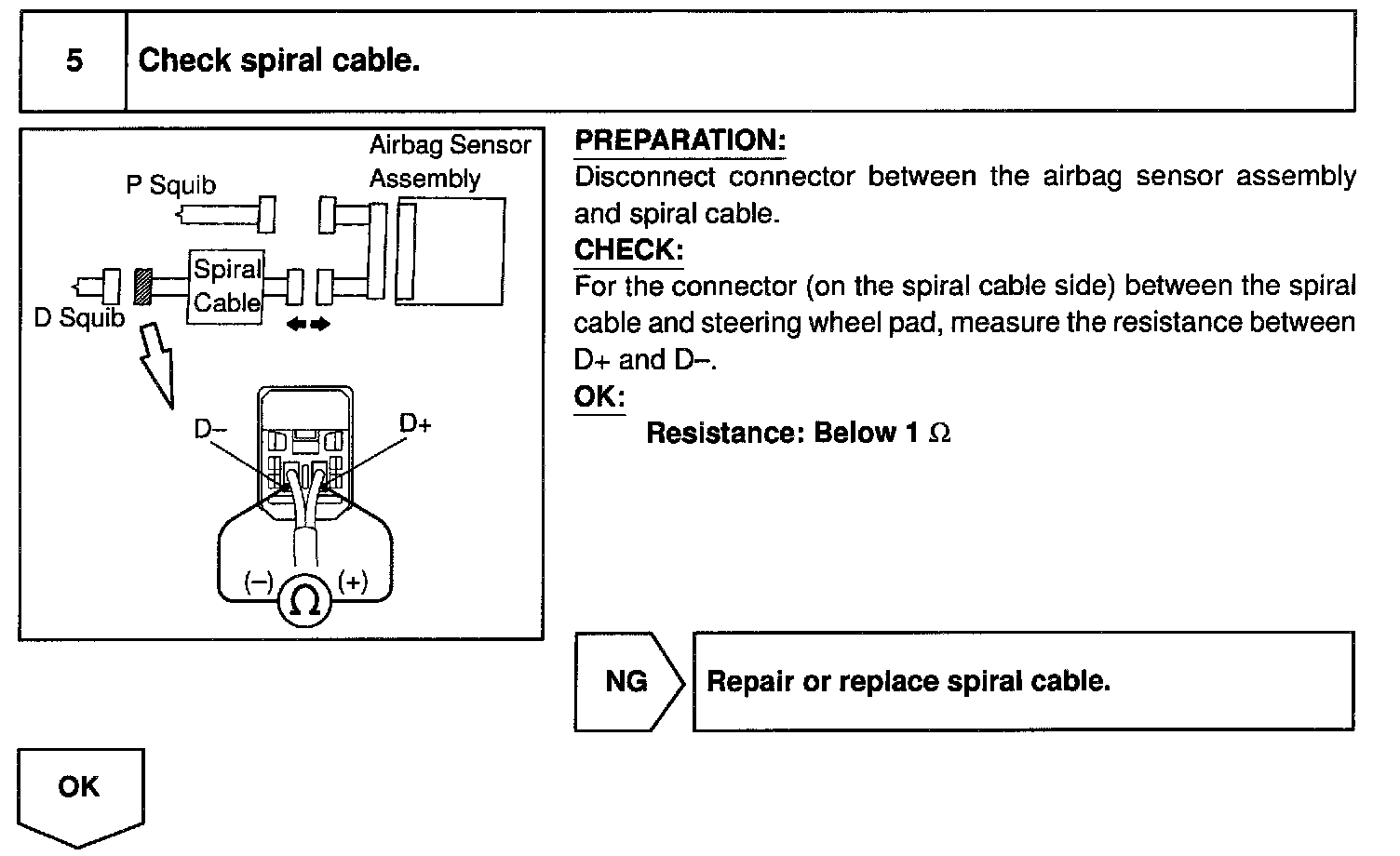

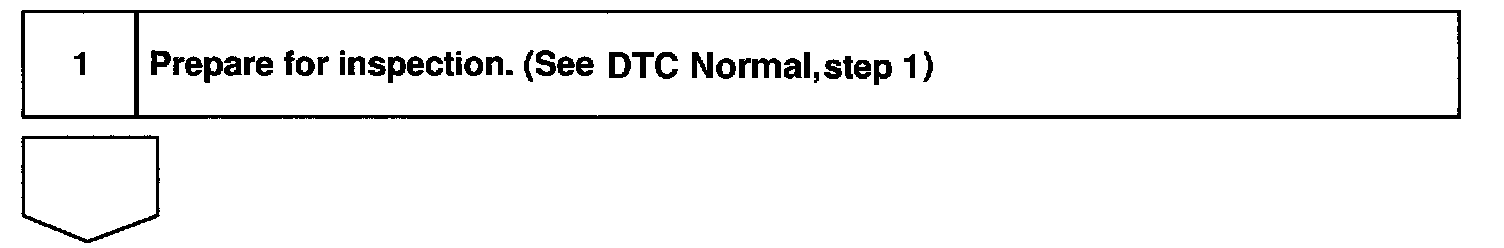

INSPECTION PROCEDURE
