DTC 51
CIRCUIT DESCRIPTION

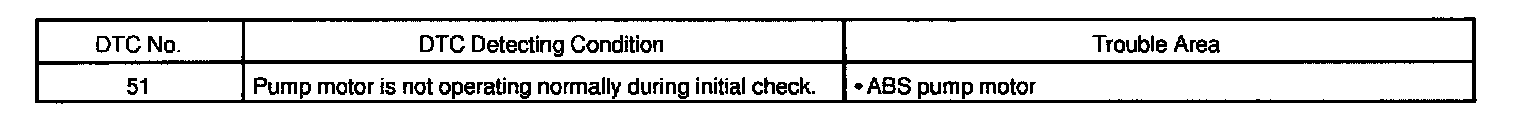

DETECTING CONDITIONS

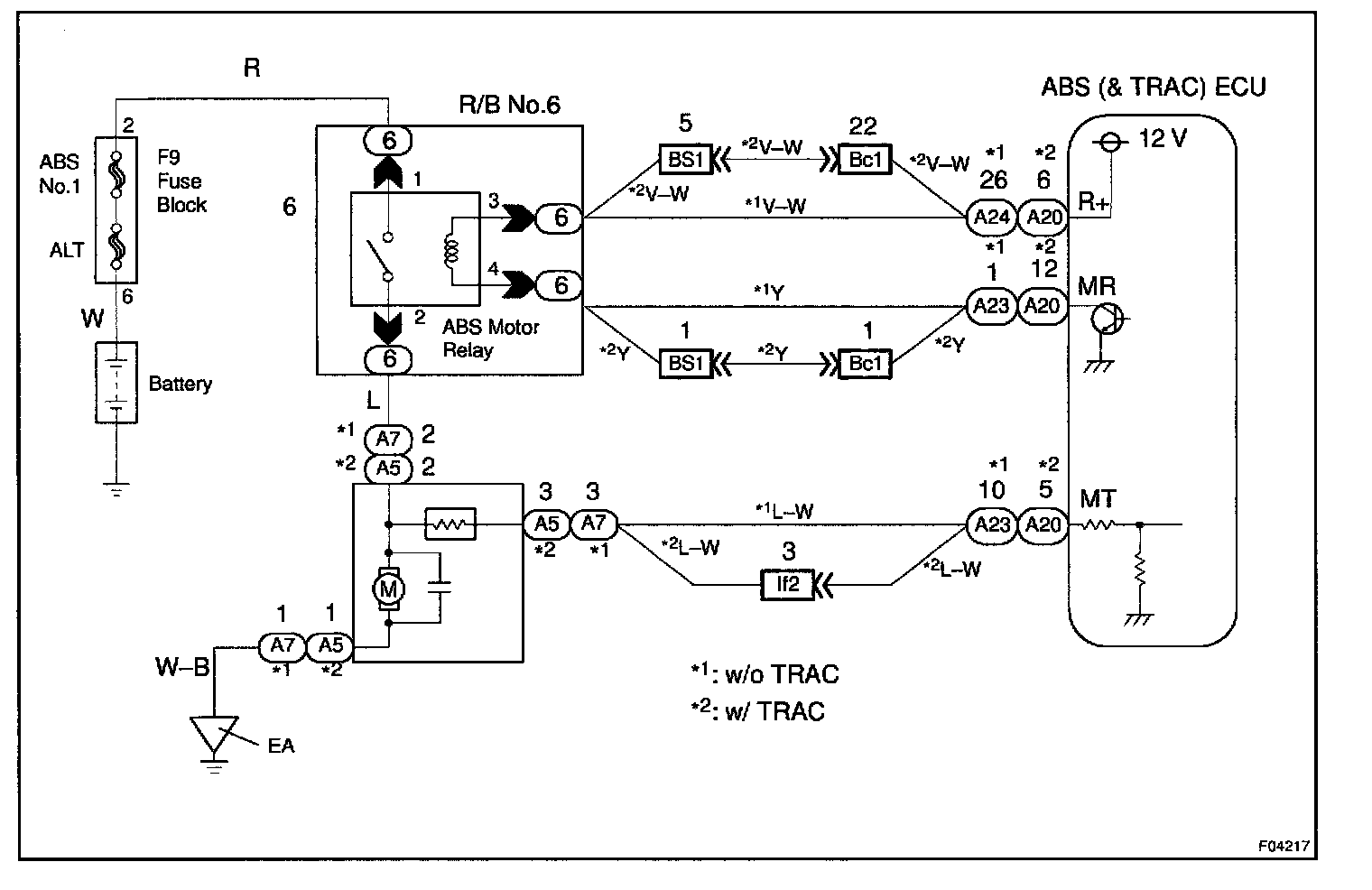

WIRING DIAGRAM
Fail Safe Function:
If trouble occurs in the ABS pump motor, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.

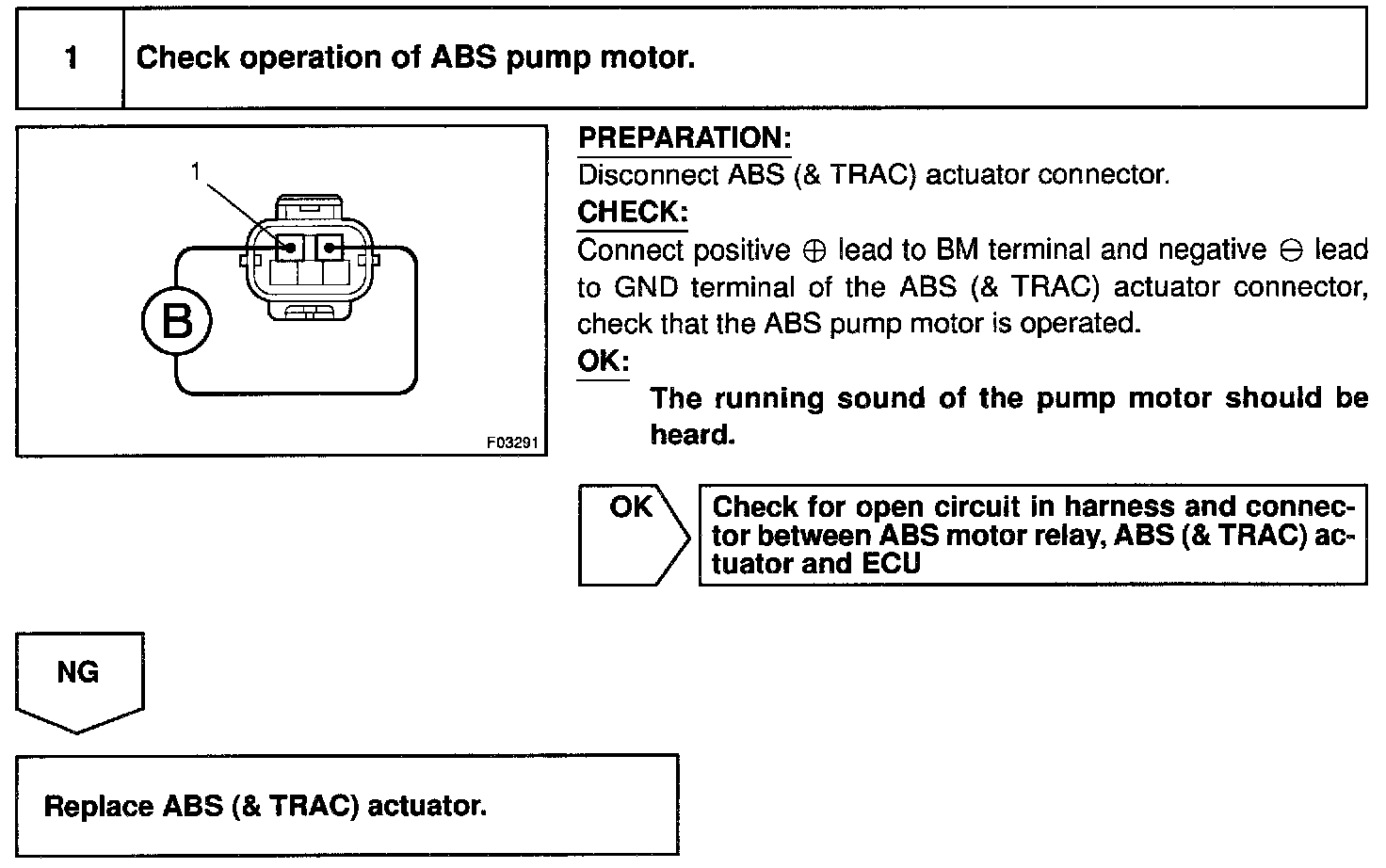

Step 1:
INSPECTION PROCEDURE
DETECTING CONDITIONS
WIRING DIAGRAM
Fail Safe Function:
If trouble occurs in the ABS pump motor, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.
INSPECTION PROCEDURE
