Manufacturer Controlled Trouble Codes

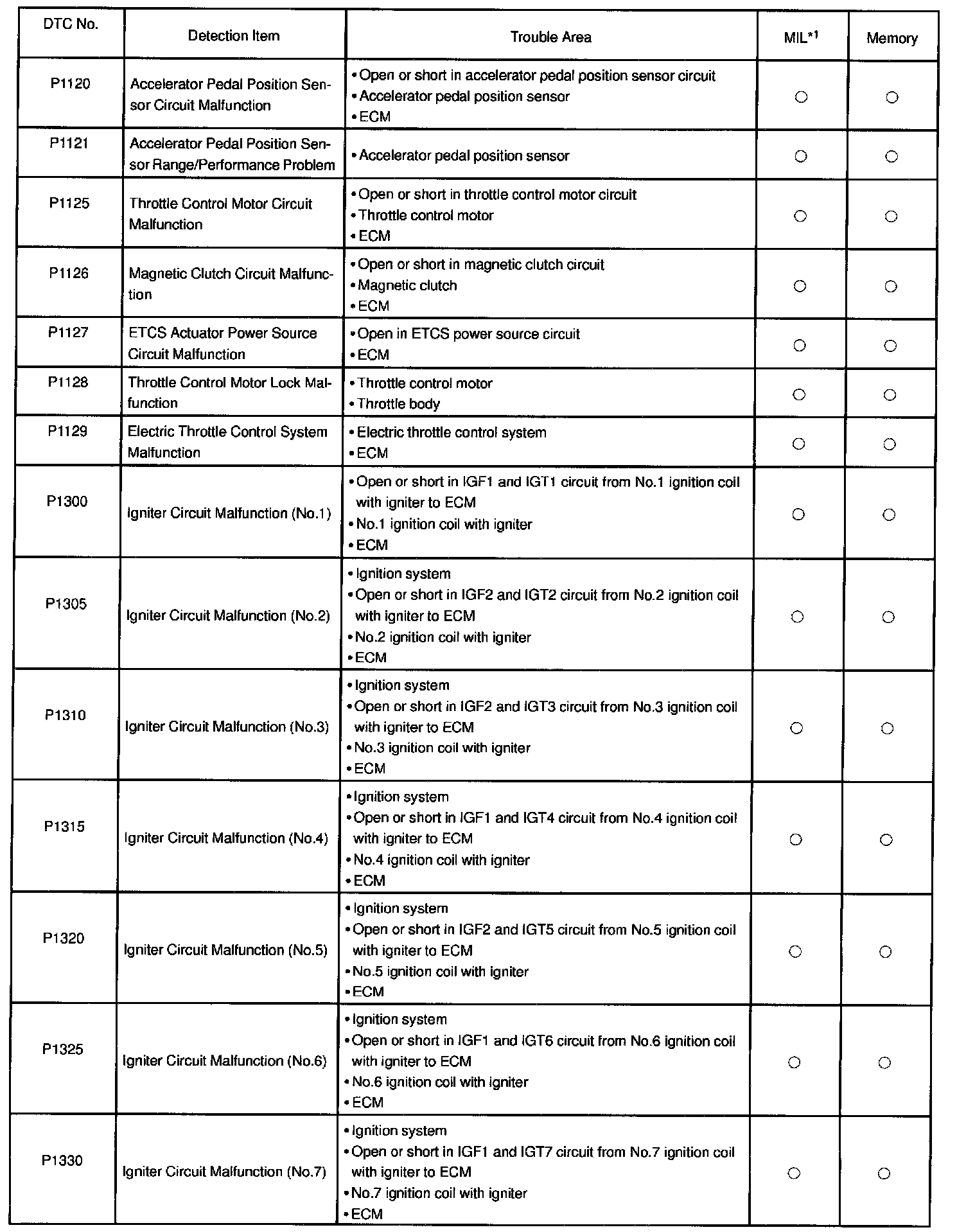

P1120 - P1330:

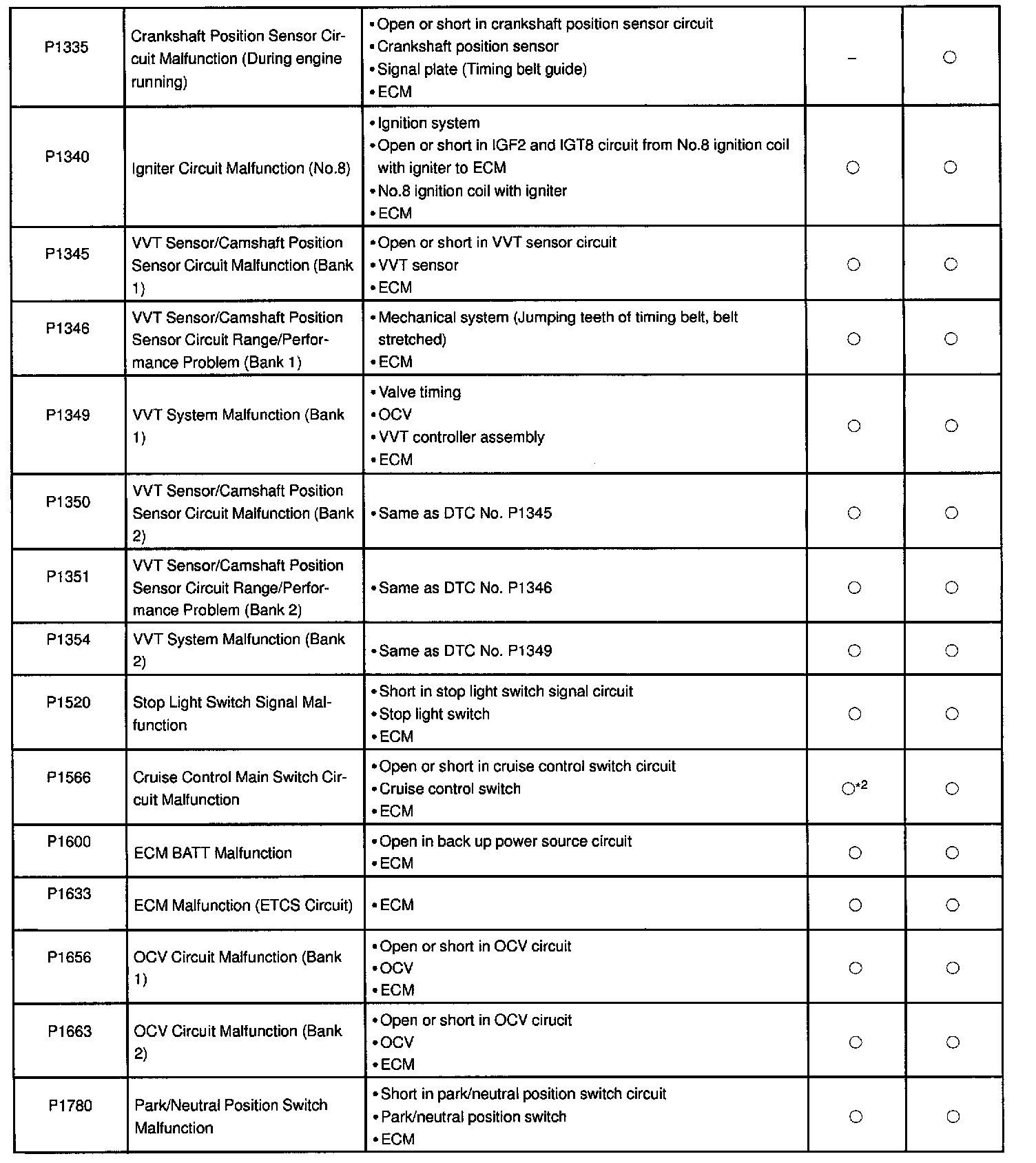

P1335 - P1780:

*1: -... MIL does not light up.
O... MIL lights up.
*2: PI lights up


HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the table. For details of each code refer to the respective "DTC No." in the DTC chart.
