Automatic Transmission System

P0500 - P1780:

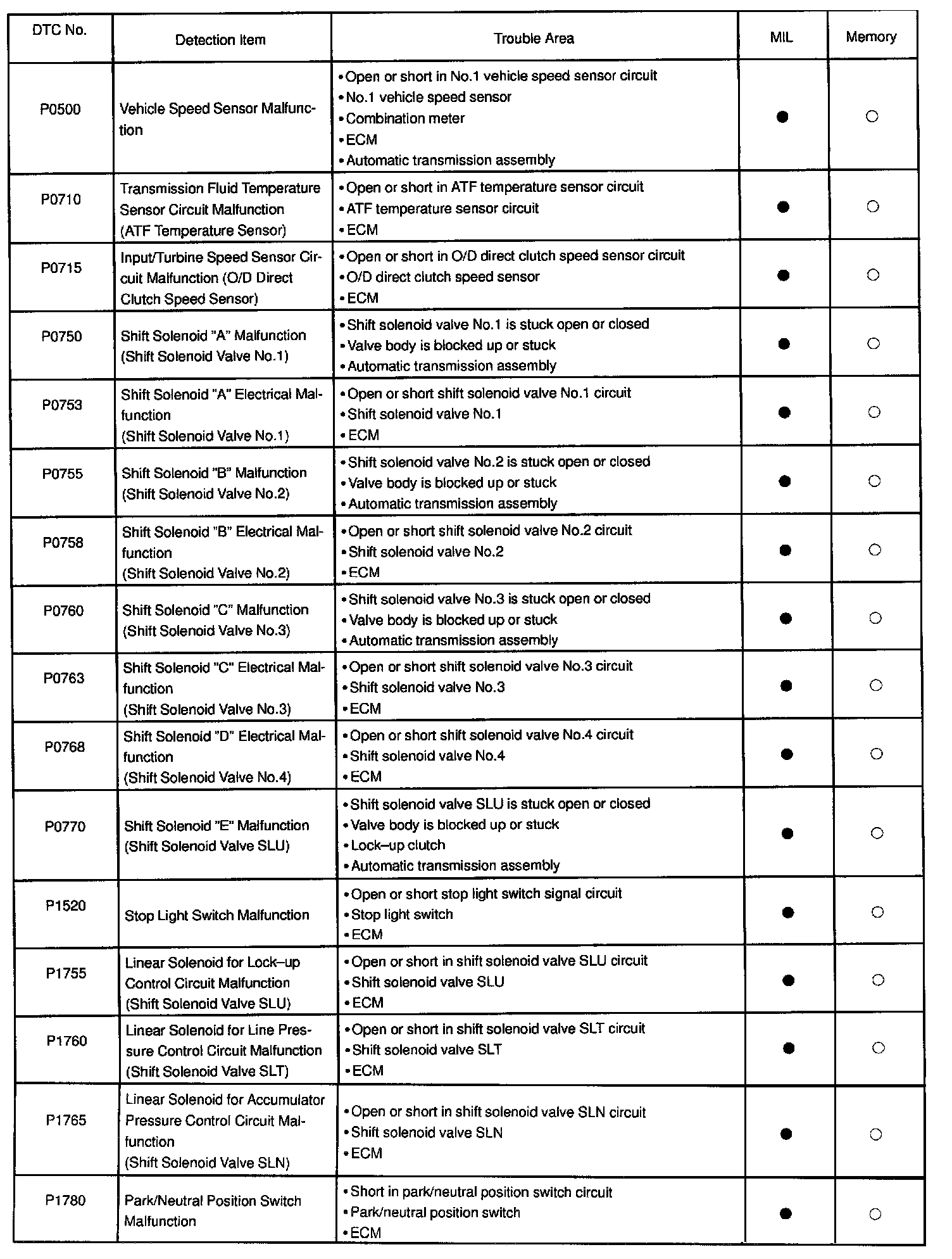

If a DTC is displayed during the DTC check, check the circuit listed in the table and proceed.

HINT: This DTC maybe output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
