ABS W/Traction Control (TRAC)

43 - 53:

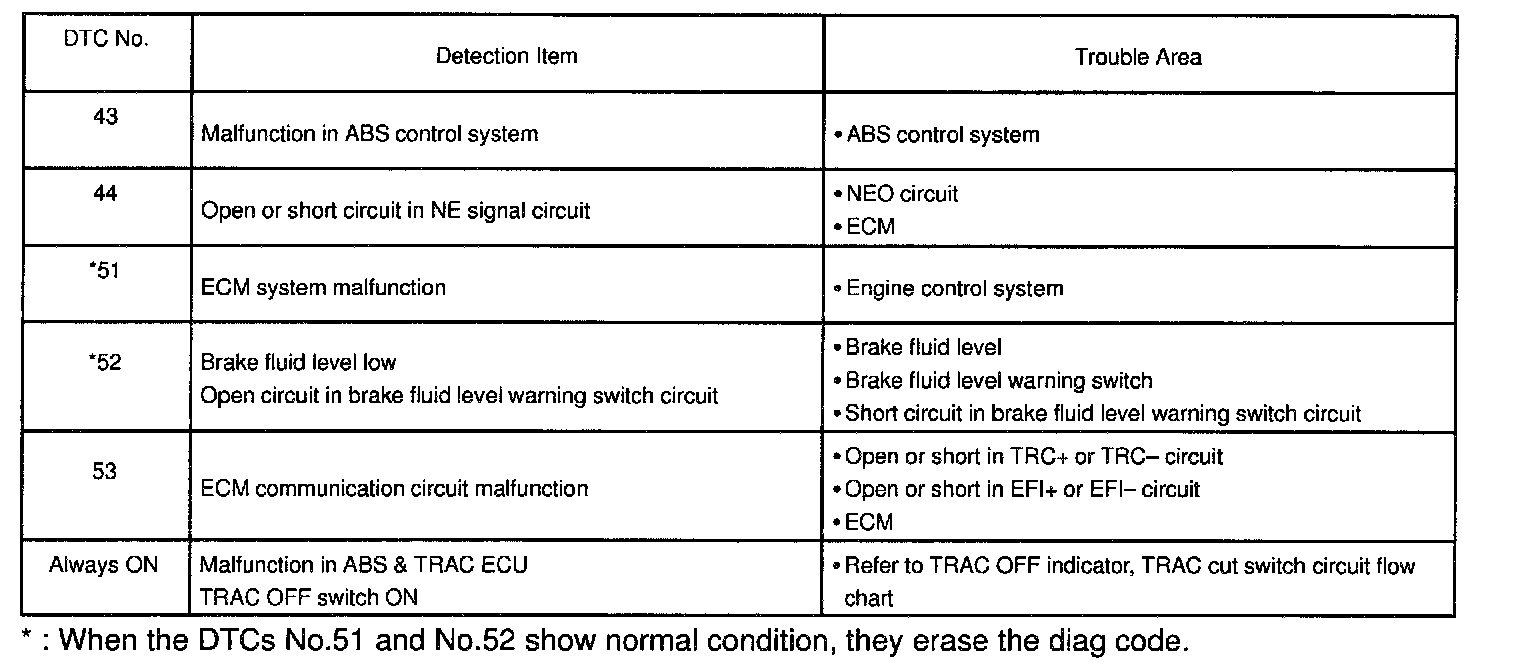

DIAGNOSTIC TROUBLE CODE CHART

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, turn to the respective "DTC No." in the DTC chart.

HINT: There is a case that LEXUS hand-held tester cannot be used when TRAC warning indicator is always ON.
