Seals and Gaskets: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE PROPELLER SHAFT





2. REMOVE REAR OIL SEAL

NOTICE: Clean the extension housing before removing the oil seal.

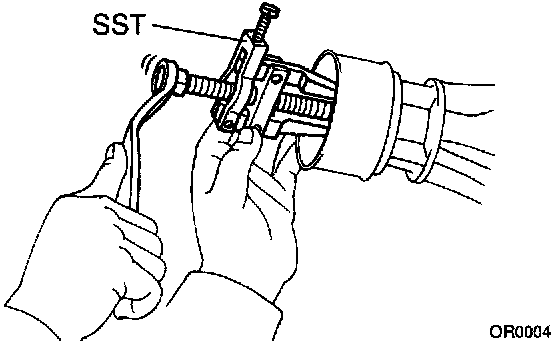

Using SST, remove the oil seal.
SST 09308-10010





3. INSTALL NEW OIL SEAL

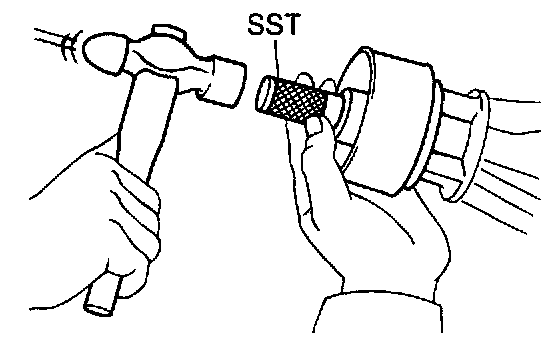

a. Using SST and a hammer, carefully drive the oil seal in as far as it will go.
SST 09325-40010
b. Coat the lip of a new oil seal with MP grease.
4. INSTALL PROPELLER SHAFT
5. FILL ATF AND CHECK FLUID LEVEL
