Removal and Installation

REMOVAL





1. REMOVE DRIVE BELT

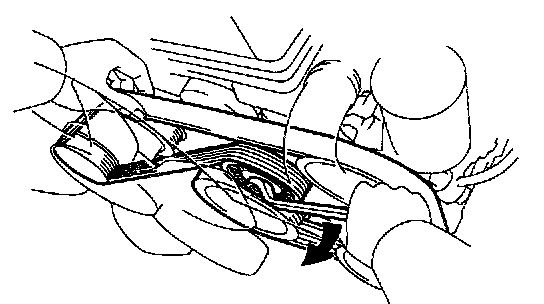

Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.





2. DISCONNECT RETURN HOSE

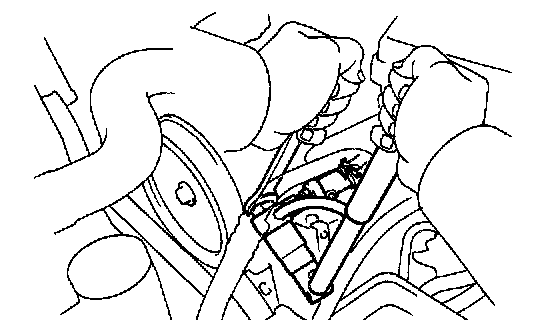

Remove the clip.

NOTICE: Take care not to spill fluid on the A/C compressor rotor.

3. REMOVE PRESSURE FEED TUBE

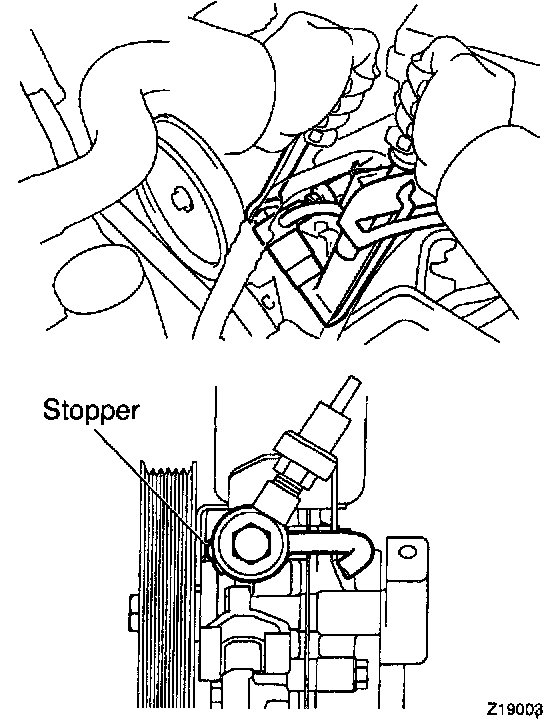

Using a spanner (24 mm) to hold the pressure port union, re move the union bolt and gasket.
4. REMOVE PS VANE PUMP ASSEMBLY
Remove the 2 bolts.

INSTALLATION





1. INSTALL PS VANE PUMP ASSEMBLY
Torque the 2 bolts.
Torque:
28 mm bolt: 39 Nm (400 kgf-cm, 29 ft. lbs.)
45 mm bolt: 58 Nm (590 kgf-cm, 43 ft. lbs.)
3. CONNECT PRESSURE FEED TUBE





4. INSTALL DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner clockwise, and install the belt.
5. BLEED POWER STEERING SYSTEM.
Power Steering System Bleeding
