Removal and Installation

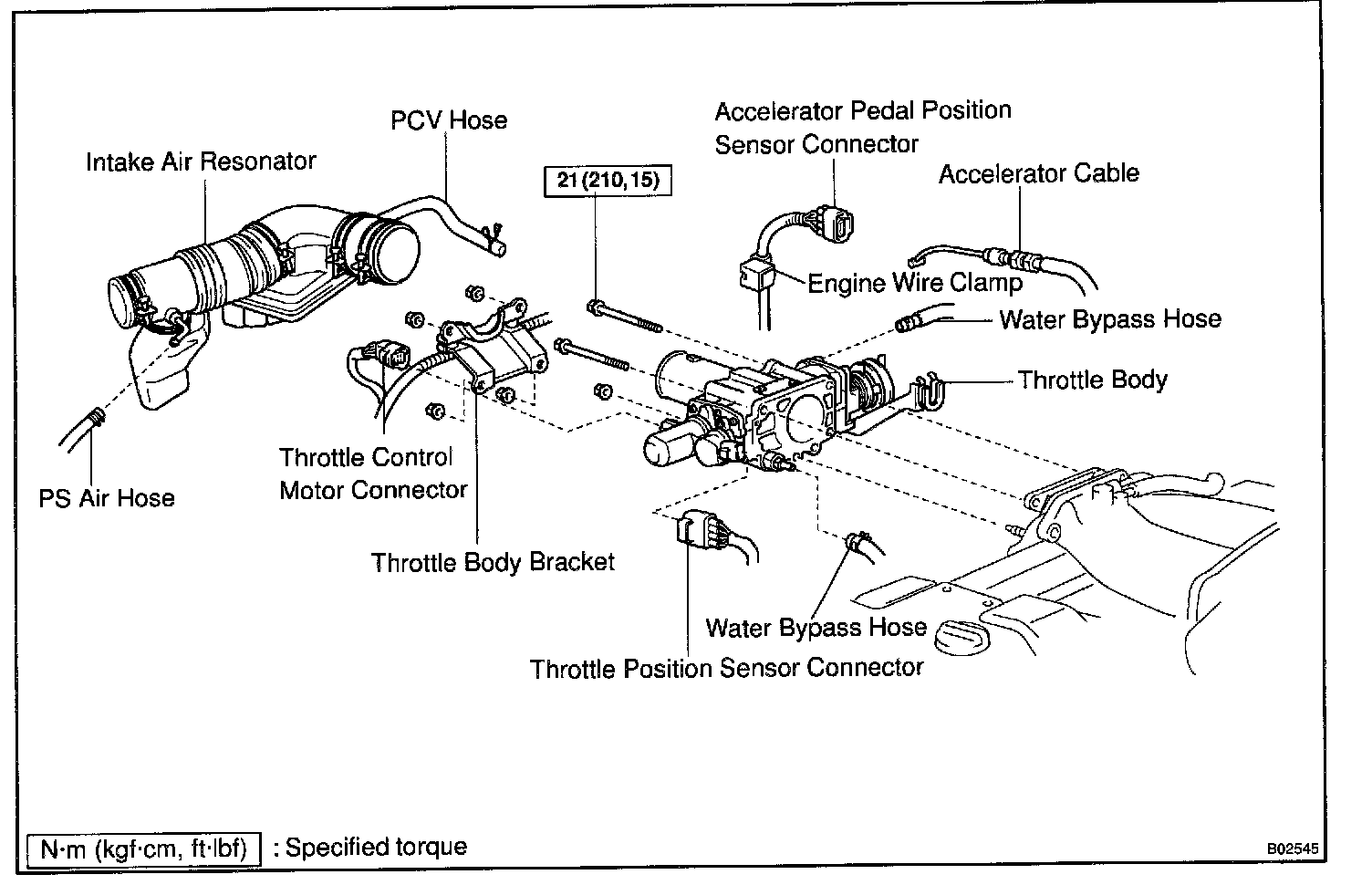

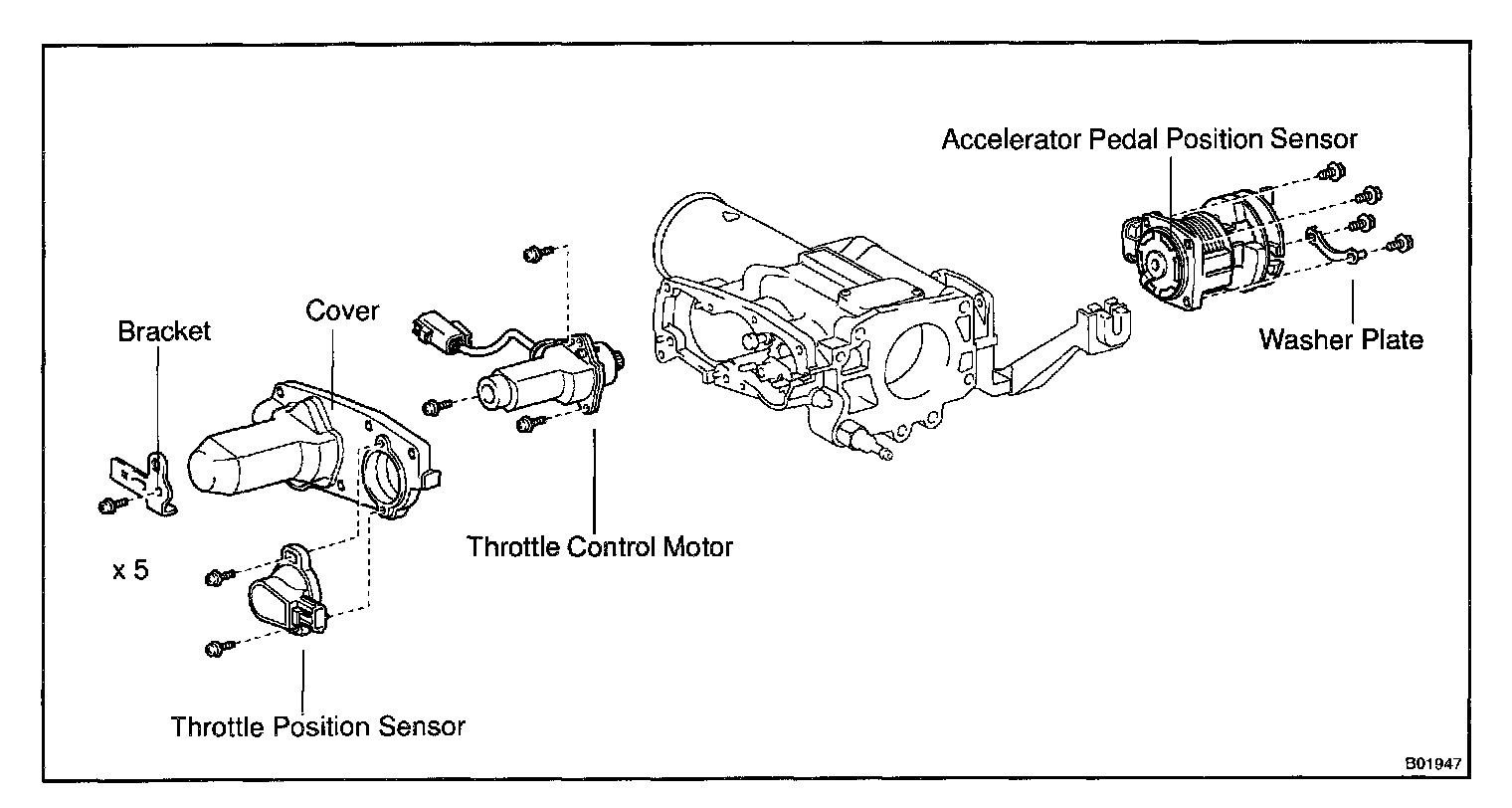

COMPONENTS

REMOVAL

1. DRAIN ENGINE COOLANT
2. REMOVE INTAKE AIR CONNECTOR PIPE

3. REMOVE THROTTLE BODY BRACKET AND THROTTLE BODY
a. Disconnect the accelerator cable.

b. Disconnect these connectors and clamp:
- Throttle position sensor connector
- Throttle control motor connector
- Accelerator pedal position sensor connector
- Engine wire clamp from clamp bracket of throttle body

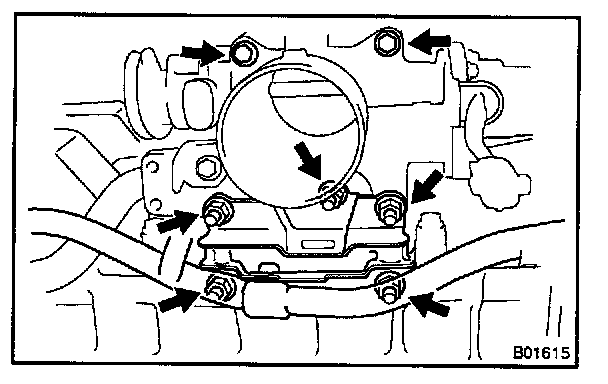

c. Remove the 2 bolts and nut holding the throttle body to the intake air connector.

Torque: 21 Nm (210 kg.cm, 15 ft.lb)

d. Remove the 4 nuts and throttle body bracket.

Torque: 21 Nm (210 kg.cm, 15 ft.lb)

e. Slightly slide the throttle body away from the intake air connector.

NOTE: When putting up the throttle body, do not hold the motor part.

f. Disconnect the 2 water bypass hoses from the throttle body, and remove the throttle body.

HINT:
- At the time of installation, please refer to the following items.
- Connect the water bypass hose with its discrimination mark downward.




- Install the with its craw direction for (1) forward and downside diagonal (engine side about 45 °) for (2).

INSTALLATION
Installation is in the reverse order of removal
