Brake Pedal Assy: Testing and Inspection

ON-VEHICLE INSPECTION

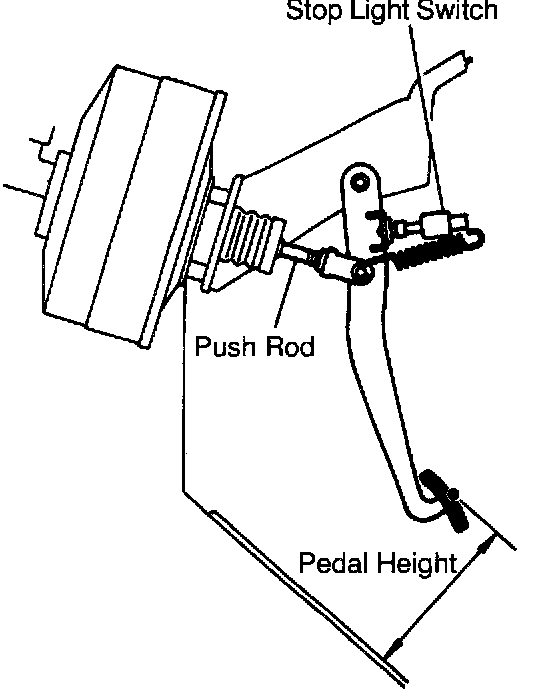

1. CHECK PEDAL HEIGHT
Pedal height from asphalt sheet: 150.4 - 160.4 mm (5.921 - 6.315 inch)
2. IF NECESSARY, ADJUST PEDAL HEIGHT
a. Remove the No. I under cover, No. 1 lower finish panel and lower finish panel LH.
b. Disconnect the connector from the stop light switch.
c. Loosen the stop light switch lock nut and remove the stop light switch.
d. Loosen the push rod lock nut.
e. Adjust the pedal height by turning the pedal push rod.
f. Tighten the push rod lock nut.
Torque: 25 Nm (260 kgf-cm, 19 ft. lbs.)
g. Install the stop light switch and turn it until it slightly contacts the pedal stopper.
h. Push in the brake pedal 5 - 15 mm (0.20 - 0.59 inch), turn the stop light switch to lock the nut in a position where the stop light goes off.
i. Connect the connector to the stop light switch.
j. After installation, push in the brake pedal 5 - 15 mm (0.20 - 0.59 inch), check that stop light lights up.
k. After adjusting the pedal height, check the pedal freeplay.
l. Install the lower finish panel LH, No. 1 lower finish panel and No. 1 under cover.





3. CHECK PEDAL FREEPLAY
a. Stop engine and depress brake pedal several times until there is no more vacuum left in the booster.

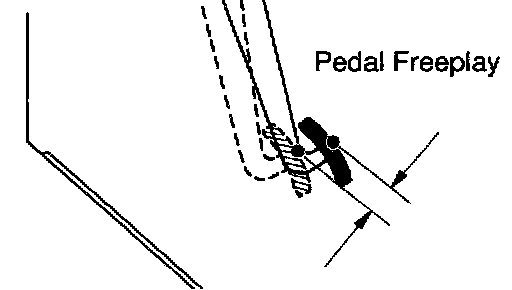

b. Push in the pedal by hand until the second point of resistance begins to be felt, then measure the distance, as shown.
Pedal freeplay: 1 - 6 mm (0.04 - 0.24 inch)
If incorrect, check the stop light switch clearance. If the clearance is OK, then troubleshoot the brake system.
Stop light switch clearance: 0.5 - 2.4 mm (0.020 - 0.094 inch)

HINT: The freeplay to the first point of resistance is due to the play between the clevis and pin. It is 1 - 3 mm (0.04 - 0.12 inch) on the pedal.





4. CHECK PEDAL RESERVE DISTANCE
Release the parking brake lever.

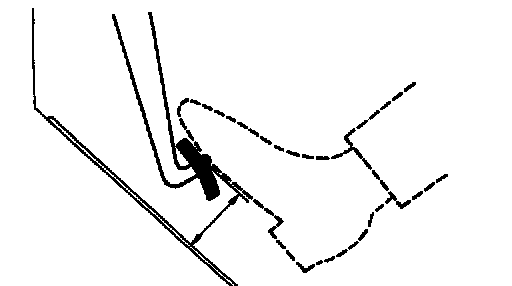

With the engine running, depress the pedal and measure the pedal reserve distance, as shown.
Pedal reserve distance from asphalt sheet at 490 N (50 kg-ft, 110.2 lbs.): More than 89 mm (3.50 inch)
If the reserve distance is incorrect, troubleshoot the brake system.
