Fuel Door: Adjustments

ADJUSTMENT






HINT: At the time of installation, please refer to the following item.
When installing the fuel filler opening lid, adjust it.




ADJUST FUEL FILLER OPENING LID

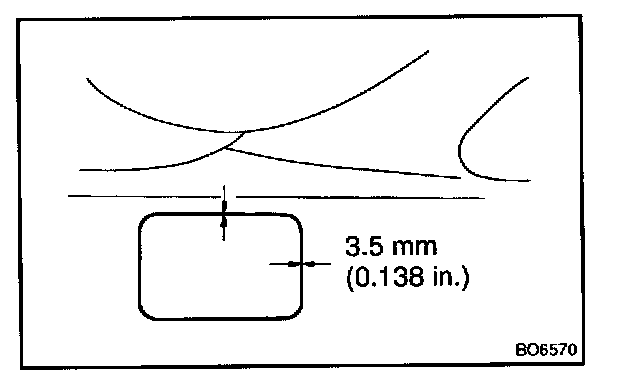

Loosen the 2 screws and adjust the lid as shown.
