Windshield Washer Spray Nozzle: Testing and Inspection
INSPECTIONINSPECT WINDOW WASHER NOZZLE

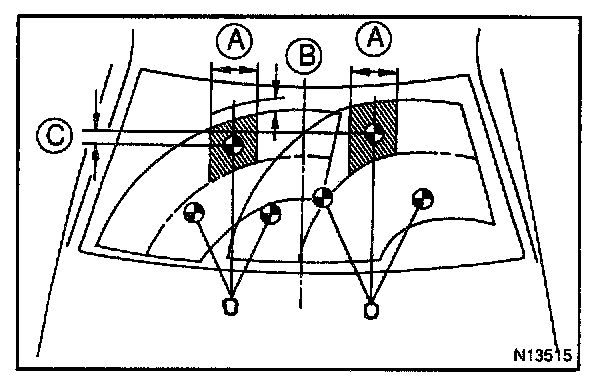

a. While operating the washer, check whether the point where the washer fluid hits the windshield glass and the up surge area are within the range indicated by the hatched line.
A: Approx. 150 mm (5.91 in.)
B: Approx. 50 mm (1.99 in.)
C: Approx. 0 ± 50 mm (0 ± 1.99 in.)
b. Check that the lower point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass which is wiped by the wiper blades).
