Back Window Glass: Service and Repair
REMOVAL1. REMOVE REAR SEAT CUSHION
2. REMOVE REAR SEAT BELT FLOOR ANCHORS
3. REMOVE REAR SEATBACK
4. REMOVE REAR DOOR SCUFF PLATE
5. REMOVE REAR SEAT SIDE GARNISHES
6. REMOVE SPEAKER GRILLE

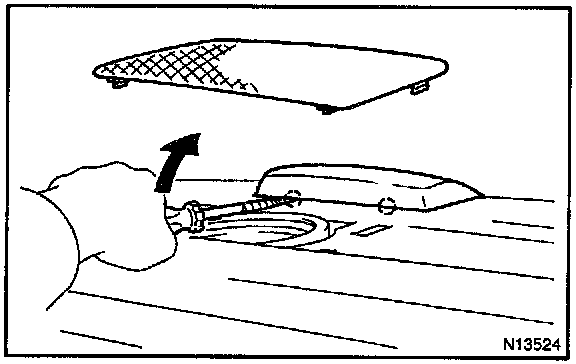

7. REMOVE HIGH-MOUNTED STOP LIGHT
8. CANADA:
REMOVE CRS TETHER ANCHOR COVERS AND TETHER ANCHOR BRACKETS
9. REMOVE PACKAGE TRAY TRIM
10. REMOVE ASSIST GRIPS
11. REMOVE REAR PERSONAL LIGHT
a. Remove the screw.

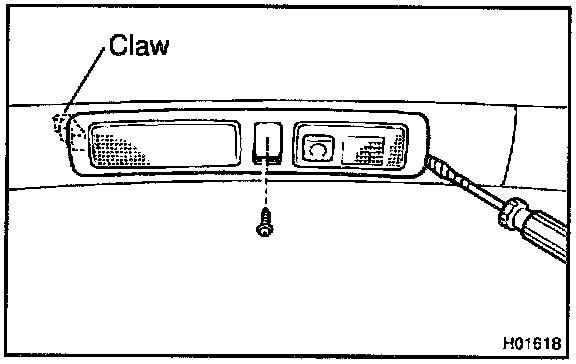

b. Using a screwdriver, remove the light as shown in the illustration.
HINT: Tape the screwdriver tip before use.
c. Disconnect the connector.
d. Employ the same manner described above to the other side.
12. REMOVE SPOT LIGHT

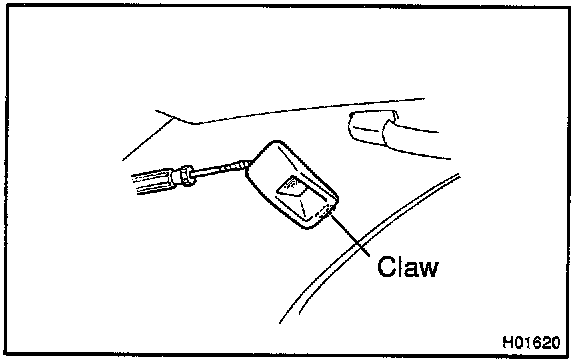

a. Using a screwdriver, remove the light as shown in the illustration.
HINT: Tape the screwdriver tip before use.
b. Disconnect the connector.
c. Employ the same manner described above to the other side.
13. REMOVE ROOF SIDE INNER GARNISH
a. Remove the roof side inner garnish.
NOTE: Paying enough attention remove the clip on the roof side inner garnish shown in the illustration. Otherwise, the roof side inner garnish or the front pillar garnish might be broken.
b. Employ the same manner described above to the other side.
14. REMOVE ROOF HEADLINING
Remove the rear side of roof headlining.
15. REMOVE LOWER MOULDING

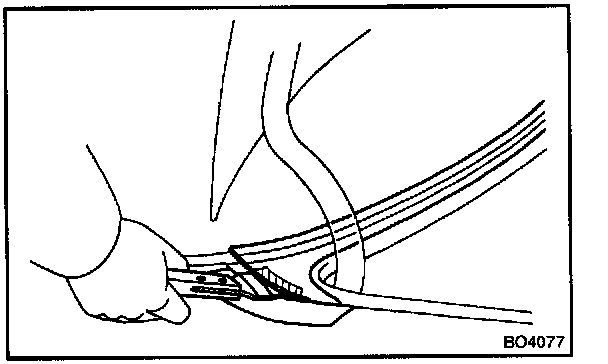

a. Using a scraper, cut loose the double-sided tape on both sides of the moulding as shown.
HINT: Tape the scraper tip before use.

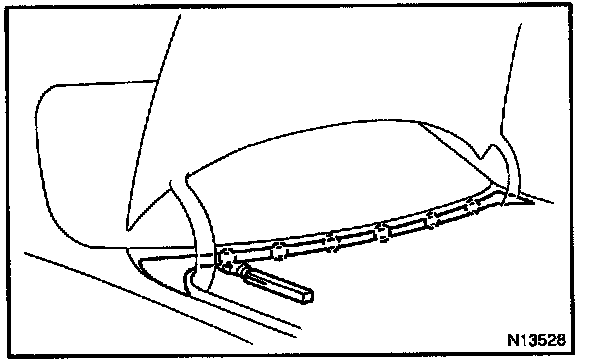

b. Using a scraper, pry off the moulding from the 6 clips and remove the moulding.
16. REMOVE BACK WINDOW GLASS
a. Disconnect the connectors.

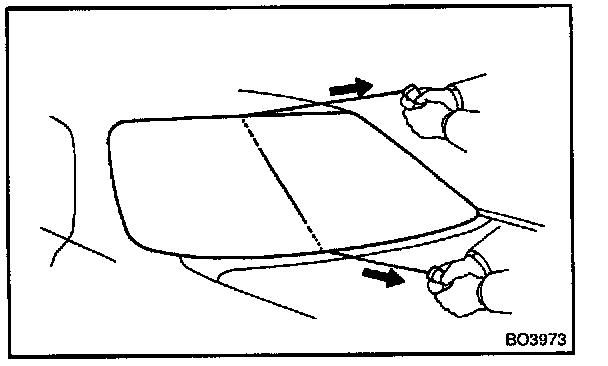

b. Push the piano wire through between the body and glass from the interior.
c. Tie both wire ends to a wooden block.
HINT: Apply adhesive tape to the outer surface to keep the surface from being scratched.
d. Cut the adhesive by pulling the piano wire around it.

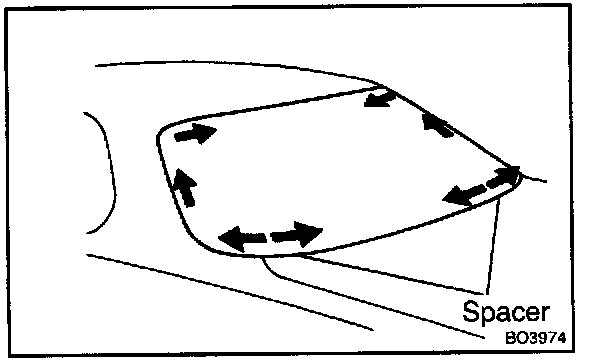

NOTE: Do not damage the 2 spacers with the wire.
e. Remove the glass.
17. REMOVE BACK WINDOW MOULDING
INSTALLATION
HINT: Refer to the installation of windshield, install back window glass by the following operations.
1. INSTALL BACK WINDOW MOULDING

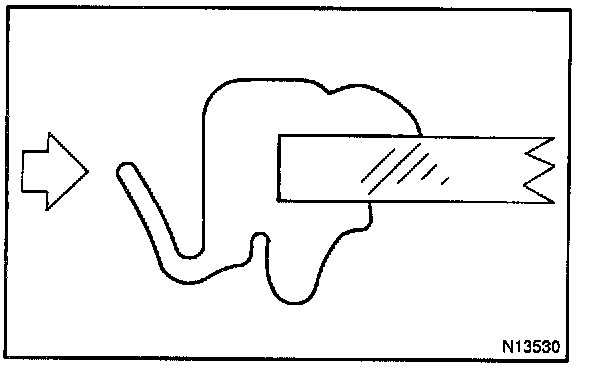

Place the moulding around and install it by hand.
HINT: Always remove the back window glass to install the moulding.
2. CLEAN AND SHAPE CONTACT SURFACE OF BODY
3. REPLACE STOPPER
4. CLEAN REMOVED GLASS
5. POSITION GLASS
6. CLEAN CONTACT SURFACE OF GLASS
7. COAT CONTACT SURFACE OF BODY WITH PRIMER "M"

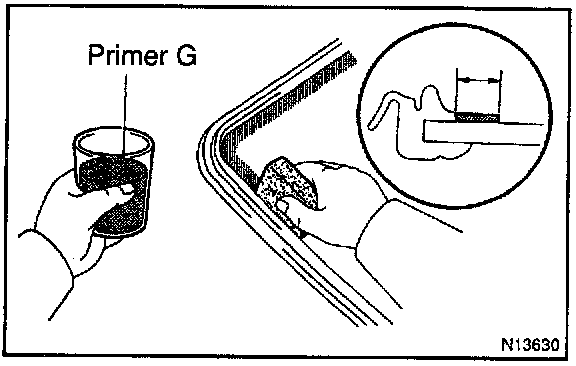

8. COAT CONTACT SURFACE OF GLASS WITH PRIMER "G"

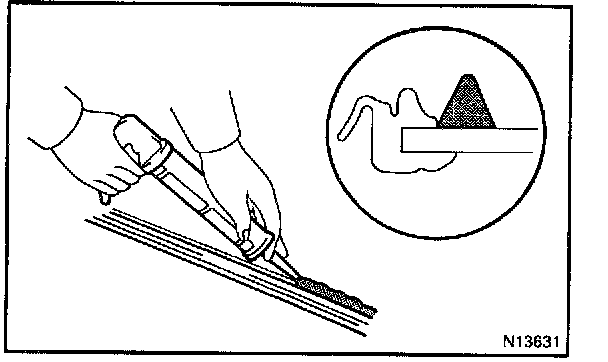

9. APPLY ADHESIVE

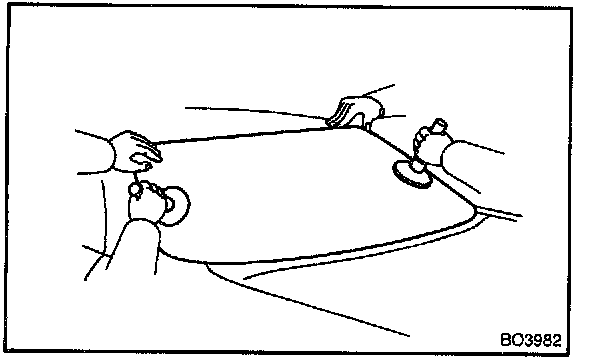

10. INSTALL GLASS
11. INSPECT FOR LEAK AND REPAIR
12. INSTALL BACK WINDOW OUTSIDE LOWER MOULDING
Place the moulding onto the body and tap it by hand.
13. CONNECT DEFOGGER WIRE CONNECTORS
14. INSTALL ROOF HEADLINING
15. INSTALL ROOF SIDE INNER GARNISHES
16. INSTALL SPOT LIGHTS
17. INSTALL REAR PERSONAL LIGHTS
18. INSTALL ASSIST GRIPS
19. INSTALL PACKAGE TRAY TRIM
20. CANADA:
INSTALL CRS TETHER ANCHOR COVERS AND TETHER ANCHOR BRACKETS
Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)
21. INSTALL HIGH-MOUNTED STOP LIGHT
22. INSTALL SPEAKER GRILLE
23. INSTALL REAR SEAT SIDE GARNISHES
24. INSTALL REAR DOOR SCUFF PLATES
25. INSTALL REAR SEATBACK
Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
26. INSTALL REAR SEAT BELT FLOOR ANCHORS
Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
27. INSTALL REAR SEAT CUSHION
