Differential Mount: Service and Repair

REPLACEMENT





1. REMOVE DIFFERENTIAL
2. REMOVE DIFFERENTIAL MOUNTING CUSHION

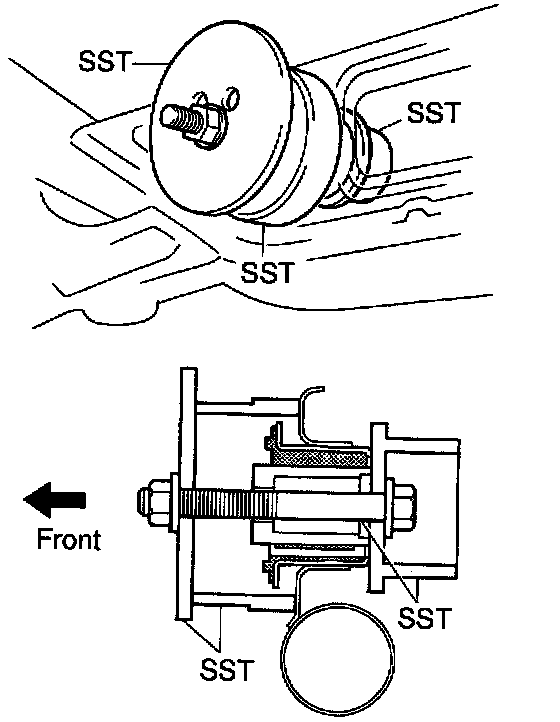

Using SST, remove the cushion.

HINT:
- Check that the edge of SST (09527-17011) is fully contact with the crossmember.
- Align the SST straight so that the bolt of the SST is on the center line of the cushion.

SST 09527-17011, 09570-22011, 09570-24010
3. INSTALL NEW DIFFERENTIAL MOUNTING CUSHION
a. Set a new differential mounting cushion to the crossmember.






HINT:
- Install the cushion with the flat face faced inside of the vehicle.

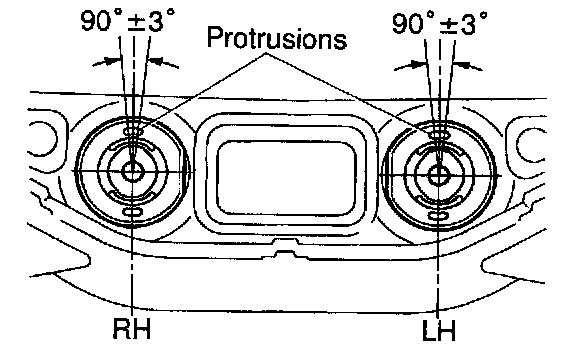

- Position the cushion so that the upper and lower protrusions align horizontally 90° ± 3° against the ground.

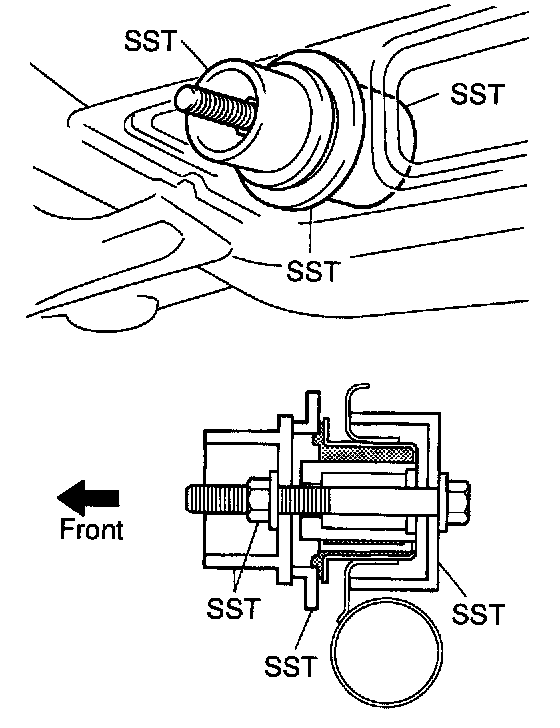

b. Using SST, install the cushion.
SST 09316-12010, 0957-22011

HINT: Align the SST straight so that the bolt of the SST is on the center line of the cushion.

4. INSTALL DIFFERENTIAL
