Without Scan Tool

Check the DTC.

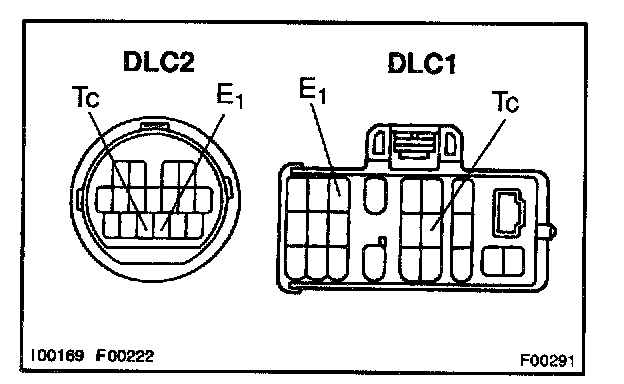

1. Using SST, connect terminals between Tc and E1 of DLC1 or DLC2.
SST 09843-18020
2. Turn ignition switch ON.

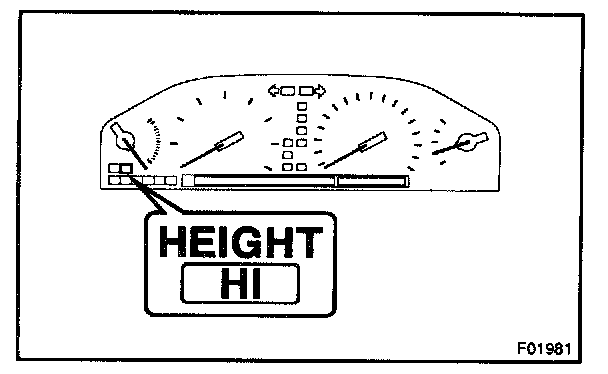

3. Read the DTC output by height control indicator light inside the meter.

HINT:
- When the engine is not starting, DTC "73" is output. This is not abnormal.
- When a DTC is not output, check the Tc terminal circuit.

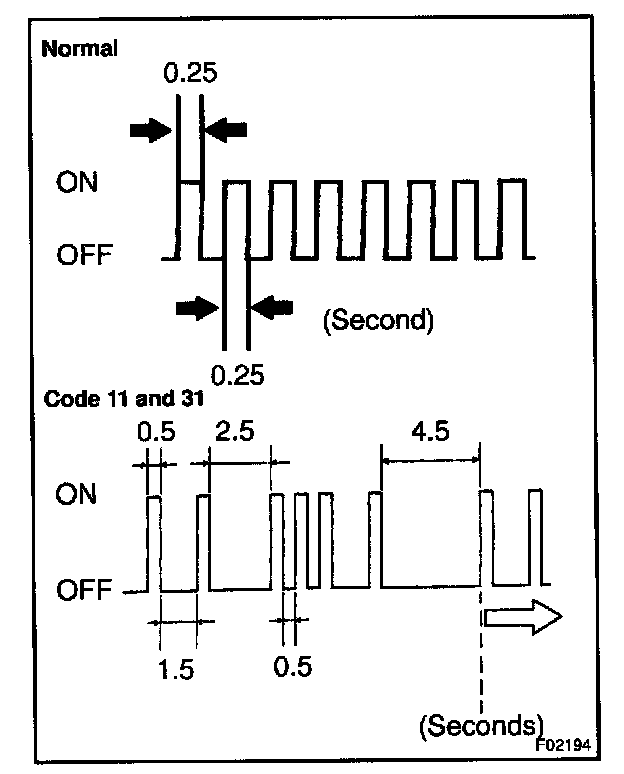

As an example, the blinking patterns for normal code, 11 and 31 are as shown on the illustration.

4. Check the malfunction using the code table.
5. After completing the check, disconnect terminals Tc and E1, and turn off the display.

HINT: In the event of 2 or more malfunction codes, indication will begin from the smaller numbered code and continue in order to the larger.
